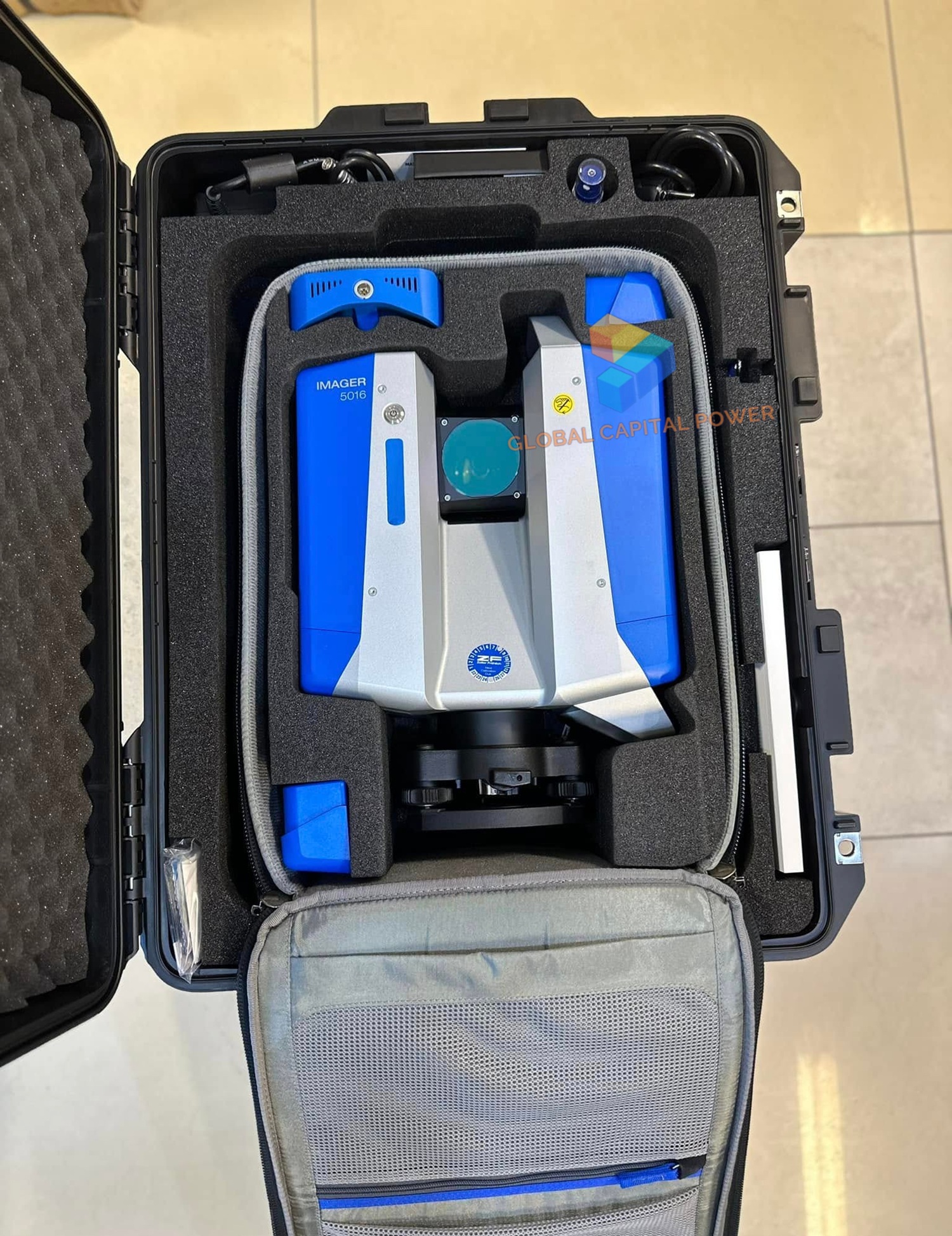

Z+F Imager 5016 3D Laser Scanner

Description

Z+F Imager 5016 3D Laser Scanner

Z+F Imager 5016 3D Laser Scanner combines compact and lightweight design with state-of-the-art laser scanning technology – allowing the user to reach new levels. The scanner comes with an integrated HDR camera including a LED spot as well as a positioning system for automatic registration in the fi eld.

Fast image capture

Recording color information is indispensable for many applications. The image acquisition (80MPixel) takes only 2 minutes with the Z + F IMAGER® 5016.

Integrated LED spots

The new HDR camera of the Z + F IMAGER® 5016 is equipped with LED spots which provides additional flexibility. No external light sources are required to take the pictures in a dark environment.

Internal memory and data transfer

The scanner has internal storage capacities of 128 GB. Data can be transferred quickly via the SD card slot, Ethernet connection or WiFi. The WiFi works according to the 802.11a / n / g standard and frequency range 2.4GHz / 5 GHz.

Complete Solution Including Training

Z+F Imager 5016A 3D laser scanner
Laser Control Office software
Laser Control Scout
2 Days’ training with Aptella

The terrestrial 3D laser scanner Z+F IMAGER 5016A combines compact and lightweight design with state-of-the-art 3D laser scanning surveyor technology – allowing the user to reach new levels.

Class leading precision measuring 2.187 million points per second
Absolute precision with optimised levelling via IMU integration
Best ever auto-registration accuracy with advanced navigation

HDR camera

Type: HDR, automatic, up to 11 exposures
Recording time: approx. 2 min, parallax free
Focus area: 1m – ∞
Panorama resolution: ca. 80 MPixel
Illumination system: integrated LED spotlights, 700 lm

Housing

Ergonomic streamline design
Additional grip with two handle
Makes setup with high tripods or overhead applications easy
Protection class IP 54, protection against splash water and dust
Operation temperature -10 °C … +45 °C (14°F … 113°F)
Visual feedback by illuminated power switch
Easily accessible plugs for external power supply or ethernet data exchange
