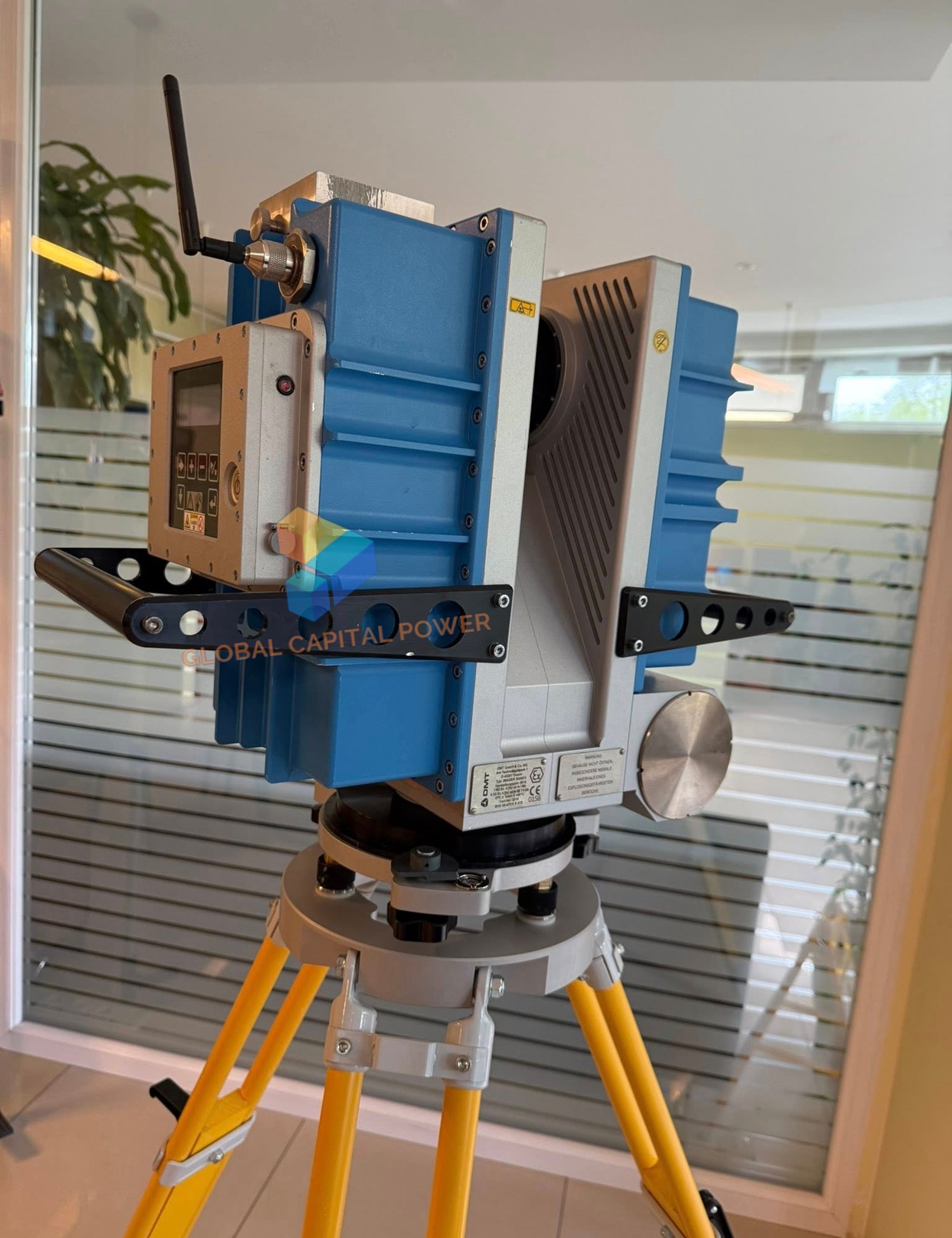

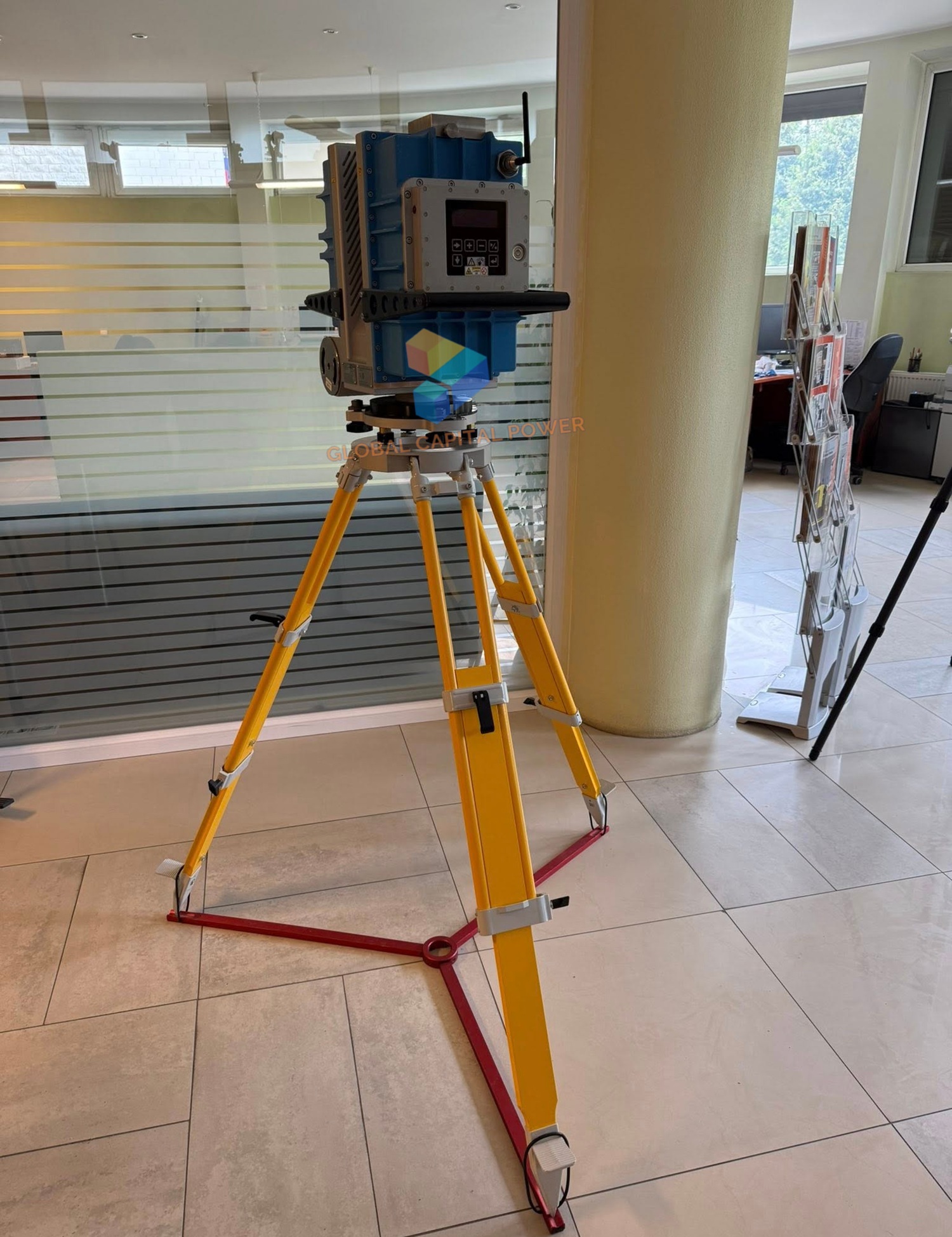

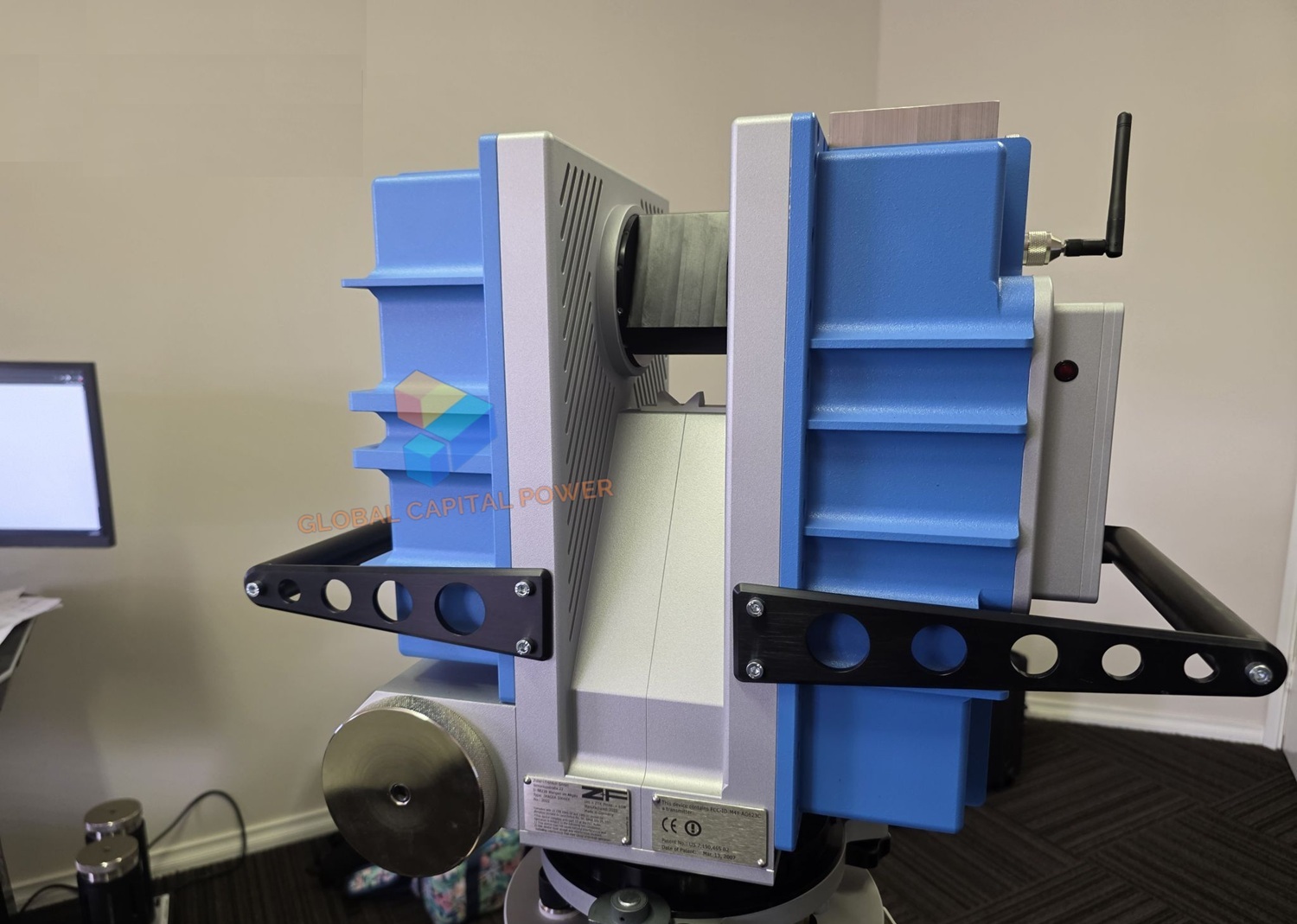

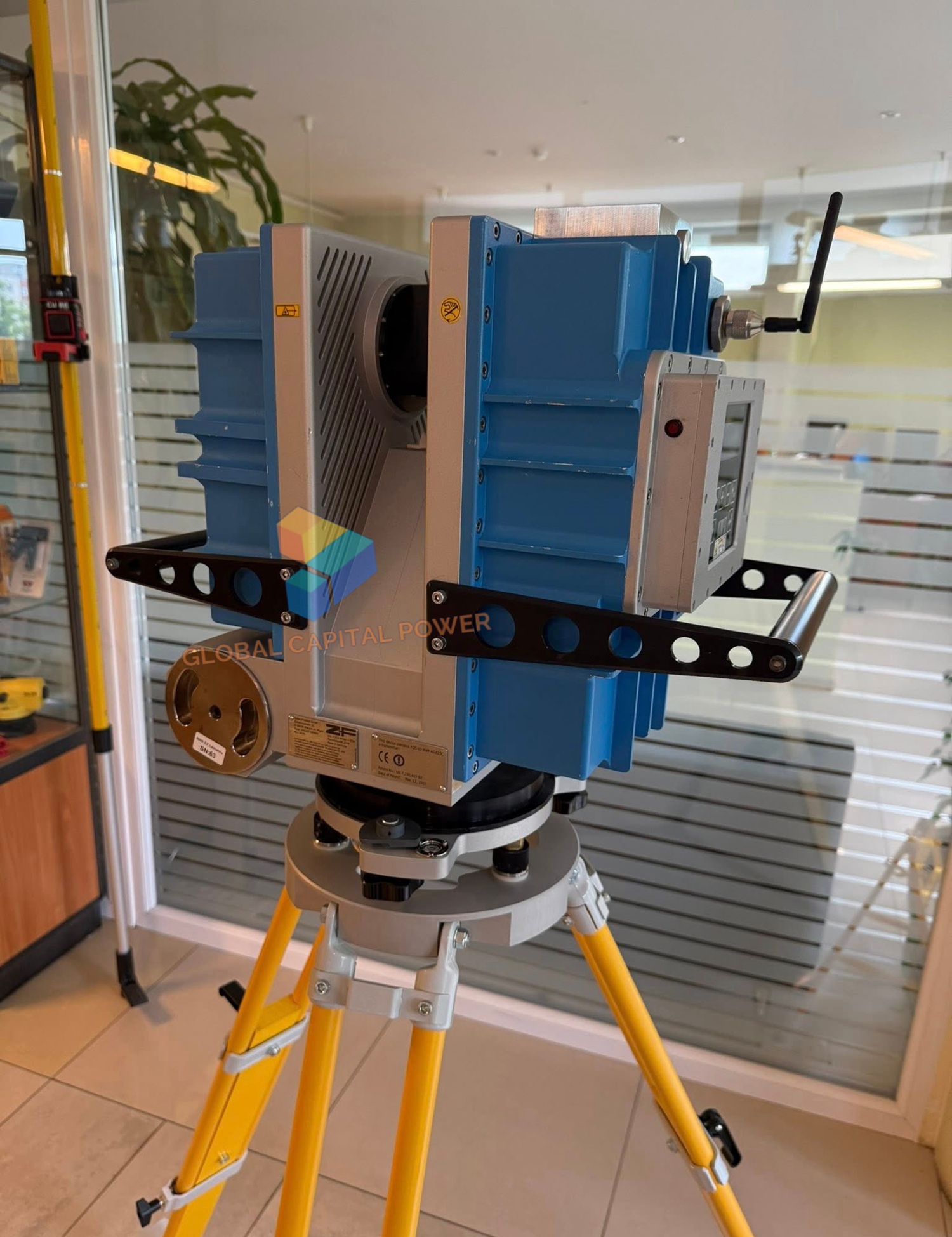

Z+F Imager 5006EX 3D Laser Scanner

Description

Z+F Imager 5006EX 3D Laser Scanner

Z+F Imager 5006EX 3D laser scanner is the world´s first ATEX approved 3D laser scanner for use in mining and industrial applications under explosive conditions. The Z+F IMAGER 5006EX is class I and class II approved according to ATEX directive 94 / 9 / EG. The ATEX directive 94 /9 / EG „ Equipment and protective systems intended for use in potentially explosive atmospheres “ is a European standard. The ATEX approval for this equipment is widely accepted outside the European community as well.

Key Features

ATEX Certification: Suitable for Zones 1 and 2 (gas) and Category M2 (mines), compliant with Directive 94/9/EG.
Extended Field of View: 310° vertical and 360° horizontal coverage, allowing comprehensive documentation with minimal scan positions.
High Acquisition Speed: Up to 508,000 points per second, with an ambiguity interval of up to 79 meters.
Millimetric Precision: Linearity error up to 1 mm over 50 meters, with a measurement noise of 0.7 mm RMS.
Stand-Alone Operation: Internal battery replaceable in explosive environments, with control via integrated display or Wi-Fi connection.

The main applications include:

“As-built” surveys in complex industrial plants, where it is necessary to document the current state of structures, pipelines, and components for maintenance, revamping, or design purposes.
Mapping of confined and hazardous environments — such as tanks, tunnels, storage areas, silos, or chemical plants — with limited access and the presence of potentially explosive gases or dust.
Technical inspections and non-destructive testing, ideal for assessing the condition of structures without interrupting plant operations.

Perfect Survey 3D Scanner for Mining and Other Explosive Atmospheres

Due to the ATEX certification, IMAGER 5006EX revolutionizes measuring in explosive atmospheres such as in the chemical industry and mining. Services with IMAGER 5006EX especially in underground mining and sewerage systems support numerous advantages that not only increase safety and productivity but also reduce costs. It introduces the application of as-build documentation and non-contact safety inspections as well as deformation analysis and acceptance inspection in more processes in the oil & gas sector, for maintenance and repair in the shipbuilding industry and geological investigations. The 3D scanner IMAGER 5006EX eliminates guess-work about the extent of damage in pits, tanks, or piping and instead allows for accurate evaluation and documentation of development conditions and potential damage.
