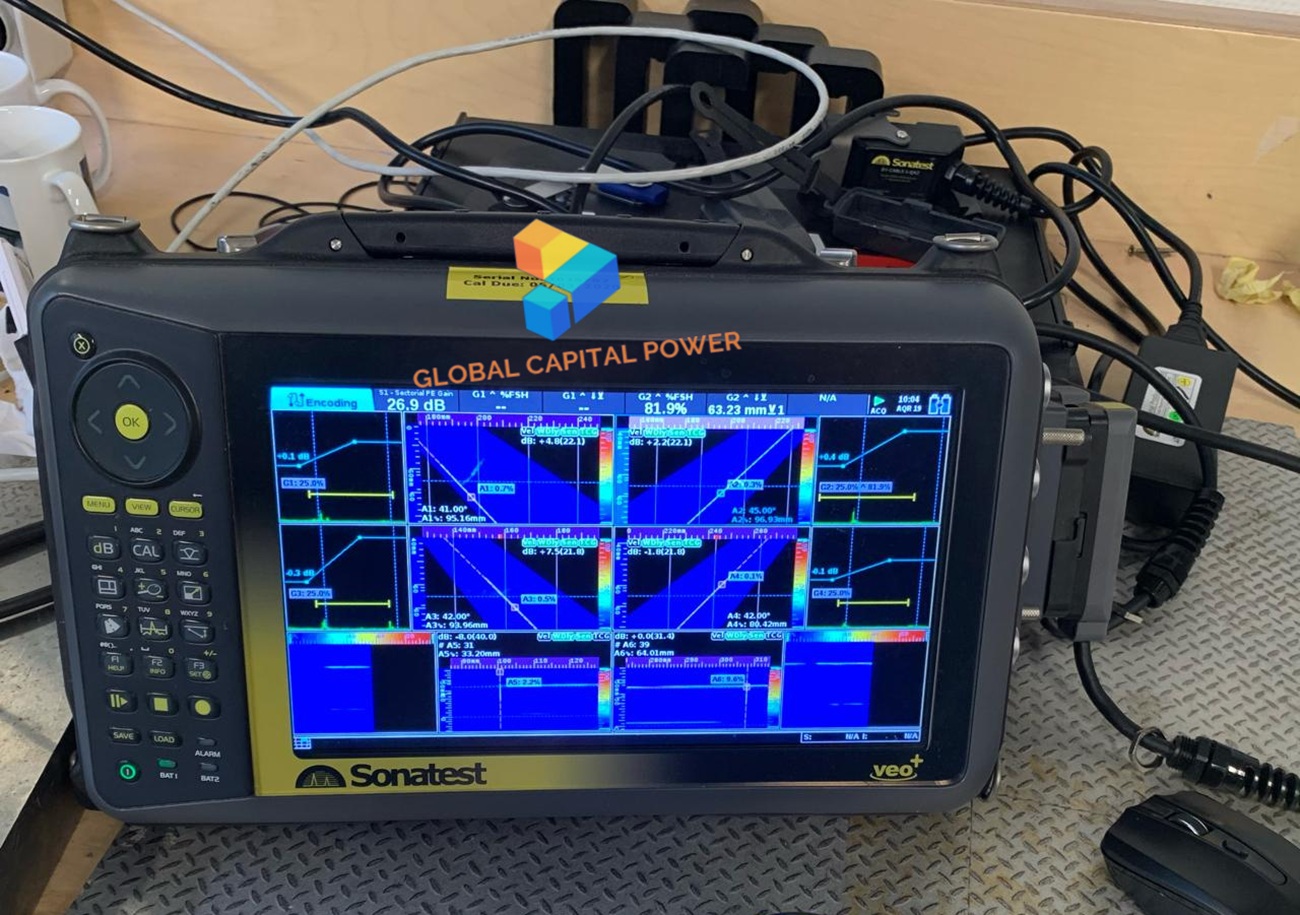

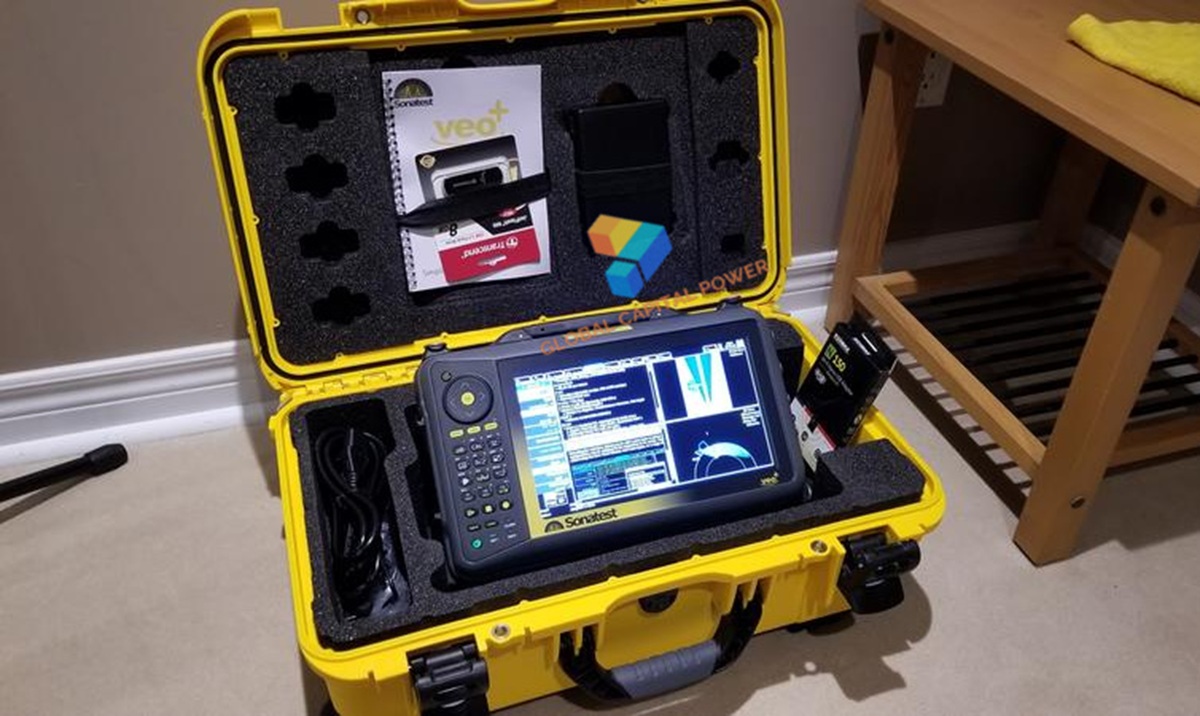

Sonatest Veo+ Phased Array Ultrasonic Flaw Detector

Description

Sonatest Veo+ Phased Array Ultrasonic Flaw Detector

Sonatest Veo+ Phased Array Ultrasonic Flaw Detector electronic & software is powered by a new architecture off ering superior data throughput and unsurpassed computational capacity to deliver fast and accurate results in the most demanding conditions. It allows inspectors to easily create high resolution volumetric scans and record very precise data sets with exceptional measurement precision.

Advanced Analysis

In no time, you will be able to accomplish amazing things and get the job done.
UT Studio software application, which comes as part of the Veo+ package, is used to manage inspection configurations, perform data analysis and build precise reports.
Veo+ data files are easily transferred via a network or a USB data key to the PC. Then, thanks to a comprehensive, right click / drag and drop user interface, you can create new data views, customize color palettes, add and modify gates and measurement parameters, generate extended reports and much more.

Correct the Position of Scan Lines

UTmap enables users to manually position each scan, even if that scan contains multiple lines. UTmap shows each scan line individually so they can be placed exactly where they need to be.

Move or set precise coordinates
Rotate
Crop
Flip and mirror

Adjust Scan Parameters of All Files

Changes of gate positions can be applied to all data files at the same time; this saves time from adjusting every file individually and ensures parameters are uniform across all scans.

Load Images into the Results

UTmap allows users to import images of the part or design diagrams to be loaded into the software.

The images can be used for easy reference for aligning scans or overlayed onto the results to show the exact location of indications on the part.

System Compatibility

UTstudio+ is compatible with VEO3, and Sonatest legacy products Prisma and VEO+. UTstudio+ data is also compatible with CIVA analysis software.
