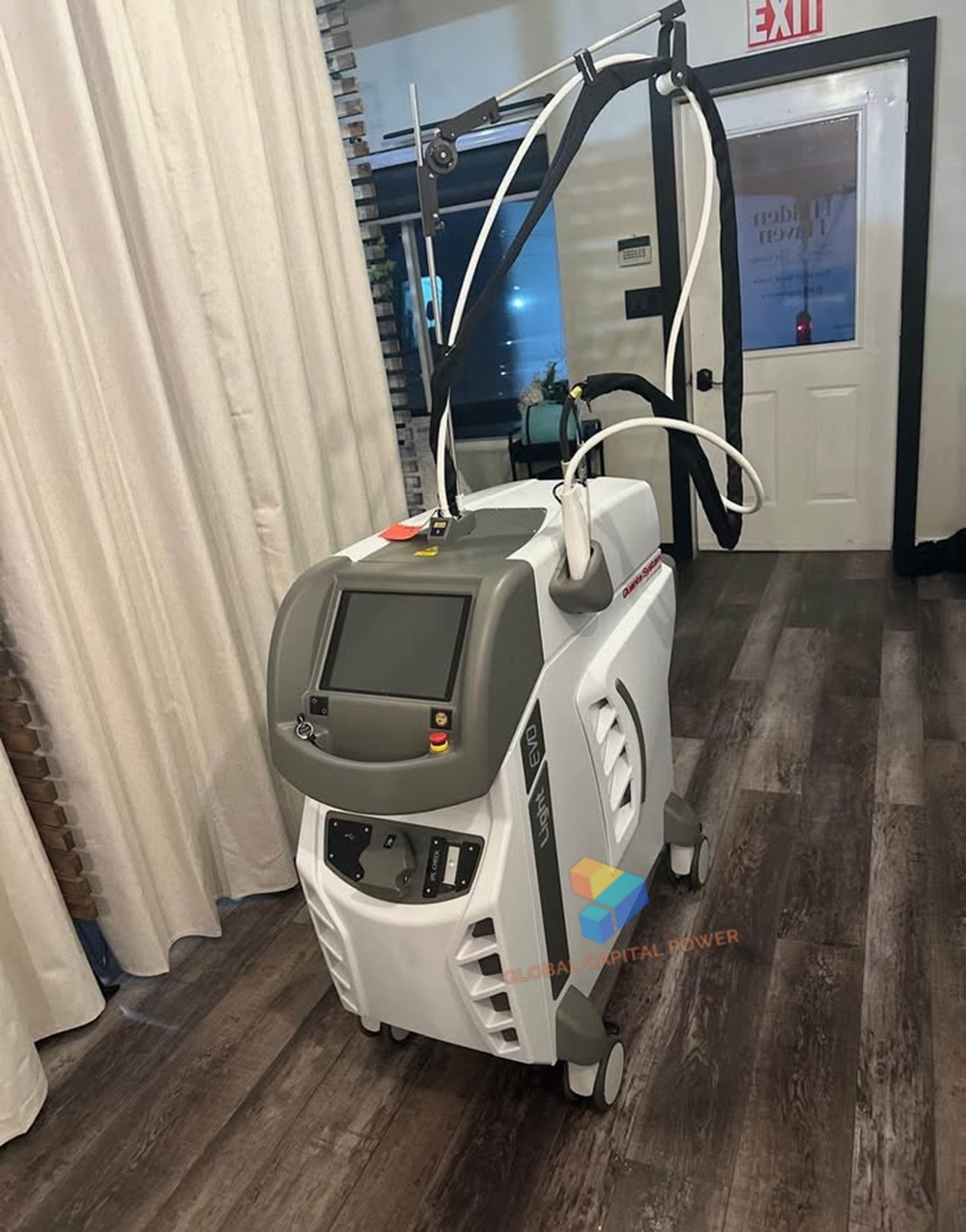

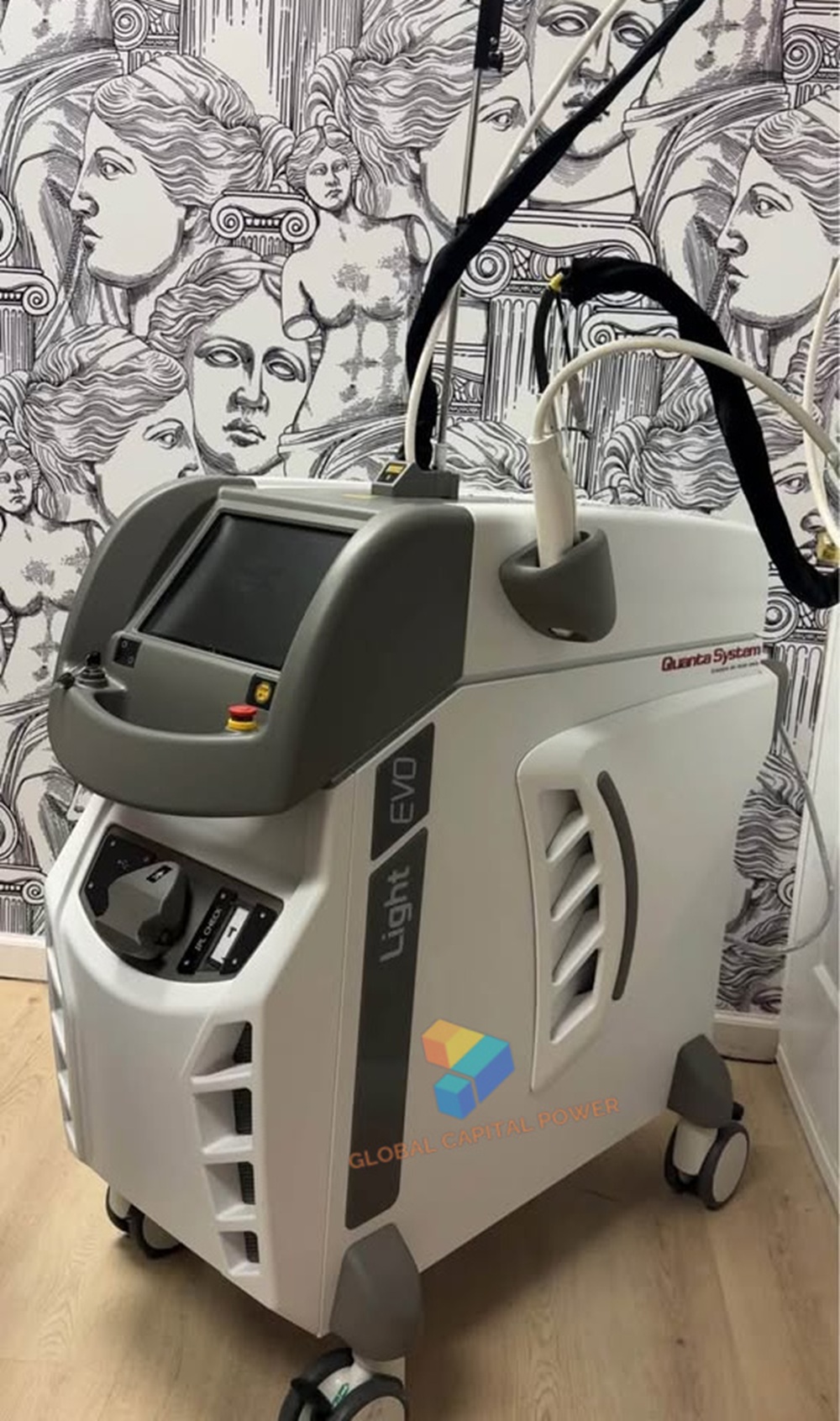

Quanta Systems Light Evo Laser

Description

Quanta Systems Light Evo Laser

Quanta Systems Light Evo Laser series means one can effectively address critical concerns across skin types and perform the exclusive Elluminate treatment all with a single, hand-crafted device. Customize your Quanta EVO laser to meet the specific needs of your practice.

Applications of the Quanta Light EVO:

Benign Vascular Lesions
Benign Pigmented Lesions
Wrinkle Treatments
Permanent Hair Reduction

Advantages

Multiple Wavelengths for better treatment versatility
Engineered to deliver a wide range of treatments for Fitzpatrick Skin Types 1-VI
Wide range of handpieces and auto spot size detection
Glass 10’’ Touch Screen with Intuitive Graphical User Interface
No Consumables for quick return on investment
Expandable treatment options with twain connector

Specifications

Laser Type: Multi Wavelength
Laser Classification: Class 4
Aiming Beam: White Light/Class 3R
Mains: 200-240 Vac; 50/60 Hz; 3.7 kVA
Mode of Operation: Continuous
Fuse: Circuit Breaker 16A
Dimension: 530 (W) x 1043 (D) x 1060 (H) mm
Weight: 150 kg
Device Cooling System: Closed water circuit/water air exchanger
Skin Cooling System: Integrated contact cooling (optional), Air cooling (optional)
Beam Delivery: Optical fiber for pulsed lasers; Articulated arm for Q-Switched lasers
Aiming Beam: White light for the Optical Fiber (excep for Ligh 4V and for Light A Star + 1320); Class 3R less than 4mW @635nm for the Articulated Arm, for Light 4F and Light A Start + 1320)

Wavelengths Available

Pulsed Laser: Nd Yag 1064nm, Nd Yag 532nm, Nd Yag 1320nm, Alex 755nm (Light), Alex 755nm (Domino)

Q-Switched: QS Nd Yag 1064nm, QS Nd Yag 532nm, QS Ruby 694nm

Photo-Thermal: PT Nd Yag 1064nm, PT Ruby 694nm

Nd YAG 1064nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 2-5, 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 300; Rep. Rate (Hz): 1 – 10; Exposure Time (s): 0.003; Divergence (mrad): 14; MPE (J/m2): 0.43; NOHD (m): 216; OD: OD less than 6;

ALEX 755nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 60; Rep. Rate (Hz): Up to 10; Exposure Time (s): 0.002; Divergence (mrad): 14; MPE (J/m2): 0.0825; NOHD (m): 404; OD: LB6, OD less than 6;

Laser Innovation & Stability

Lasers in the Light EVO series come with OptiBeam II technology. The handpieces allow for large spot size settings and homogenous power distribution. With software and hardware that allows for under 2-minute start-up times and a device built to handle extreme temperatures, EVO provides many efficiencies for your practice.
