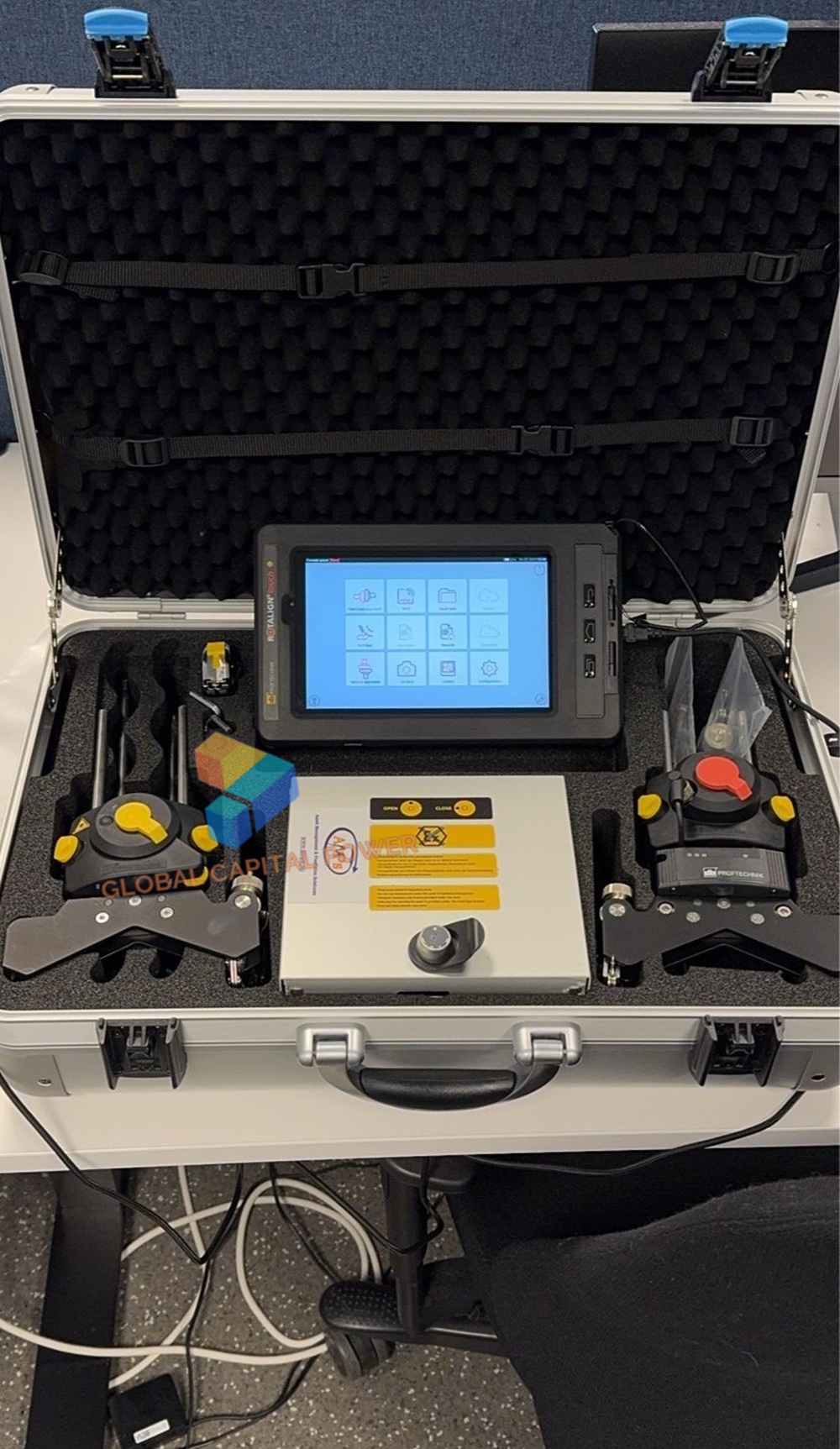

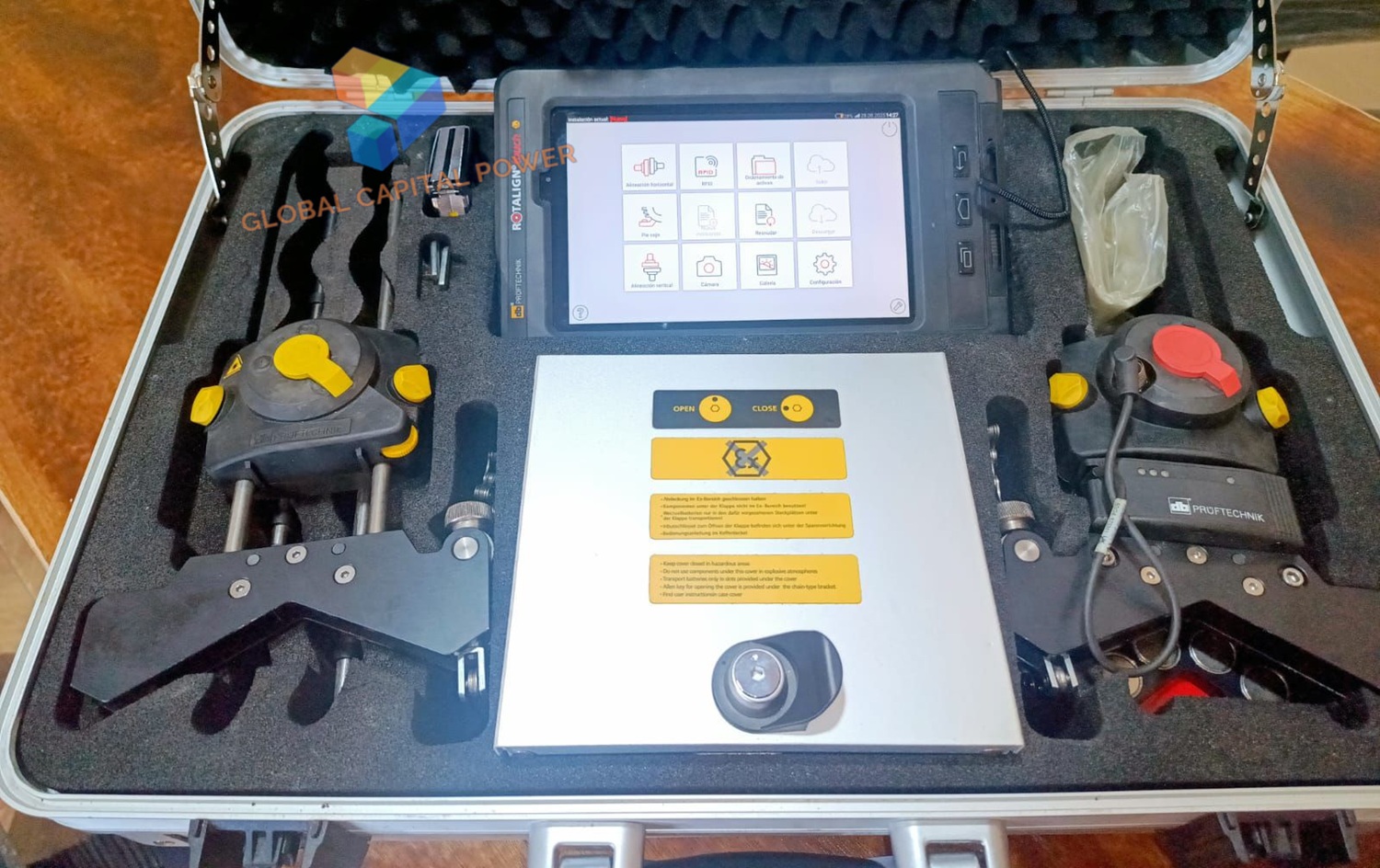

Pruftechnik Rotalign Touch EX Shaft Alignment System

Description

Pruftechnik Rotalign Touch EX Shaft Alignment System

Pruftechnik Rotalign Touch EX Shaft Alignment System for maintenance professionals working in explosive environments gives the benefits of a rugged touch-enabled tablet backed by PRUFTECHNIK’s patented single-laser measurement technology sensALIGN 5 for maximum usability in the field.

Features when working in dangerous areas

ATEX/IECEx Zone 1 certified including ruggedized IP68 tablet device
Active Situational Intellgence
Simultaneous Horizontal and Vertical Live Move + Move Simulator
Thermal growth and targets
Spacer coupling and in-situ Cardan shaft alignment with rotating arm bracket
Soft Foot Wizard to diagnose soft foot problems
6-machine train alignment
Advanced vertical machine alignment with vertiSWEEP continuous measurement mode
ALIGNMENT RELIABILITY CENTER 4.0 PC software including auto-activation and PDF reporting
Mobile connectivity with integrated Wi-Fi, Bluetooth, RFID and camera

Advanced laser shaft alignment system for EX areas

Intrinsically safe
ATEX/IECEx Zone 1 certified. Avoid ‘hot work permits’ and save time.
Premium features save time and effort
Best measurement accuracy and repeatability

The measurement time with:

Continuous SWEEP Mode for high-quality measurement in only one shaft rotation
Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions
vertiSWEEP to measure vertical machines in one rotation of the shaft
Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft
Soft Foot Wizard to diagnose soft foot problems
Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine

Have instant access to the critical data you need with full mobile connectivity. The ROTALIGN touch EX tablet is Wi-Fi enabled and equipped with a Bluetooth module, an integrated camera, and an RFID reader for automatic machine identification and error-free two-way transfer of asset data.

Direct communication between the tablet and the ALIGNMENT RELIABILITY CENTER 4.0 PC software allows specialists to archive, analyze, and process alignment data to improve asset performance improvement and reliability.
