Optos Daytona Retinal Imaging Devices

Description

Optos Daytona Retinal Imaging Devices

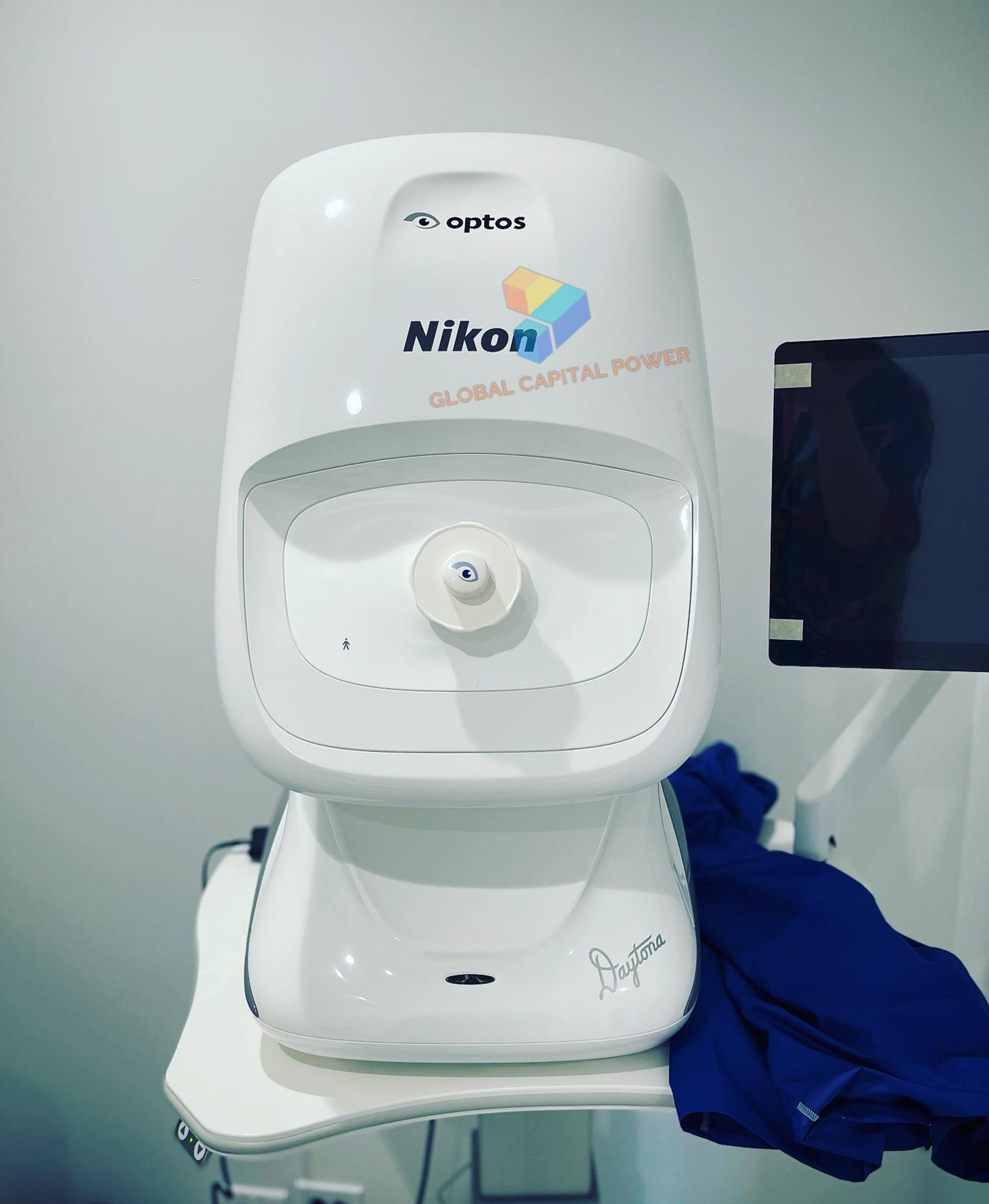

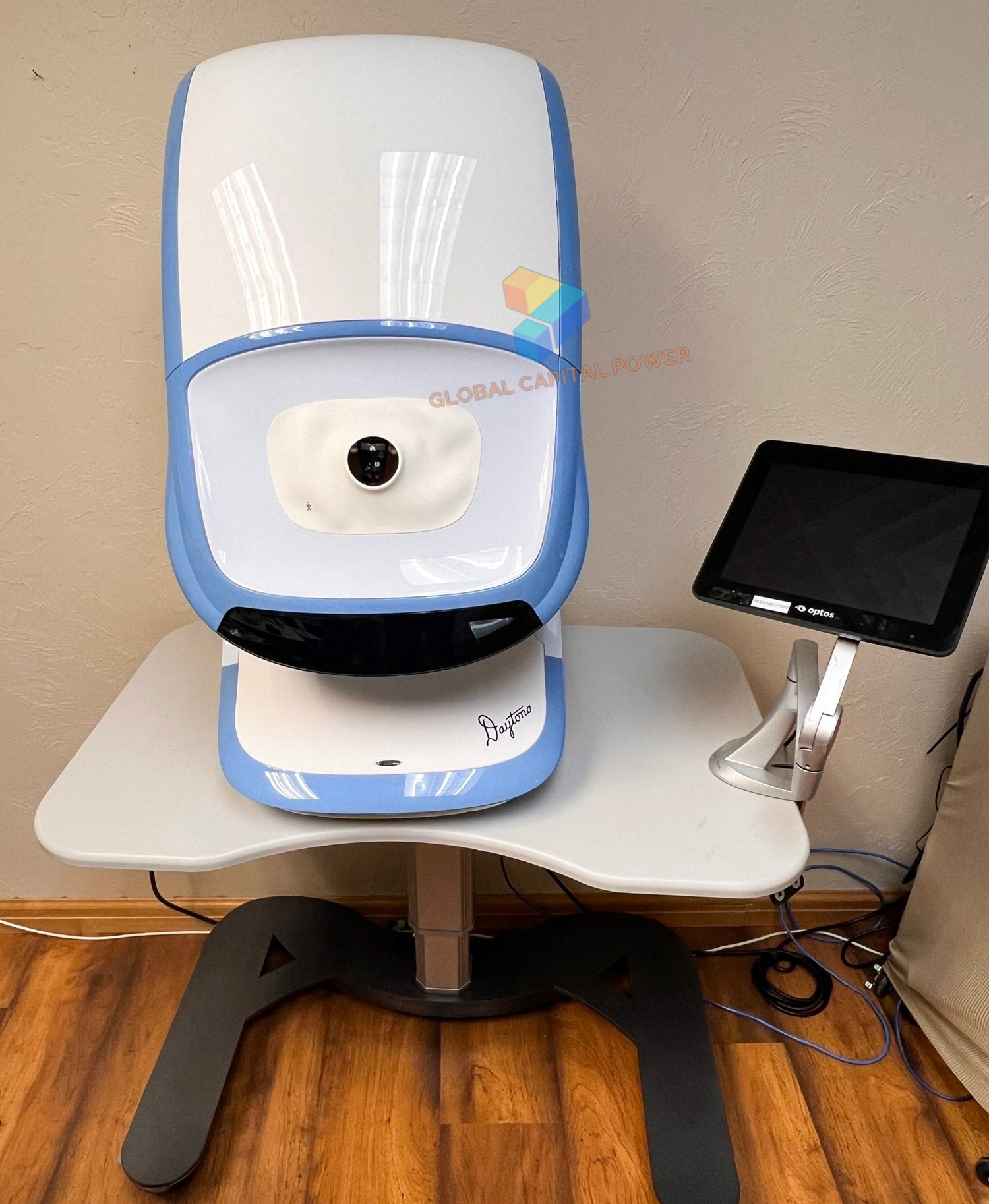

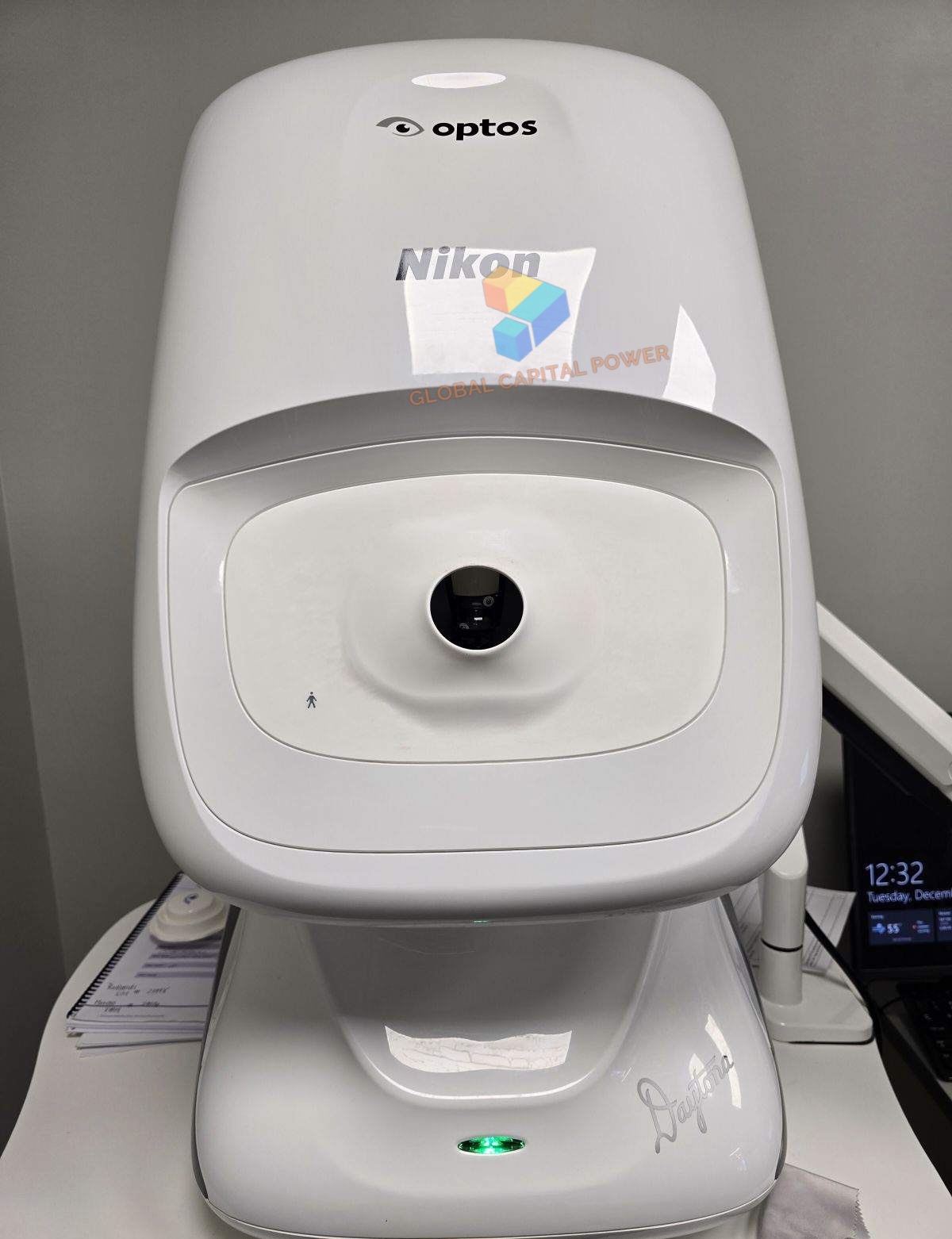

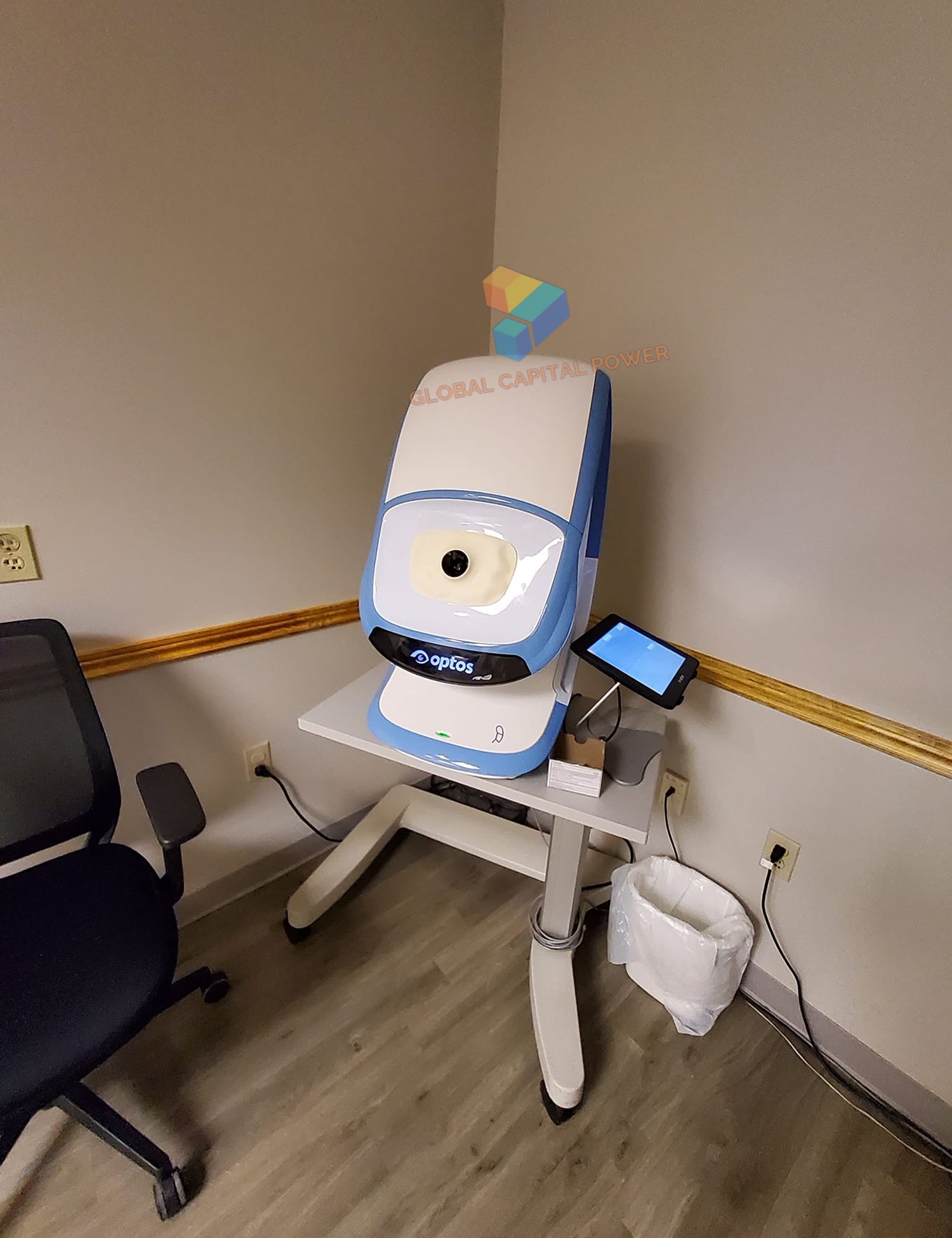

Optos Daytona Retinal Imaging Devices takes wide images of a patient’s retina. The pupil size usually limits what an imaging system or camera can see in the retina. The Optos Daytona uses special technology to take retinal images. It captures them as if it were inside the eye. This device can take a 200-degree picture of the retina in 1 picture around and can catch the image in less than 1 second. The Daytona is easy for individuals to use. A patient sits in the front of also an icon lights along with the machine up in green if she or he is at the correct place for the camera. The system leaves the doctor available to revolve around the individual rather than on the screen and captures the image.

Features

Unequaled 200° retina view
Quick, simple and comfortable
Cutting-edge technology
Co-management with patients experts
Control of patients with pathology
High-resolution, high-contrast image
82 percent of the retina at 1 image
Small pupil patient friendly capture
Pupil dilation not necessary

Optomap Image Modalities

Color rg
Sensory Red-free
Choroidal
Autofluorescence

Image Views

Standard: 200⁰ Single Capture
Auto-montage: Up to 220⁰
Central Pole: Detailed view of the macula
Stereo: Image pairing for optic disc and retinal evaluation

Daytona provides eyecare professionals with UWF digital images of 200 degrees or up to 82% of the retina in a single, non-contact optomap image. In addition, the Daytona device comes with the OptosAdvance browser-based image review software, which allows for simple documentation, monitoring and referral processing to assist in patient management and improved patient flow.
Technical Specifications

Image Modalities

optomap color rg (red and green laser)
optomap Sensory Retina (green laser)
optomap Choroidal (red laser)
optomap green af (green laser): autofluorescence
optomap af (green laser): autofluorescence

Resolution
optomap plus: 14 μm
optomap: 20 μm

Wavelengths
Red laser: 635 nm
Green laser: 532 nm

Exposure Time
Less than 0.4 seconds

Footprint
Width: 440 mm/18 in
Depth: 500 mm/20 in
Height: 795 mm/32 in

Weight
28 kg/62 lbs

Table Space Requirements
Width: 700 mm/28 in
Depth: 550 mm/22 in

Colors
White body with aqua trim
White body with blue trim
White body with silver trim
White body with red trim

Laser Class
Laser safety class-1
following EN60825

System Voltage
US: 100-120V at 50/60Hz 3a

Power Consumption
Max. 300VA
