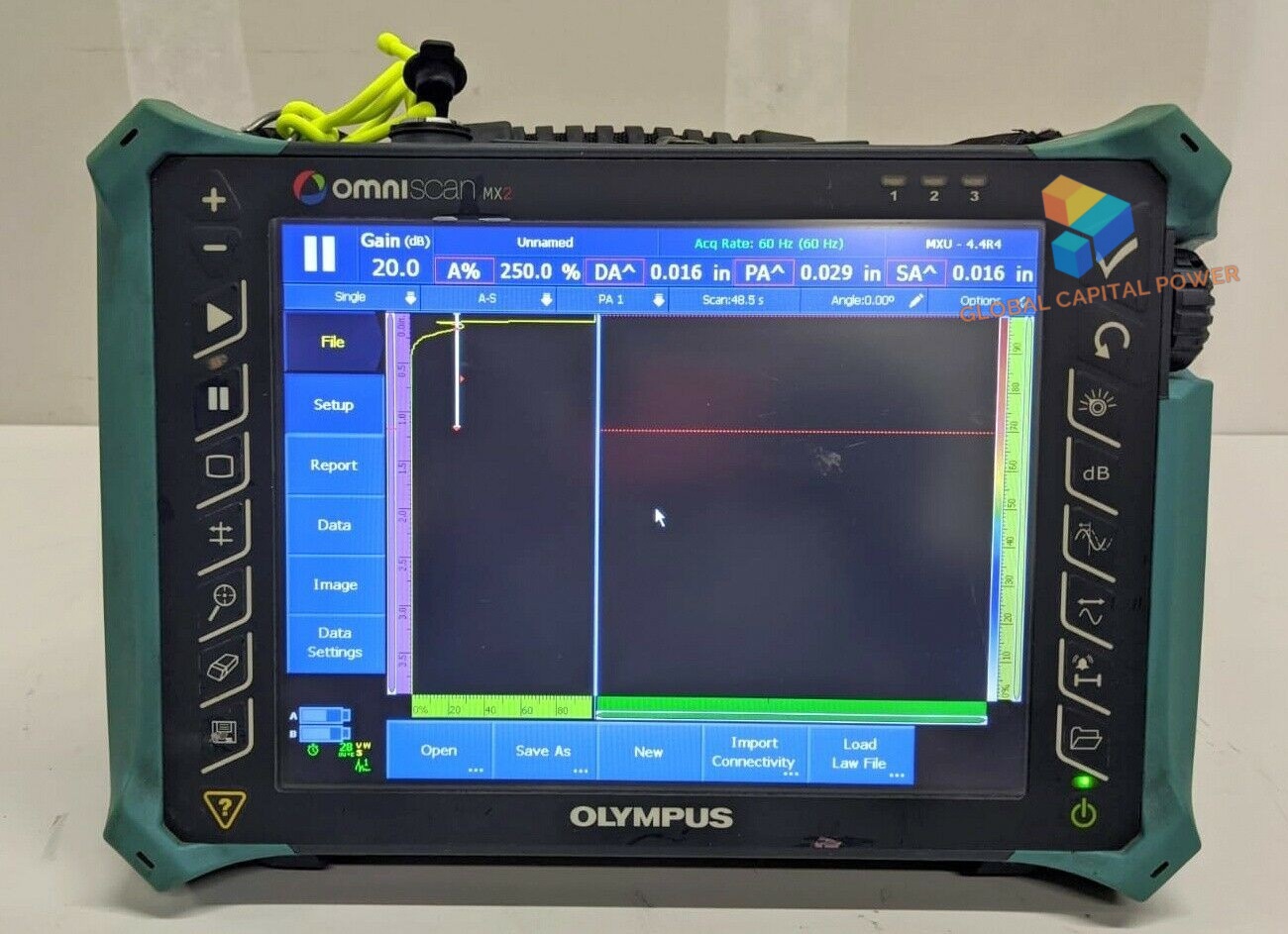

Olympus OmniScan MX2 32:128 Phased Array Flaw Detector

Description

Olympus OmniScan MX2 32:128 Phased Array Flaw Detector

Olympus OmniScan MX2 32:128 Phased Array Flaw Detector designed for NDT experts, this high-end, scalable platform delivers true next-generation NDT performance. The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance all in a portable, modular instrument.

Features

Aperture: 32
Number of elements: 128
OmniScan MX2 and second generation 32:128PR Phased Array acquisition module (including a UT conventional channel) with support of 32 pulsers / 32 receivers.
Large, 10.4 in. (26.4 cm) touch screen
Multigroup capability
Two-axis encoding and data archiving capacity
Modular platform
Complete evolving range of modules

Benefits

Modular Testing Technology
The OmniScan MX2 32:128PR supports various testing technologies. Its OmniScan connector automatically adjusts settings based on the connected probe, preventing damage and optimizing performance.

High Acquisition Rate
With a high acquisition rate, the OmniScan MX2 provides fast and accurate tests. It’s ideal for both manual and automated inspections across industries.

Portable and Rugged Design
Weighing just 4.6 kg (10.1 lbs), the OmniScan MX2 is lightweight and built to withstand tough field conditions. Its durable polycarbonate casing with rubber bumpers ensures long-lasting use. The device runs for 6 hours on a single charge.

User-Friendly Interface
The 8.4-inch display offers clear results, even in bright light. The scroll knob and function keys make navigation easy. A mouse and keyboard can be added for a more PC-like interface.

Modular Platform
The OmniScan MX2 is modular, letting you switch test modules easily. The system automatically detects new modules and configures settings accordingly.

Advanced Ultrasound Testing
The OmniScan MX2 excels in TOFD and Pulse-Echo techniques. It also offers C-scan imaging and A-scan recording for detailed inspections of welds, corrosion, and composites.

Applications

Phased array weld inspection
ToFD weld inspection
P/E weld inspection
General component inspection
Pressure vessel inspection
Composite inspection
Corrosion mapping inspection
Multi-group inspection

Advanced phased array ultrasonic testing
High-speed scanning for defect detection
Providing detailed imaging for material evaluation
