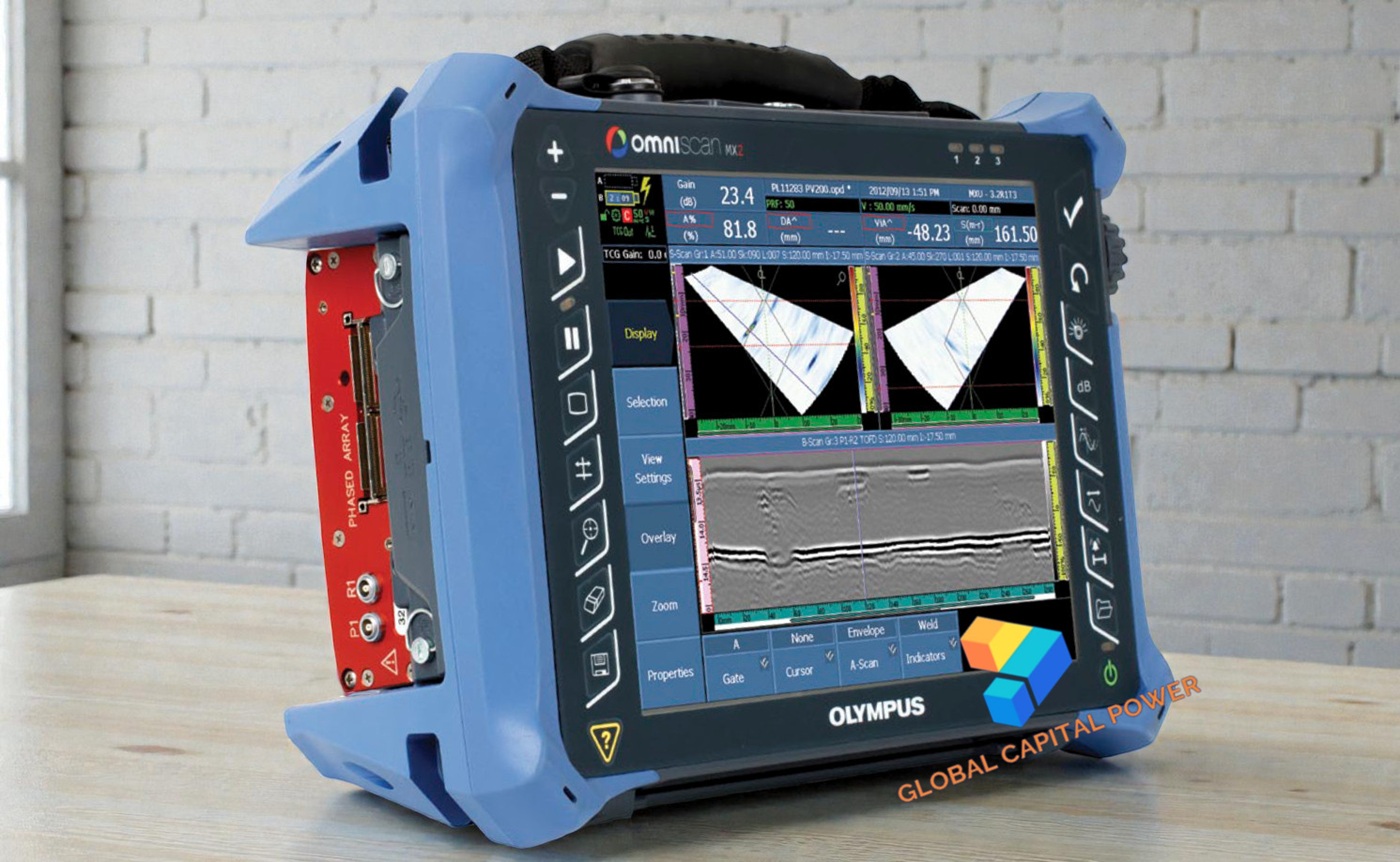

Olympus Omniscan MX2 16:128 Phased Array Flaw Detector

Description

Olympus Omniscan MX2 16:128 Phased Array Flaw Detector

Olympus Omniscan MX2 16:128 Phased Array Flaw Detector is the second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.

Features

Aperture: 16
Number of elements: 128
Bright, large touch screen
New phased array and TOFD modules
New NDT setupBuilder design software
New OmniPC analysis software

Applications

Phased array weld inspection
ToFD weld inspection
P/E weld inspection
General component inspection
Pressure vessel inspection
Composite inspection
Corrosion mapping inspection
Multi-group inspection

Ports

USB ports: 3
Speaker out: Yes
Video output: Video out (SVGA)
Ethernet: 10/100 Mbps

Lines

Encoder: 2-axis encoder line (quadrature, up, down, or clock/ direction)
Digital input: 4 digital TTL inputs, 5 V
Digital output: 4 digital TTL outputs, 5 V, 15 mA
Acquisition on/off switch: Remote acquisition enabled TTL, 5 V
Power output line: 5 V, 500 mA power output line (short-circuit protected)
Alarms: 3 TTL, 5 V, 15 mA
Analog output: 2 analog outputs (12 bits) ±5 V in 10 kΩ
Pace input: 5 V TTL pace input

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.

Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its new WeldOverlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance,a bigger and brighter 10.4 in. screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.

The OmniScan MX2 is now designed for IP66, and built to withstand the drops, spills, and abuse that typically occur in the most demanding inspection environments.

Includes:

Omniscan MX2 16:128 PR Phased Array
SD card.
Batteries
Probe: 5L32 A11
Panametrics D790-SM Conventional Zero Degree dual transducer
2 x BNC to Microdot Cable: both brand new
Power supply and AC cable.
Owners manual
Original cable kit with 2 cables one of which is encoder adapter
Network Cable
Ferrite bead set
Multi-bit Screwdriver
Industrial Wire Tie
