Olympus Magna Mike 8600 Portable Thickness Gauge

Description

Olympus Magna Mike 8600 Portable Thickness Gauge

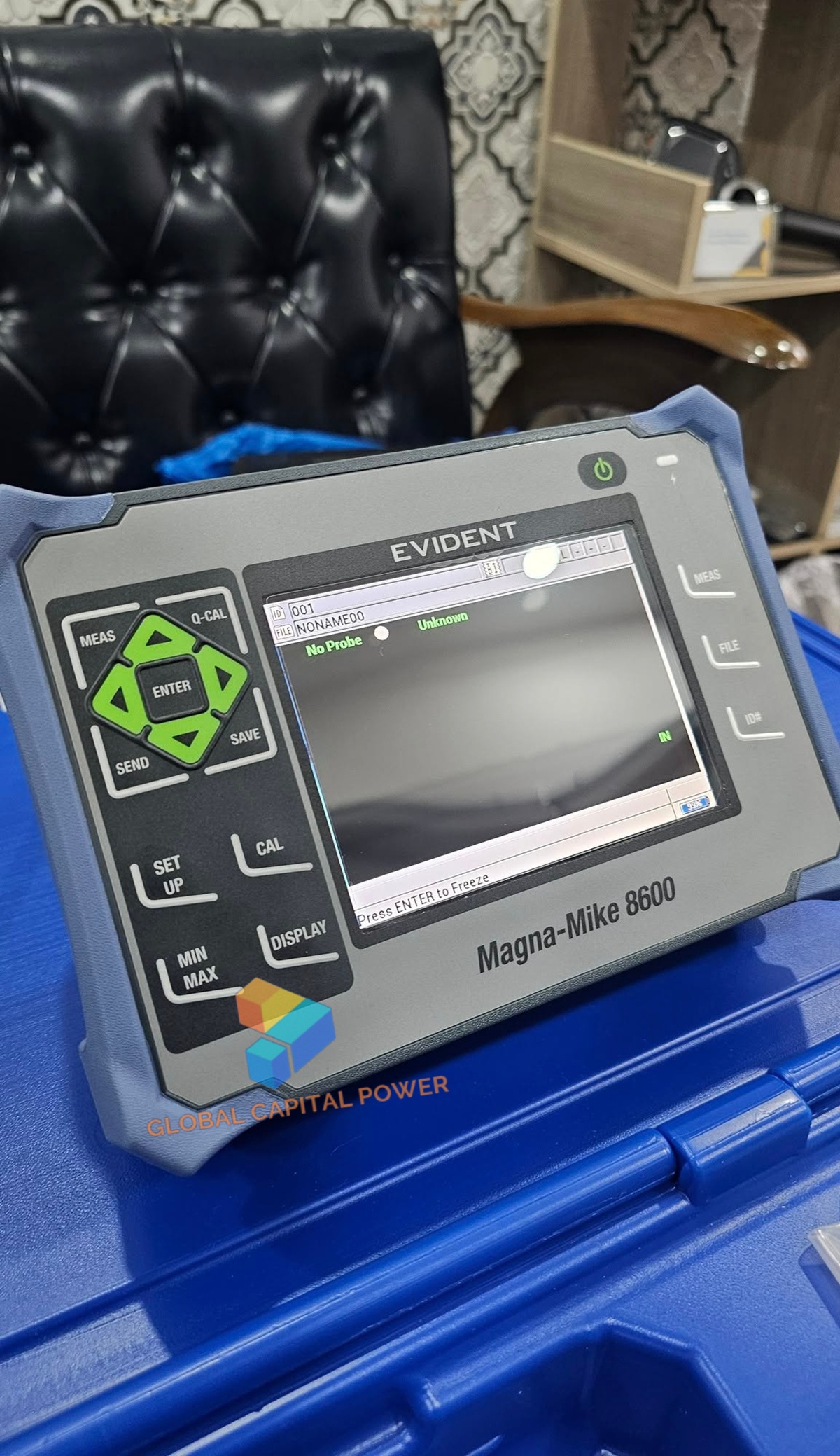

Olympus Magna Mike 8600 Portable Thickness Gauge is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe’s Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.

Features

Three durable probe designs:
– Straight, right angle, and low-profile articulating
Replaceable wear caps
– Standard, chisel tip, and extended wear (for 86PR-1 and 86PR-2 only)
Expanded target selection
– 3/16 and 1/4 in. magnetic target balls
– 1.14 mm (0.045 in.) and 0.66 mm (0.026 in.) diameter wire target
Expanded thickness range up to 25.4 mm (1.00 in.)
Large color VGA display* RS-232, USB, and VGA outputs
Fast measurement update rate: 60 Hz
Expanded alphanumeric data logger
Save and Recall stored calibration files
Ability to export file to a microSD card in .txt and CSV formats
New accessory kits (calibration kits)
– Standard up to 9.1 mm (0.360 in.)
– Extended range up to 25.4 mm (1 in.)
– Disk kit
– Wire target kit
– Low-profile probe kit

Applications

Hall-Effect Thickness Gauging for Nonferrous Materials
The Magna-Mike 8600 Hall-effect thickness gauge uses a simple magnetic method to make reliable and repeatable measurements on plastic bottles, packaging, and other nonferrous materials.

Packaging and Plastic/Glass Bottles
Magna-Mike 8600 gauge measures the thickness of packaging and plastic/glass containers for applications in various industries. Simply drop the small target ball inside the container. The magnetic probe held on the outside of the container attracts the target ball. When scanning the probe along the surface or critical corners, the small steel target ball will follow. In the Minimum Mode feature, the gauge continually displays both the actual thickness and the lowest thickness reading.

Probes

86PR-1: Standard straight probe 82.30 mm (3.24 in.) long and 18.62 mm (0.733 in.) dia.
86PR-2: Right angle probe head 58.84 mm x 18.62 mm, length 178.57 mm (2.32 in. x 0.733 in. dia., length 7.030 in.)
86PR-3: Low-profile articulating probe 241.3 mm (9.5 in.) long

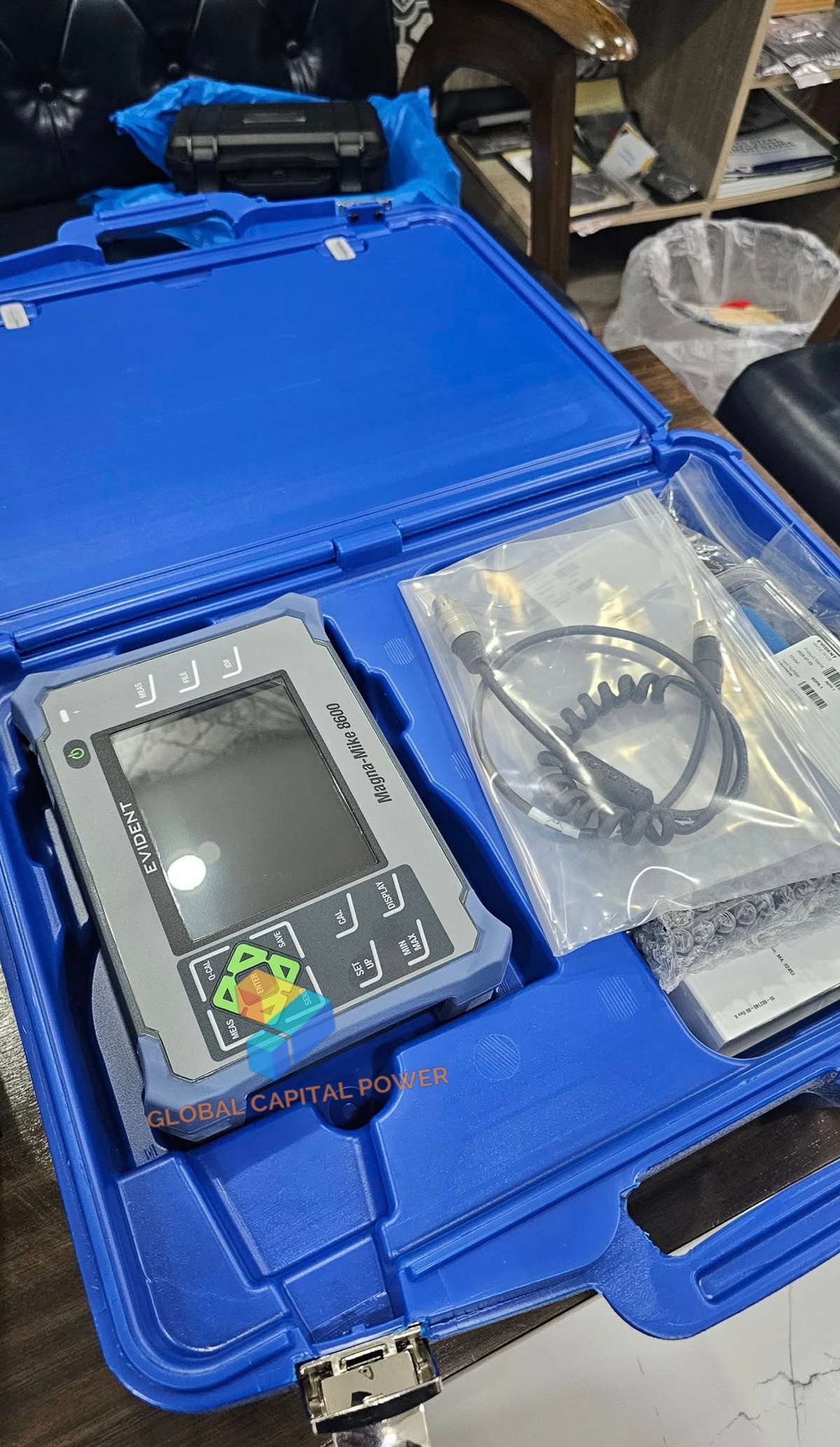

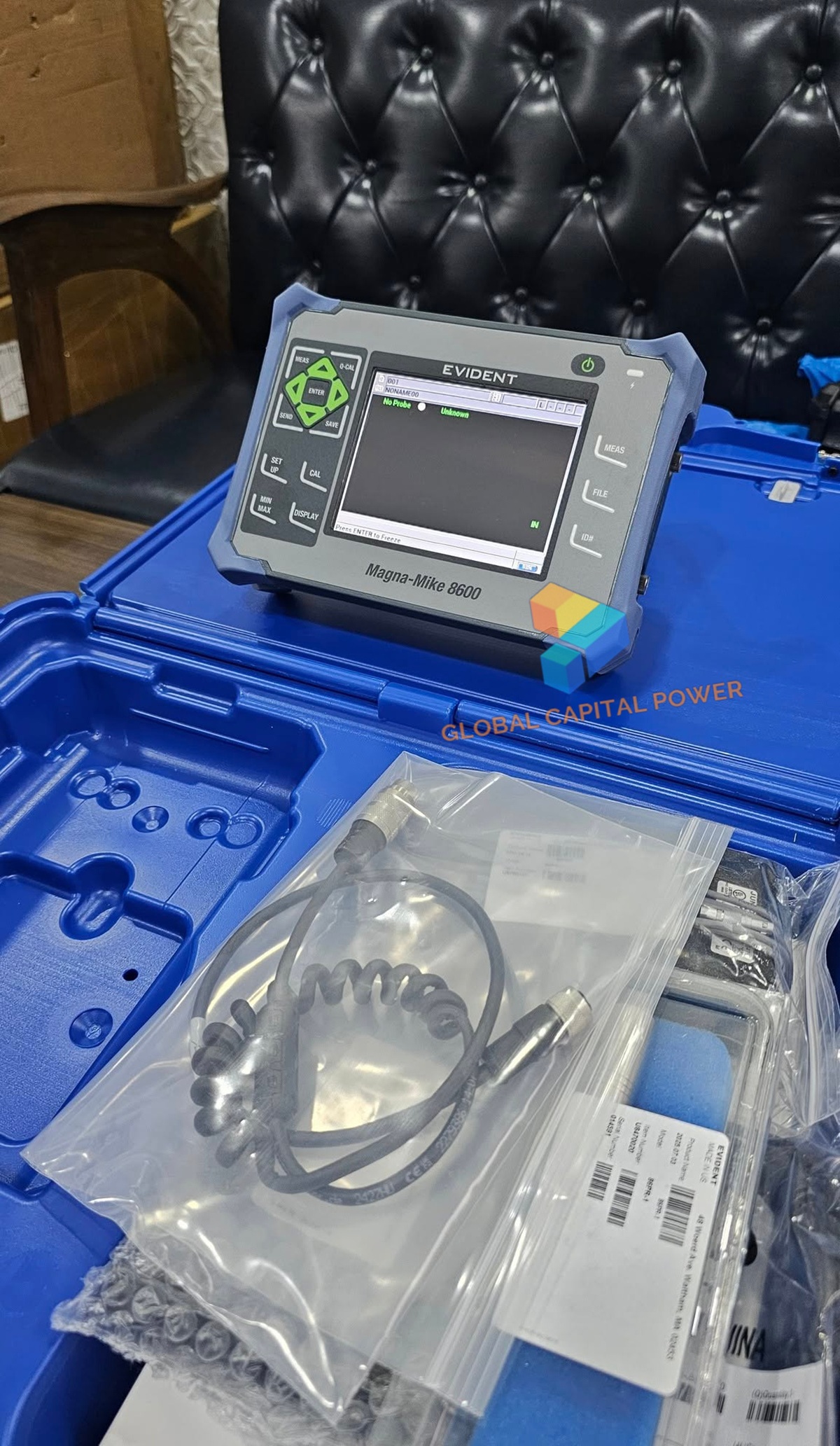

Purchase includes:

Olympus Magna Mike 8600
86PR-1: Standard probe
86PR1-EWC Extended wear cap for 86PR-1
Probe cable for 86PR-1
Interface program to Excel
86ACC-KIT: Standard calibration kit
External power supply with charger
CD with manual (all languages)
RS-232 cable
USB cable
Carry case
Warranty Card
– Calibration Certificate
