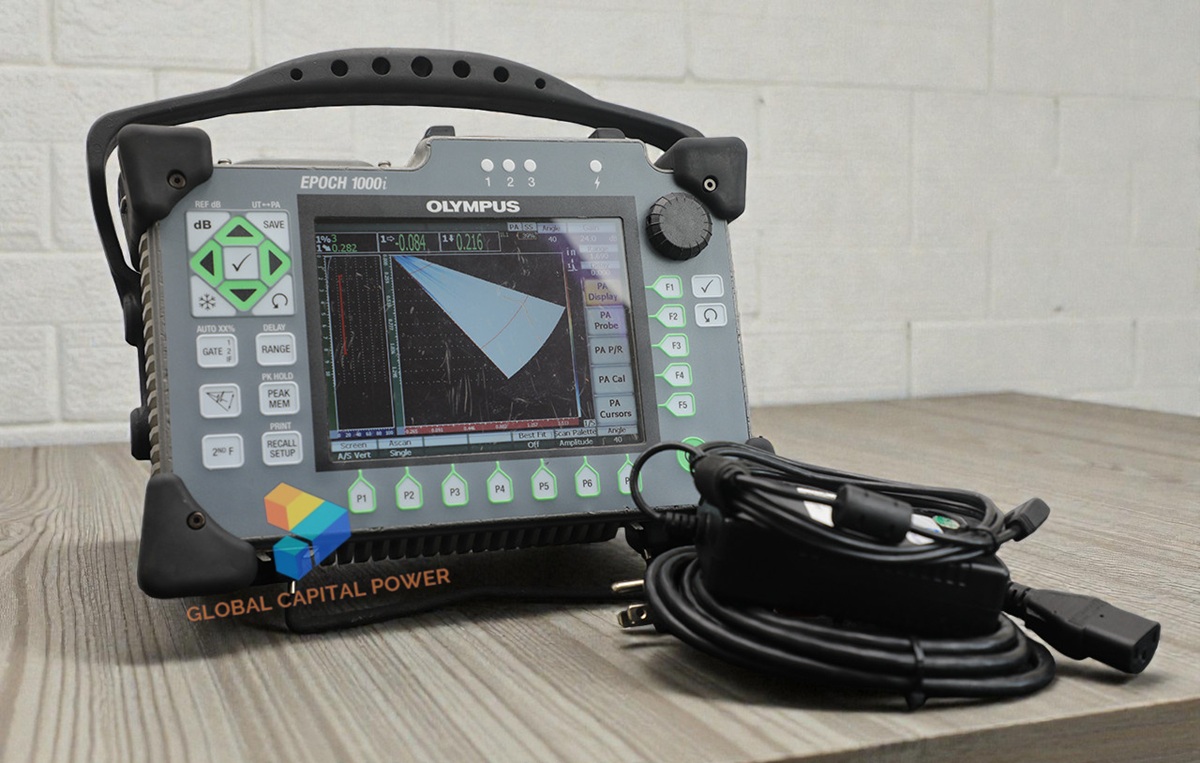

Olympus Epoch 1000i Ultrasonic Flaw Detector

Description

Olympus Epoch 1000i Ultrasonic Flaw Detector

Olympus Epoch 1000i Ultrasonic Flaw Detector combines the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The EPOCH 1000i feature a new horizontal case style with full VGA display, knob and navigation arrows for parameter adjustment, and full EN12668‑1 compliance. The advanced conventional ultrasonic functionality of the EPOCH 1000i is augmented in the EPOCH 1000i with phased array imaging capabilities.

Features

Adjustable pulse repetition frequency (PRF): 5 Hz to 6 kHz
Single-shot measurements in all standard modes
Tunable square wave pulser with PerfectSquare technology
Programmable analog and alarm outputs
Over 30 digital filter sets
Digital high dynamic range receiver

Advanced Conventional Ultrasound

The EPOCH 1000i provide advanced conventional ultrasound capabilities for both basic and advanced level users. These portable instruments can also be integrated into small systems for high-speed scanning and single-channel imaging and come standard with a host of high-performance features, including a 6 kHz maximum Pulse Repetition Frequency (PRF) with single-shot measurements for accurate high-speed scanning applications, tunable square wave pulser with PerfectSquare technology, and comprehensive digital filter sets for exceptional signal-to-noise clarity.

Industries and Applications

General weld inspeciton
Crack detection and sizing
Power generation inspections
AWS D1.1/D1.5 weld inspection
Casting and forging defect inspections
DGS/AVG defect sizing
In-line inspections
Composite delamination and defect inspections
Aerospace and maintenance
Automotive and transportation

Included

Olympus Epoch 1000i Ultrasonic Flaw Detector
Olympus Probe
RS232 Power Cable
BNC Cable
AC Adapter/Charger
Power Cord
USB PC Interface Cable
Hard Copy User Manual

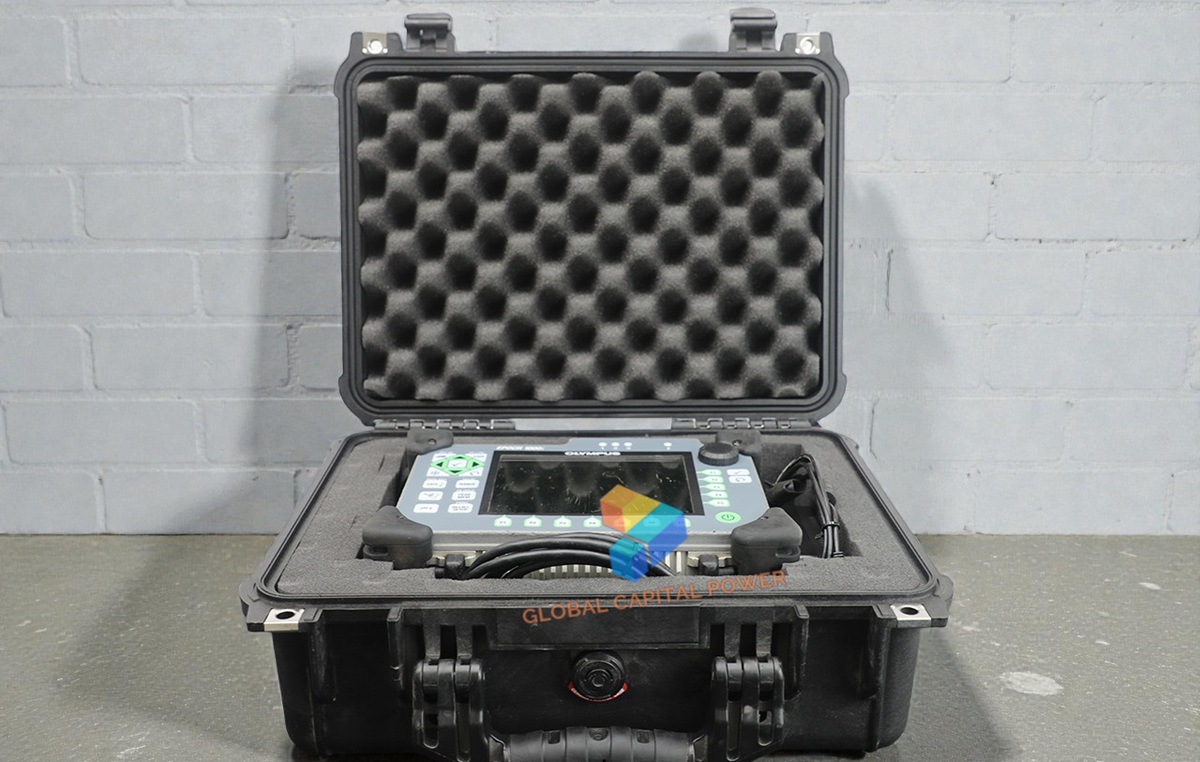

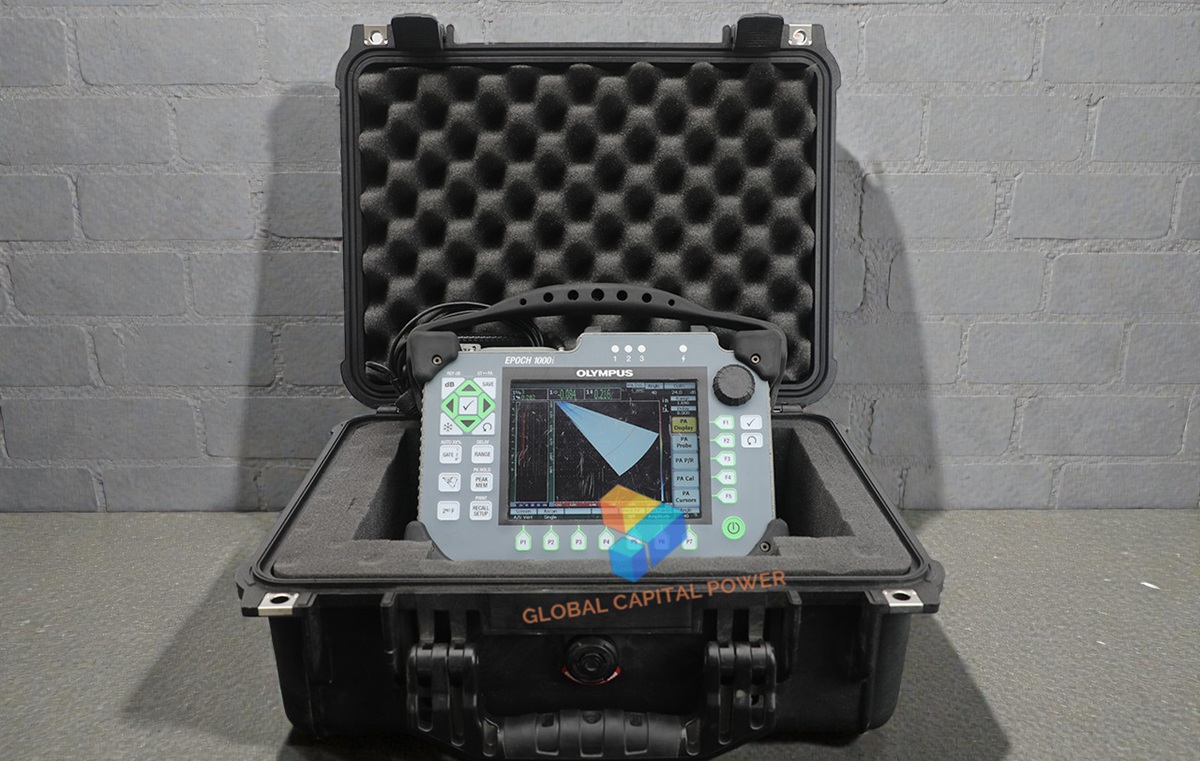

Hard Carrying Case

The EPOCH 1000 Series is designed to meet the IP66 environmental rating. Tested for shock, vibration, explosive atmosphere, and wide temperature range, these instruments can withstand operation in harsh inspection conditions. Some of the EPOCH 1000 Series’ other key physical features include:
Large, full VGA (640×480) resolution color transflective display for optimum viewing in low or bright lighting conditions.
Rugged rubber handle for easy transport.
Durable instrument-mounted D-rings for chest harness use.
Front and rear stands for table-top or steep inclined viewing.
USB Client and Host ports for PC communication, direct printing and communication with peripheral devices.
VGA output for presentations, training, and remote instrument monitoring.
Programmable analog outputs, alarm outputs, and RS-232 communication.
Standard internal, rechargeable lithium-ion battery.
