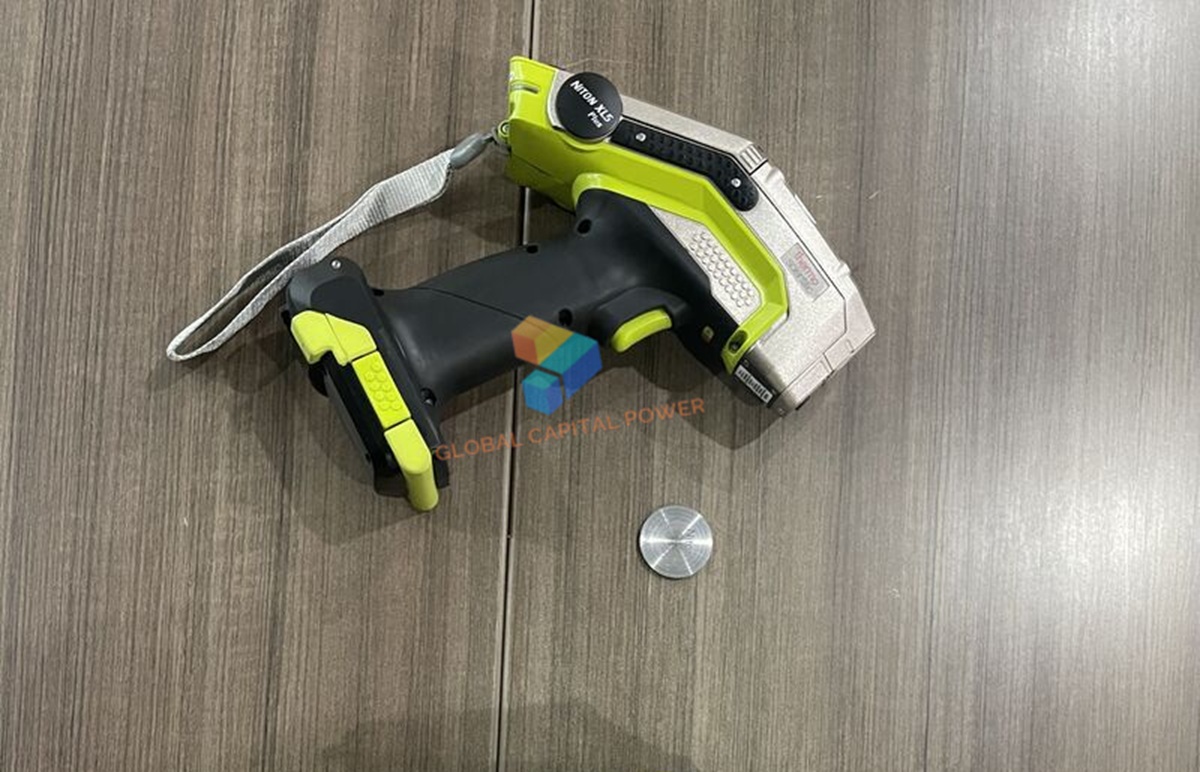

Niton XL5 Plus XRF Analyzer

Description

Niton XL5 Plus XRF Analyzer

Niton XL5 Plus XRF Analyzer is one of the world’s smallest, lightest and most powerful handheld X-ray fluorescence spectrometers. The special combination of 5W X-ray tube and sensitive graphene detector enables highest count rates at best resolution.
Low detection limits and extremely short measuring times are particularly effective in the determination of light elements (Mg, Al, Si, P, S). The analyzer distinguishes even alloys with very narrow tolerances quickly and reliably.

Features

5W X-ray tube
Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
Lightweight design (2.8 lbs/ 1.3 kg)
Miniaturized nose
WiFi enabled
Macro and micro cameras
Hot swap battery
Tilting, color touchscreen
Directional keys
Password protected security
IP54 certified (splash/dust proof)

Advantages

Small and handy for working even in hard-to-reach places.
ProGuard detector protection.
Weighs only 1.3 kg.
Extremely low detection limits.
Very short measuring times.
2 integrated cameras for documentation of the spot and the whole object.
Foldable display, for glare-free reading, even overhead.
Real keys enable work in all weather conditions.
User-specific user profiles.
Hot-swap enables battery replacement during operation.

Applications

Verification of metals and alloys in manufacturing operations
Non-destructive field inspections for positive material identification (PMI)
Point-and-shoot sorting at scrap recycling operations
Coating thickness measurements for single or binary metal layers
Precious metal assay of bullion and jewelry
Real-time geochemical analysis for mining exploration
On-site heavy metal screening of polluted soils
Screening of hazardous substances in consumer goods
Custom applications on demand

Suitable for high-end elemental analyses:

Fast alloy analysis.
Incoming goods inspection.
Quality assurance, non-destructive testing of end products.
PMI tests.
Scrap Metal Recycling:
Minerals
Plastics
Archaeometric applications.
Oil and Gas

Includes:

Niton XL5 Plus
Locking shielded carrying case
Backscatter shield
Portable test stand
Soil guard
Belt holster
Two (2) lithium-ion battery packs
One (1) 110/220 VAC battery charger/AC adaptor
Check samples
Safety lanyard
PC connection cable (USB)
User manual
Warranty card
