Niton XL2 980 GOLDD XRF Analyzer

Description

Niton XL2 980 GOLDD XRF Analyzer

Niton XL2 980 GOLDD XRF Analyzer offer high performance and advanced electronics while maintaining the point-and-shoot simplicity that has been the hallmark of all of our of portable XRF instruments. Sealed against moisture and dust, these analyzers are ruggedly built to withstand the harshest environments – in the field or on the shop floor.

Features:

Niton XL2 analyzer – High-performance semiconductor detector
Niton XL2 GOLDD analyzer – Geometrically optimized large area drift detector
Fixed-angle color touch-screen display
USB and Bluetooth communications
45 kV miniaturized x-ray tube

Applications:

Precious Metals & Jewellery Analysis
Positive Material Identification (PMI)
Ore Grade Control
Exploration
Scrap Metal Sorting
Mine Mapping
Alloy Quality Control (QC)
Toys

Advantages:

Very easy to use – even by non-technical personnel
Rugged design for real-world industrial applications
Truly nondestructive test
From turn on to trigger pull to results in seconds
Confident analysis with technology from the industry leader

Connectivity:

Standard Thermo Scientific Niton Data Transfer (NDT™) PC software suite allows you to set operator permissions, generate custom reports, print certificates of analysis, or remotely monitor, and operate the instrument hands-free from your PC.

Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device. Optional accessories include Bluetooth barcode reader, Bluetooth printer, and Bluetooth GPS.

Technical specifications:

Tube – Precious Metals & Environmetal applications : Ag anode 45 kV maximum, 100 μA maximum
Detector : High-performance semiconductor
System Electronics : 400 MHz ARM 11 CPU 300 MHz dedicated DSP 80 MHz ASICS DSP for signal processing 4096 channel MCA 64 MB internal system memory/ 128MB interna
Display : Fixed angle, color, touch-screen display
Standard Analytical Range : 14 elements including all precious metals
Data Storage : Internal >10,000 readings with spectra
Data Transfer : USB, Bluetooth, and RS-232 serial communication
Security : Password-protected user security
Data Entry : Touch-screen keyboard User-programmable pick lists Optional wireless remote barcode reader

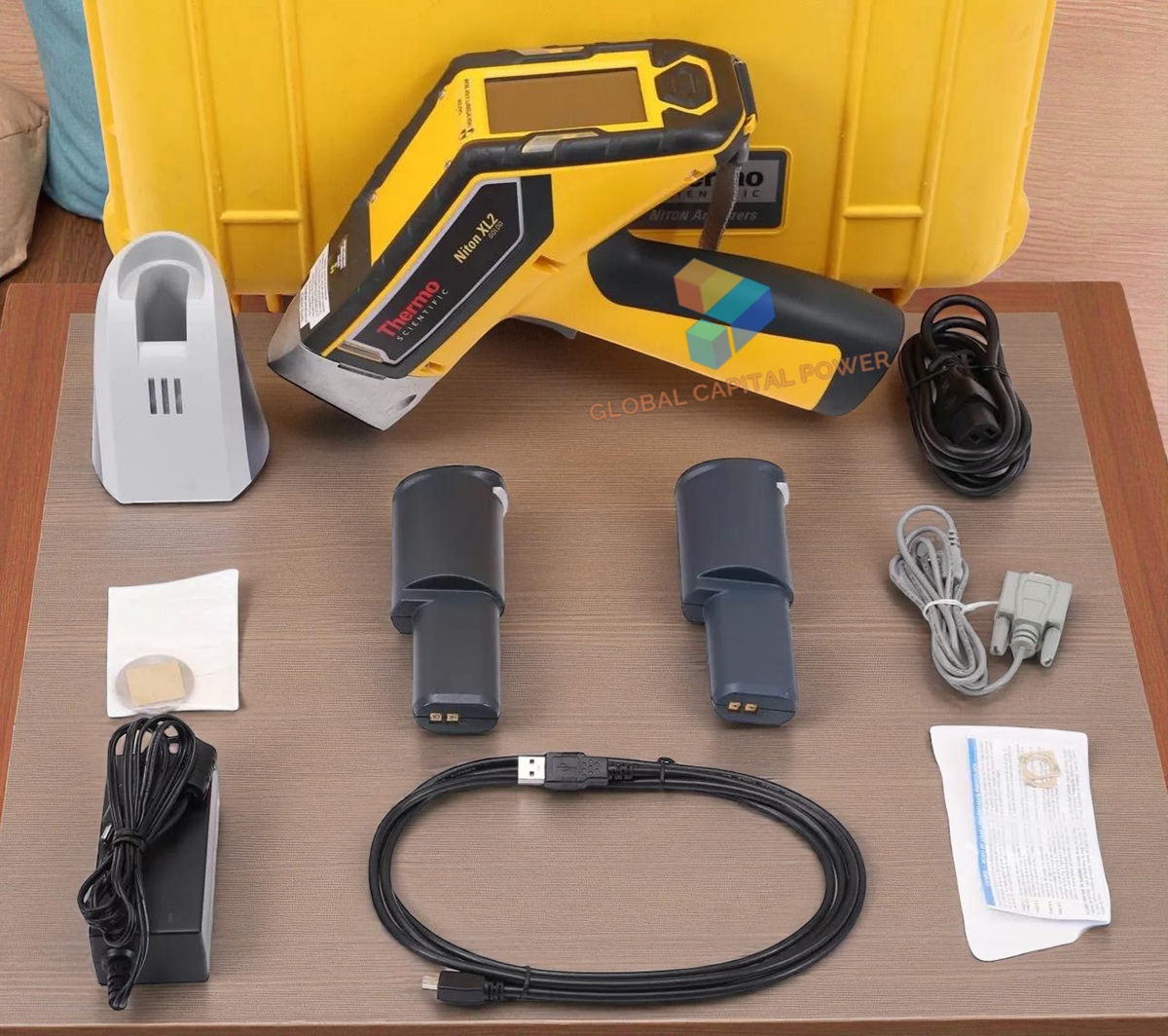

Standard Accessories and Features : Locking shielded carrying case Shielded belt holster One 6-cell lithium-ion battery pack 110/220 VAC battery charger/ AC adaptor PC connecti

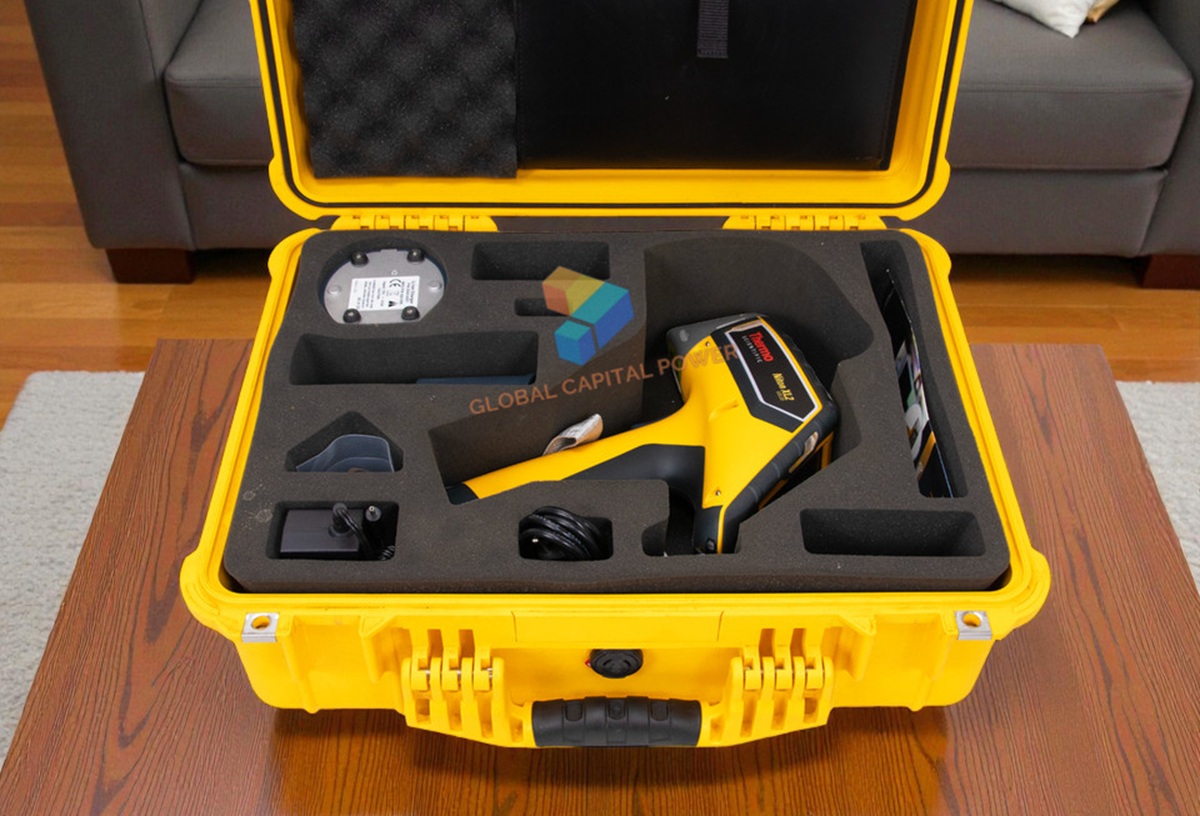

Optional Features and Accessories : Thermo Scientific portable test stand Additional battery pack Wireless portable printer Barcode scanner
Compliance : CE, RoHS
