Niton DXL Precious Metal Analyzer

Description

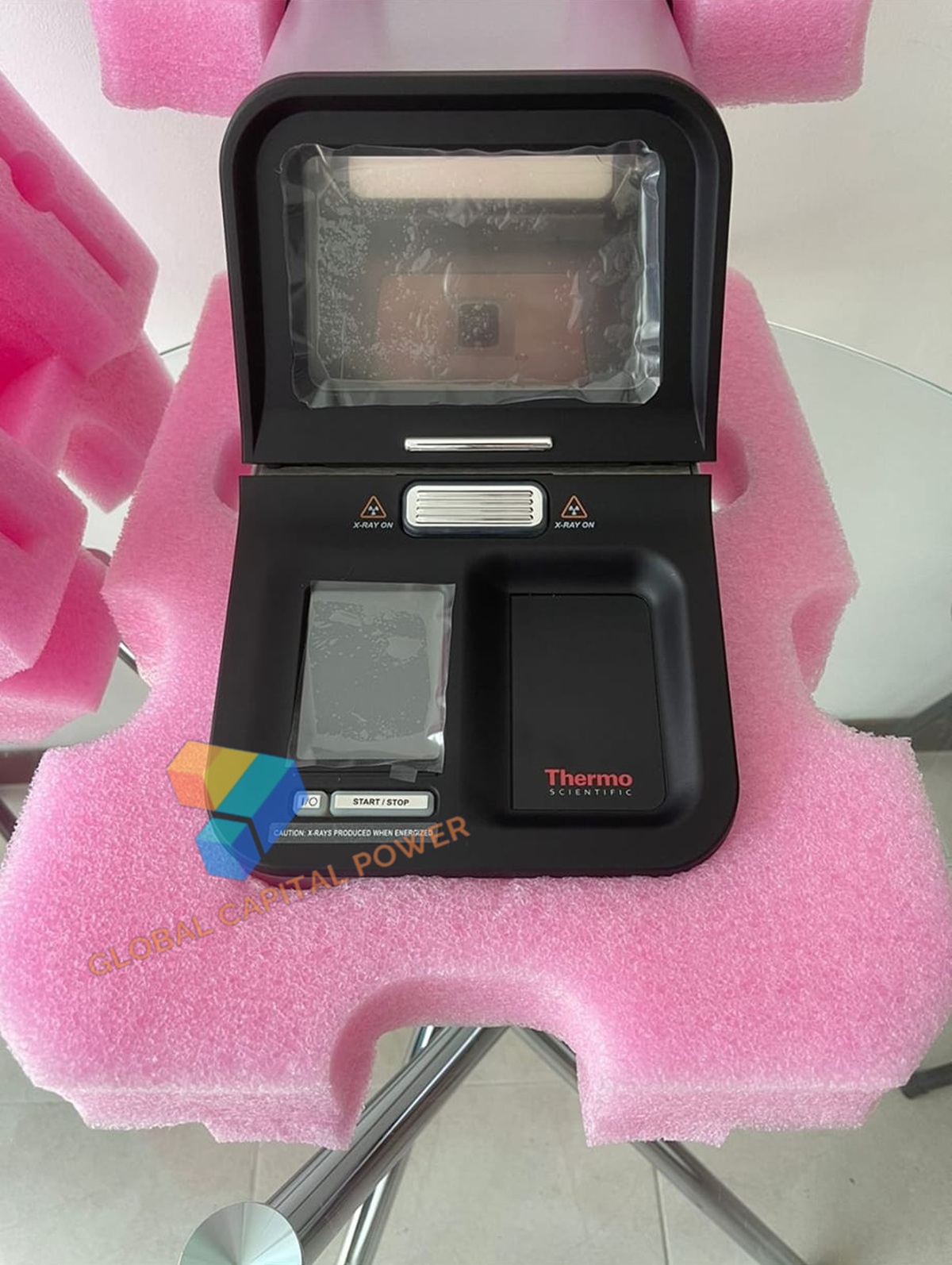

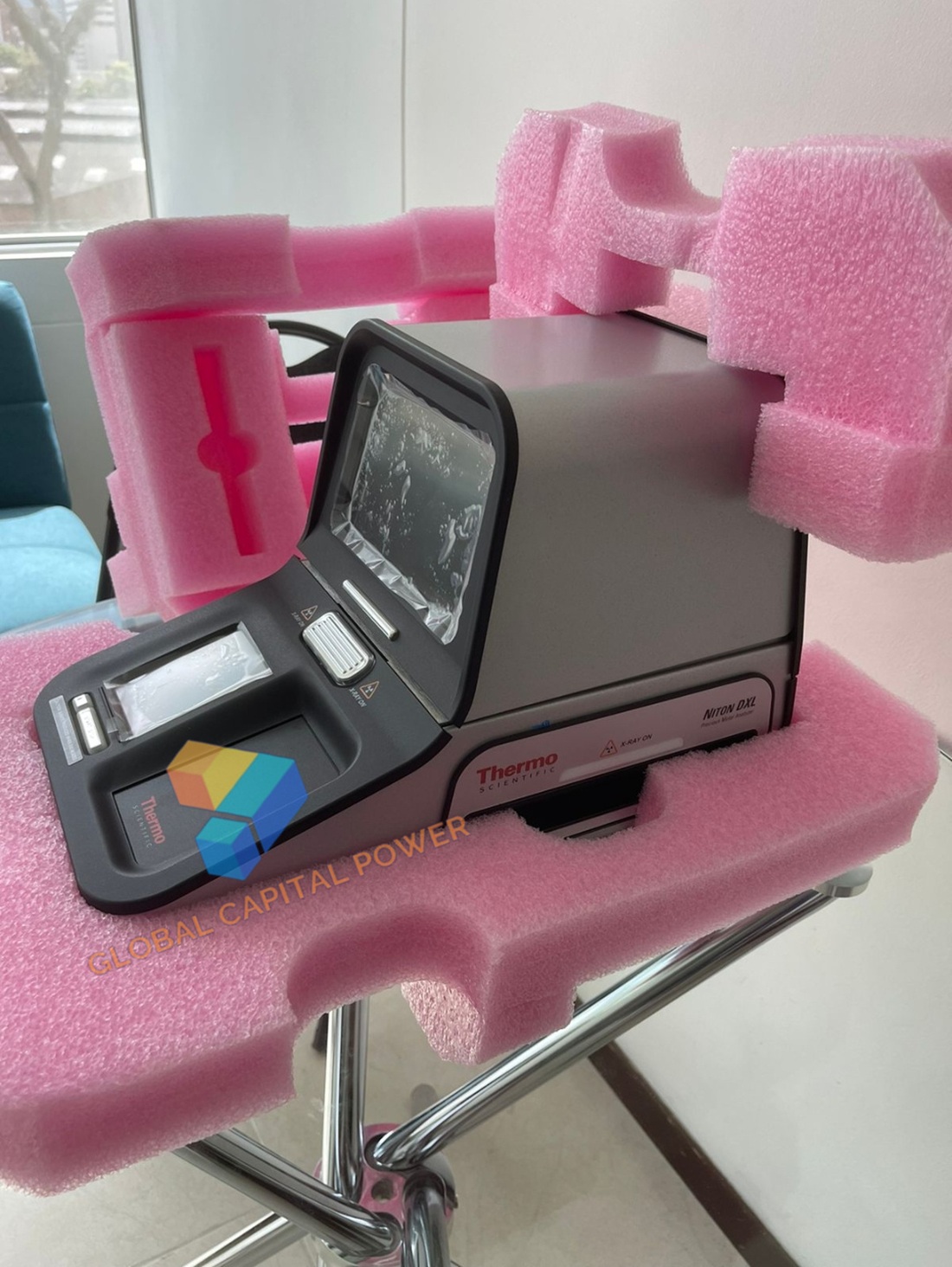

Niton DXL Precious Metal Analyzer

Niton DXL Precious Metal Analyzer countertop gold tester delivers an exceptionally fast and precise XRF-based analysis test for gold, silver, platinum and other precious metals. Elegantly designed specifically for countertop use in retail environments, yet portable and rugged for use in remote testing locations, the Niton DXL gold tester and precious metal analyser delivers quick, reliable results and is completely non-destructive. The gold testing kit tests the purity and chemistry of gold and other precious metals with unmatched simplicity, performance, features and portability.

Benefits

Completely non-destructive testing with instant analysis
Results shown on colour, touch screen display
Identification for 21 elements including all grades of gold and precious metals
Suitable for jewellery, coins, chains, rings, etc
Viewing windows both sides for visibility to client and operator
Push-of the-button simplicity of operation

Specifications

Weight : 17 lbs (7.7kg)
Outside Dimensions : 15.6 d x 8.1 w x 10.4 h in. (396 x 206 x 265 mm)
Test Chamber Dimensions : 6.9 d x 7.2 w x 5.2 h in. (172 x 184 x 133 mm)
Tube : Ag anode 45 kV maximum, 80 μA maximum
Detector : High-performance Si-PIN semiconductor
System Electronics : 400 MHz ARM 11 CPU
300 MHz dedicated DSP
80 MHz ASICS DSP for signal processing
4096 channel MCA
64 MB internal system memory/ 128 MB internal user storage
Display : Color touch-screen display
Standard Analytical Range : 21 elements including all precious metals
Data Storage Internal : >10,000 readings with spectra
Data Transfer : USB
Security : Password-protected user security
Data Entry : Touch-screen keyboard
User-programmable pick lists
Licensing/Registration : Varies by region. Contact your local distributor.
Compliance : CE, RoHS

DXL includes

Niton DXL unit
One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power)
Adapter
USB PC connection cable Niton Data Transfer (NDT™) PC software
8 mm measurement area
Internal CCD camera for precise sample positioning
Adhesive Tack for stabilization of samples
Spare puncture-resistant x-ray windows
3 mm small-spot focus feature
Additional battery pack
External battery charger
Locking shielded carrying case
