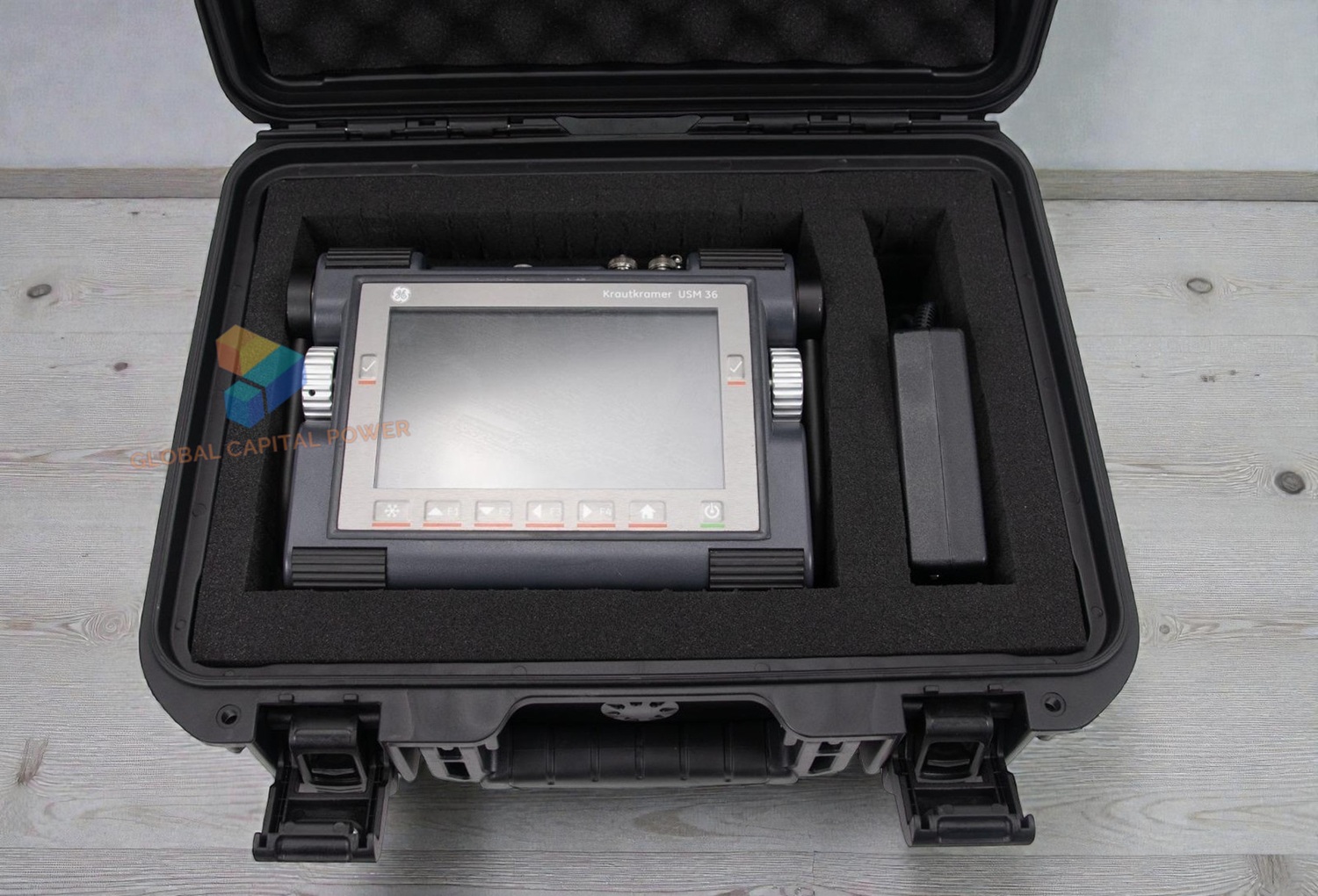

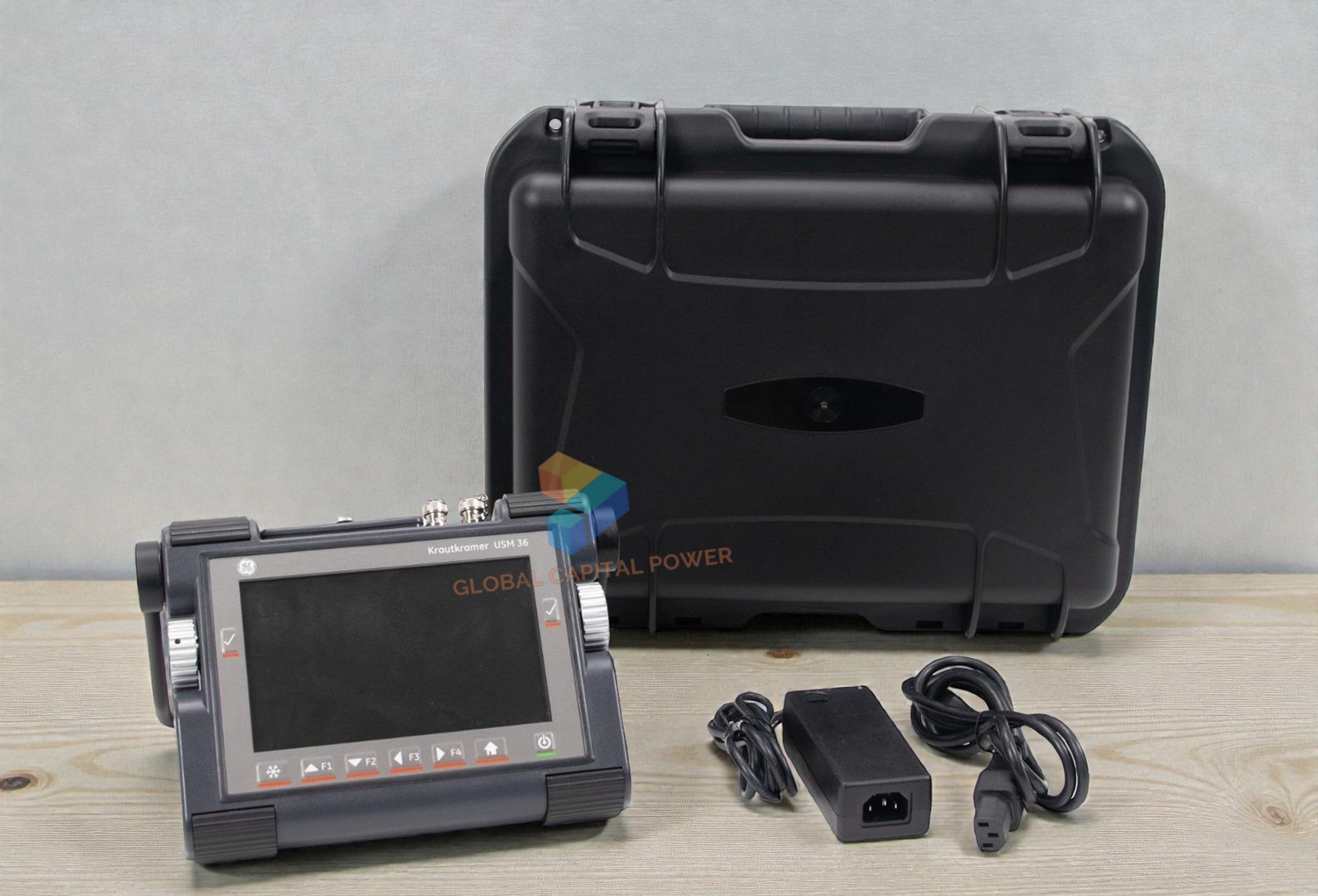

Krautkramer USM 36 Ultrasonic Flaw Detector

Description

Krautkramer USM 36 Ultrasonic Flaw Detector

Krautkramer USM 36 Ultrasonic Flaw Detector combines ergonomic and robust design and the biggest display screen of its class with state-of-the-art UT performance. It incorporates a range of innovative features to ensure that this new instrument is adopted as the everyday workhorse of flaw detectors by NDT inspectors globally.

Improved design with familiar functionality

Longtime users of the Krautkramer USM portable flaw detectors line will appreciate the familiar rotary knob of previous models. The new USM 36 combines familiar functionality with a streamlined 6-key dashboard design for intuitive use and nimble measurements in the field.

Ruggedly designed to stand up to harshest conditions

A tool that is equally at home in sandy deserts, frozen wastes and in the humid tropics. It is fully protected against dust and water ingress to IP66 and can be operated in ambient temperatures from -10°C to +55°C. Field operators will enjoy its’ lightweight design at just 2.2 kg and an operating life of more than 13 hours, with an integrated battery charger for longer shifts.

Advanced technology with unparalleled result

Available in three different versions to meet all inspection needs, including a powerful square wave pulser for excellent material penetration. Offers unrivaled inspection accuracy in sizing of flaws using the DGS method, as well the patented Phantom Echo Detection technology.

Features

7 inch LCD display, 800 x 480 resolution
More than 13 hrs of battery life
Pulser (EN12668 specifications):
Spike model;
120 to 300V
30 to 100 ns
SQ model;
120 to 300V, steps of 10V
30 to 500 ns, steps of 10 ns
50 to 1000 ohms damping
Color Leg Indicator in “live” A-Scan for Angle Beam Inspections
Intuitive 6 key keyboard
IP66 rated
Data can be stored on removable SD-card or USB memory stick

Applications include

Weld inspections in the power generation and petrochemical industries
Precise thickness measurement in the automotive industry
Corrosion measurement in the power generation
Inspection of forging
Inspection of special materials
