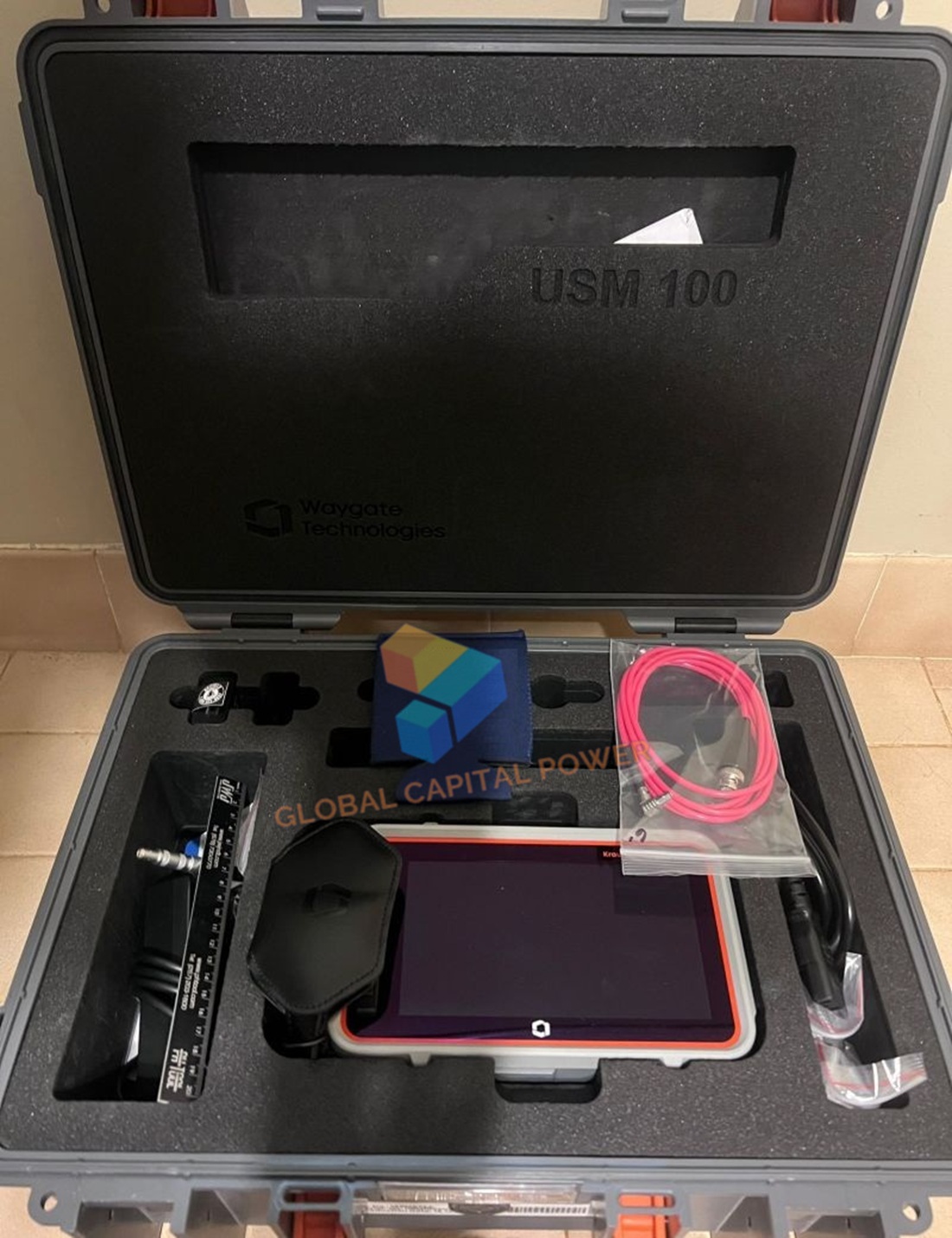

Krautkramer USM 100 Ultrasonic Flaw Detector

Description

Krautkramer USM 100 Ultrasonic Flaw Detector

Krautkramer USM 100 Ultrasonic Flaw Detector is lightweight and designed ergonomically for ease of use. It features a large touch screen and buttons that allow seamless ambidextrous operation. The glove-compatible, 7-inch LCD touch screen is viewable under any lighting conditions. The smart and intuitive user interface is easy to learn, customizable, and streamlines setup, training time and updates.

Highlights:

The Krautkrämer USM 100 builds upon the trusted ultrasonic features of the USM series, ushering flaw detection into a new era of accuracy and repeatability. Notable features include:

Averaging: Real-time averaging of A-Scans eliminates noise signals.

iOS App: Enrich ultrasound data with pictures and geolocation information.

Customizable filter: User-configurable filter settings.

IF Gate/3rd gate: Enables tracking of interface echoes for consistent time-of-flight (TOF) measurements.

Features

Gates
3 gates (one can be used as an interface gate)
Flank, peak, zero crossing before and after, J-flank and first peak measurement modes
Inches, mm, μs, %, dB measurement units
5-100% threshold
0 to 15000 mm (steel) start and width
2.5ns resolution of TOF
TCG, DAC, DGS, AWS, API measurement procedures

Efficient Hardware Design

The USM 100 is drop and vibration tested with an IP 67 rating, ensuring reliable performance in rugged environments. Its modern user interface reduces training time, allowing operators of all experience levels to quickly familiarize themselves with the device.

Connectivity

With inspection data being generated at a much higher rate than in years past, top notch data management and handling are no longer a nice-to-have but rather a prerequisite for efficiency. Built for an interconnected world, USM 100’s connectivity capabilities include:

Remote access & fleet management
Secure, cloud-based data management
Apps to customize workflow
Remote annual calibration to increase device up time

Superior Ergonomics

The USM 100 prioritizes user comfort during extended use. Its ergonomic design features include:
Lightweight and ambidextrous operation.
Eye-friendly, glove-compatible 7″ LCD touch screen for easy viewing in any lighting or weather conditions.
Intuitively placed buttons for convenience.
