K-Laser Cube Plus 30 Medical Laser Therapy

Description

K-Laser Cube Plus 30 Medical Laser Therapy

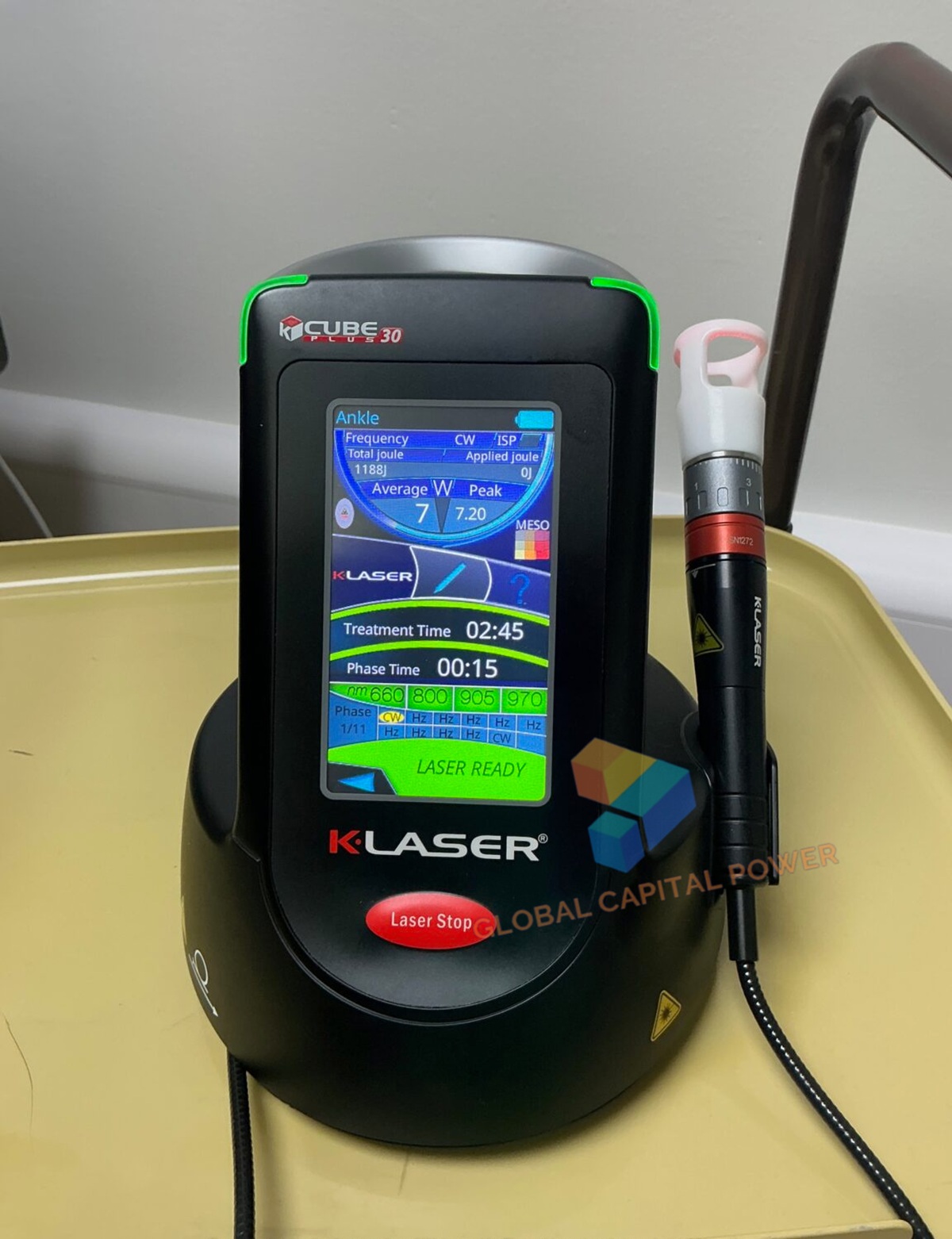

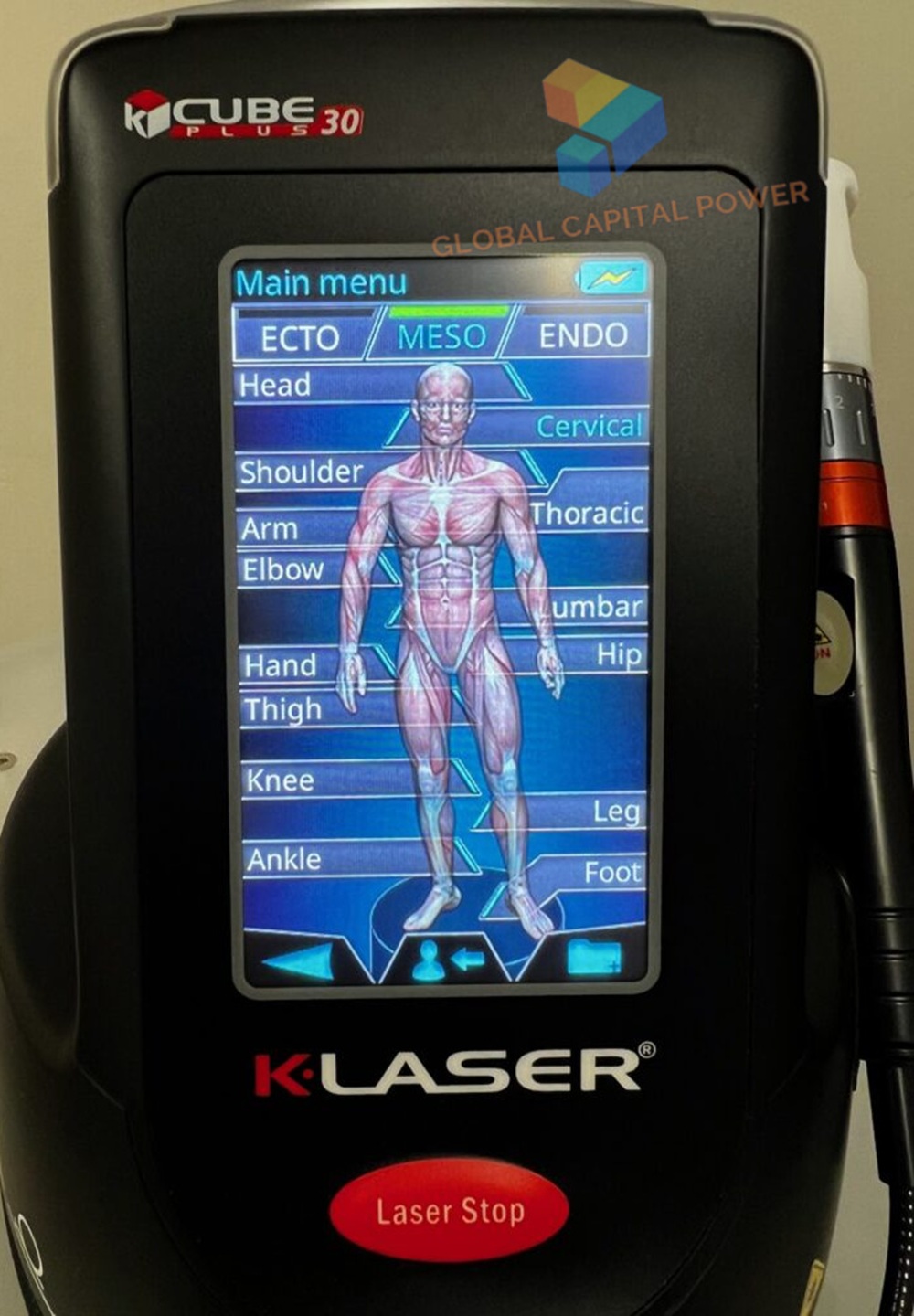

K-Laser Cube Plus 30 Medical Laser Therapy, High Power Laser (HPL) raises the standard for physical rehabilitation treatment options. This HPL Technology offers fast, painless and non-invasive treatments as an alternative solution to drugs. Cube Plus 30 is a lightweight and transportable device designed to be highly intuitive, with an interactive screen to serve as a guideline for treatment options, and with a smart handpiece sensor detecting the practitioner’s hand motion. With its distinctive characteristics, Cube Plus 30 offers an ideal solution in post-surgery rehabilitation and in rehabilitative therapy treatments.

Features:

30W ISP / 25W CW
New smart handpiece
Thicker, more durable fiber
Active distal handpiece with Active Photonics Modulation (APM)
Flexible treatment modes: by phases or by effects
Advanced bidirectional cooling system
Four wavelengths for comprehensive tissue stimulation and deeper penetration
Ultra-portable at just 1.5 kg
Long-lasting rechargeable nano-phosphate battery
Compact dimensions: 200 x 180 x 190 mm

Output Modes

A K-Laser can output all modes:
Continuous Wave (CW)
Pulsed Wave (PW)
Intense SuperPulse (ISP)

Benefits:

Provides the ability to:
Target Pain
Target Inflammation
Promote Tissue Healing
Enhance Performance & Recovery

Technical Features

The technical features of laser therapy devices play a crucial role in their effects and efficiency.

K-Laser units are specifically designed to excel in every parameter, enabling practitioners to configure and reproduce settings used in any publication related to Low Level Laser Therapy (LLLT) or High Intensity Laser Therapy (HILT).

By utilising different configurations, practitioners can effectively target specific conditions and enhance treatment outcomes.

Wavelengths

Several specific wavelengths are used simultaneously in order to produce PhotoBioModulation effects. e.g. Cube-4-Plus: 4 wavelengths, 970 905 800 660 nm

Intense SuperPulse (ISP)

The SuperPulse (SP) pulsing mode is a feature that enables the laser diodes to emit a high peak power for a few nano-seconds, which increases penetration depth and allow the treatment with darker skin types.

The K-Laser can emit IntenseSuperPulse (ISP), which provides greater therapeutic benefits than basic SuperPulse waves.

Max Average Power

A laser device’s maximum average power represents the real power of the unit. The higher the average power the shorter the treatment times and the greater the energy transfered to deep tissues. e.g. Cube-Plus-30: 25W average power.

Max Peak Power

The peak power only exists during SuperPulse mode. The maximum peak power is achieved for a brief duration of a few nanoseconds when a diode operates in SuperPulse Mode. e.g. Cube-Plus-30: 30W

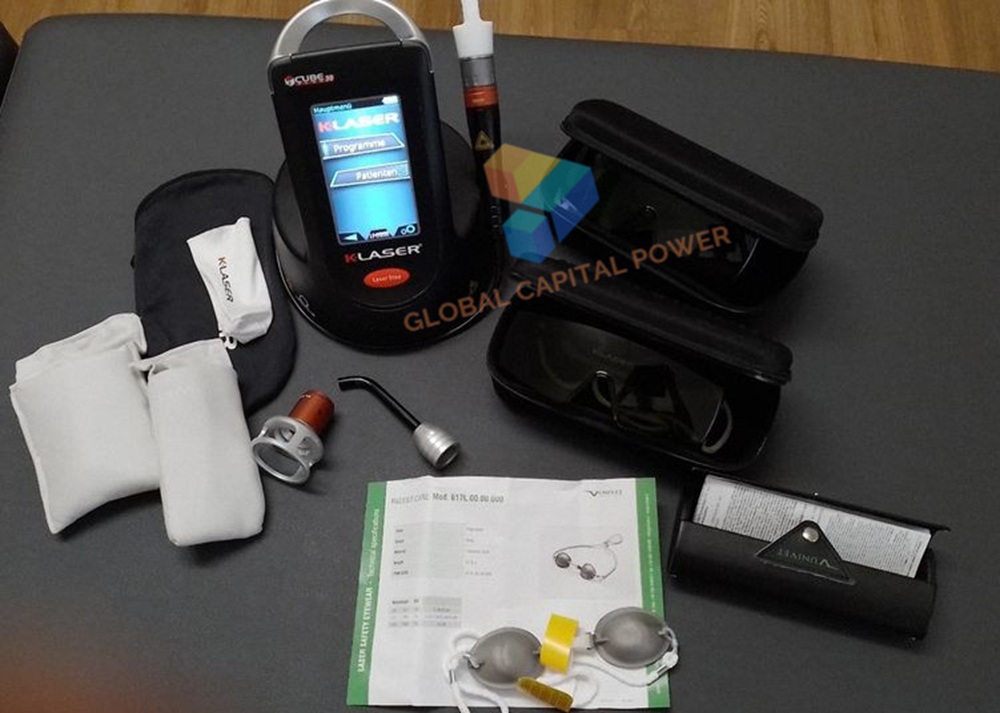

Inluded Accessories

Protective Goggles for patient
Protective Goggles for operators
APM distal
K-Laser Optic Plus: 12cm²
ENT Fiber
Aluminuim Transport Case
K-Laser Trolley
