Ivoclar Vivadent PrograMill PM7 Dental Milling System

Description

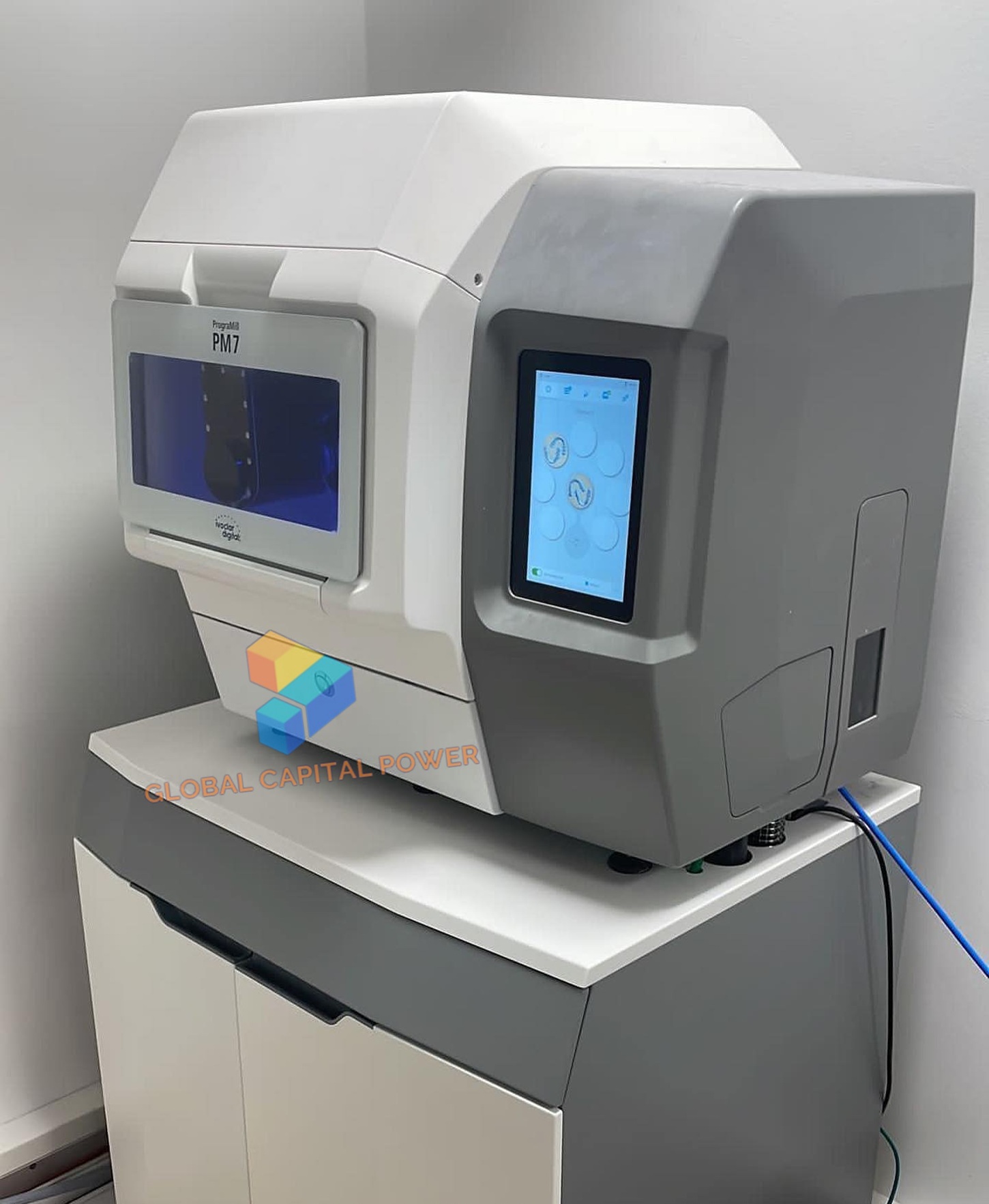

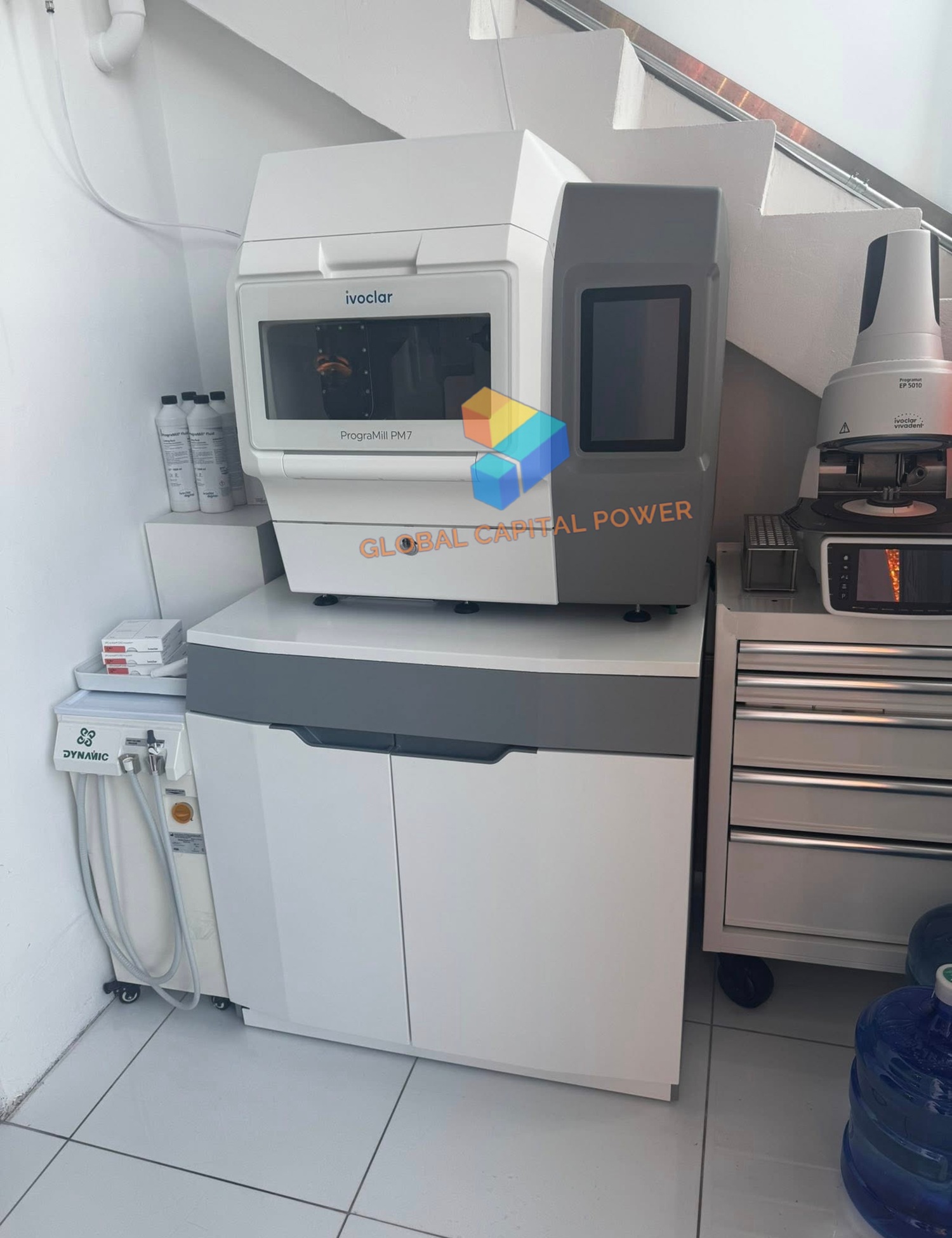

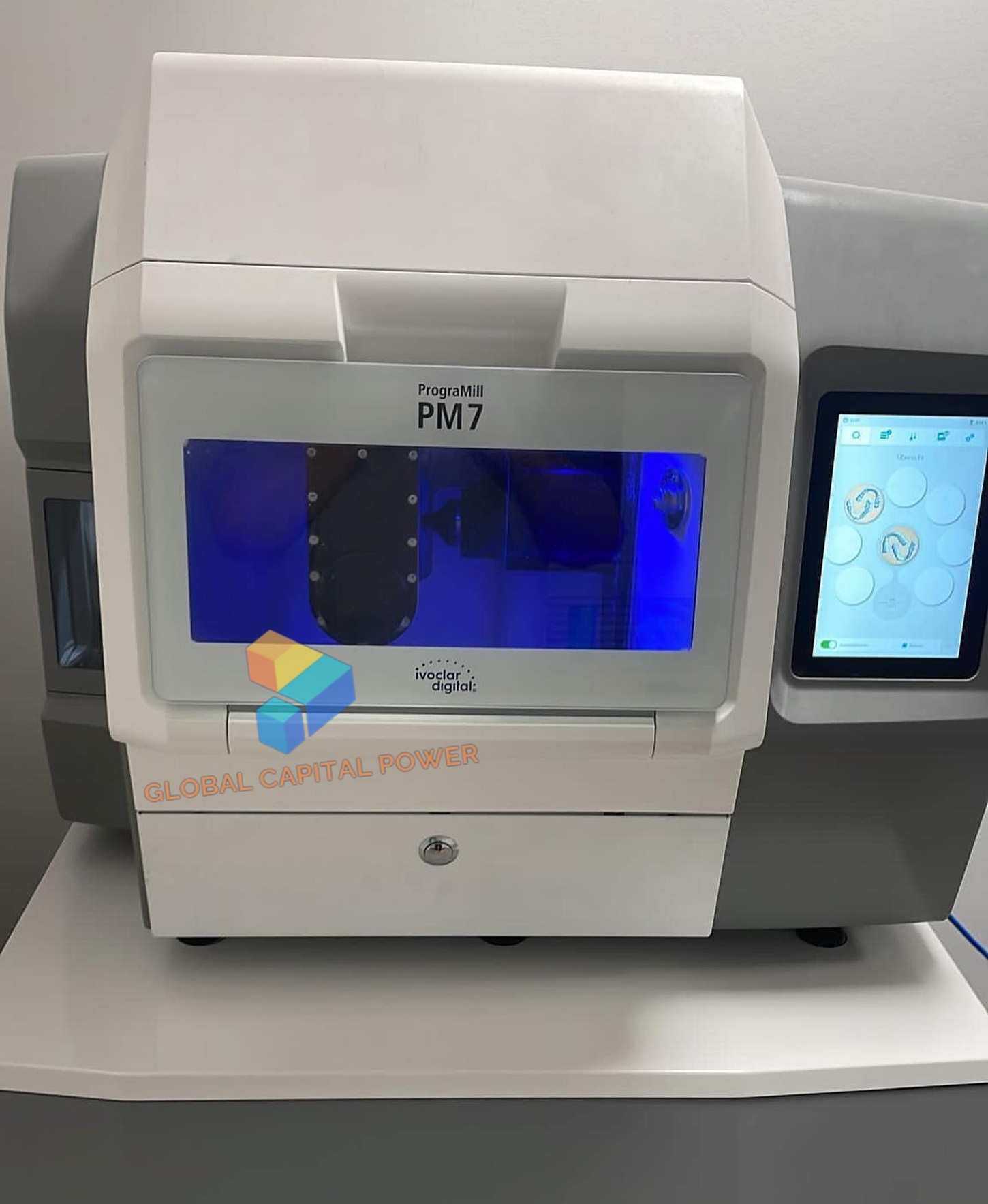

Ivoclar Vivadent PrograMill PM7 Dental Milling System

Ivoclar Vivadent PrograMill PM7 Dental Milling System that mills dental restorations on the basis of 3D data. It is capable of milling a wide variety of materials in both a wet or dry state. It covers a broad spectrum of applications, ranging from single tooth restorations to complete dentures. A high-resolution 10.1” touch screen enables easy operation. The convenient user-centered operation, icon-based menu structure and state-of-the-art visual design all combine to ensure intuitive handling and comfortable organization of the job orders.

High-performance PrograMill PM7 is the right choice for you. This machine is suitable for a versatile variety of materials and applications in wet and dry operation.
Equipped with a high-performance spindle, the high-power 5-axis milling machine efficiently produces restorations that are distinguished by their outstanding surface quality and excellent accuracy of fit.

Benefits

Minimal cleaning effort
In-built ioniser: neutralizes the static charge of the acrylic shavings produced when processing PMMA (e.g. Ivotion) so that these shavings can be easily evacuated
Automatic self-cleaning function due to Active Air Suction

Autonomous operation
Automatic change between wet and dry operation (hybrid operation)
20-position automatic tool changer
8-way material changer (for up to 8 discs and 48 blocks) and fully automated material management based on RFID technology

Intuitive operation
Integrated user interface with touchscreen display
Straigthforward material and tool management
Clearly structured job management

Maximum performance
Highly dynamic and productive operation based on servo drive technology and high-performance spindle
Full variety of materials and applications due to simultaneous 5-axis kinematics
970 Watt power for precision results

Indications overview

Veneers / occlusal veneers
Inlays / onlays / partial crowns
Full-contour crowns
Full contour bridges
Crown copings
Bridge frameworks
Multi-unit bridges
Tooth segments
Denture bases
Digital complete dentures
Primary Telescopes
Functional try-ins
Impression trays and functional trays
Bite templates / transfer templates
Drilling templates
Occlusal splints
Models
Abutment Solutions

Features of this product

Block processing
Disc processing (Ø 98.5mm)
Automatic material changer
Automatic tool changer
Colour touchscreen

Specifications of this product

5-axis milling technology
Harmonic drive
Servomotors
Zero-point clamping system
Ioniser
Weight: 220kg
Dimensions: 818mm (H) x 979mm (W) x 695mm (D)
