Hitachi Vulcan Expert Handheld LIBS Analyzers
Original price was: $15,240.$7,620Current price is: $7,620. & Free Shipping
For Sale – Hitachi Vulcan Expert Handheld LIBS Analyzers
One of the fastest metals analyzers available today. All you have to do is squeeze the trigger to receive results in one second.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

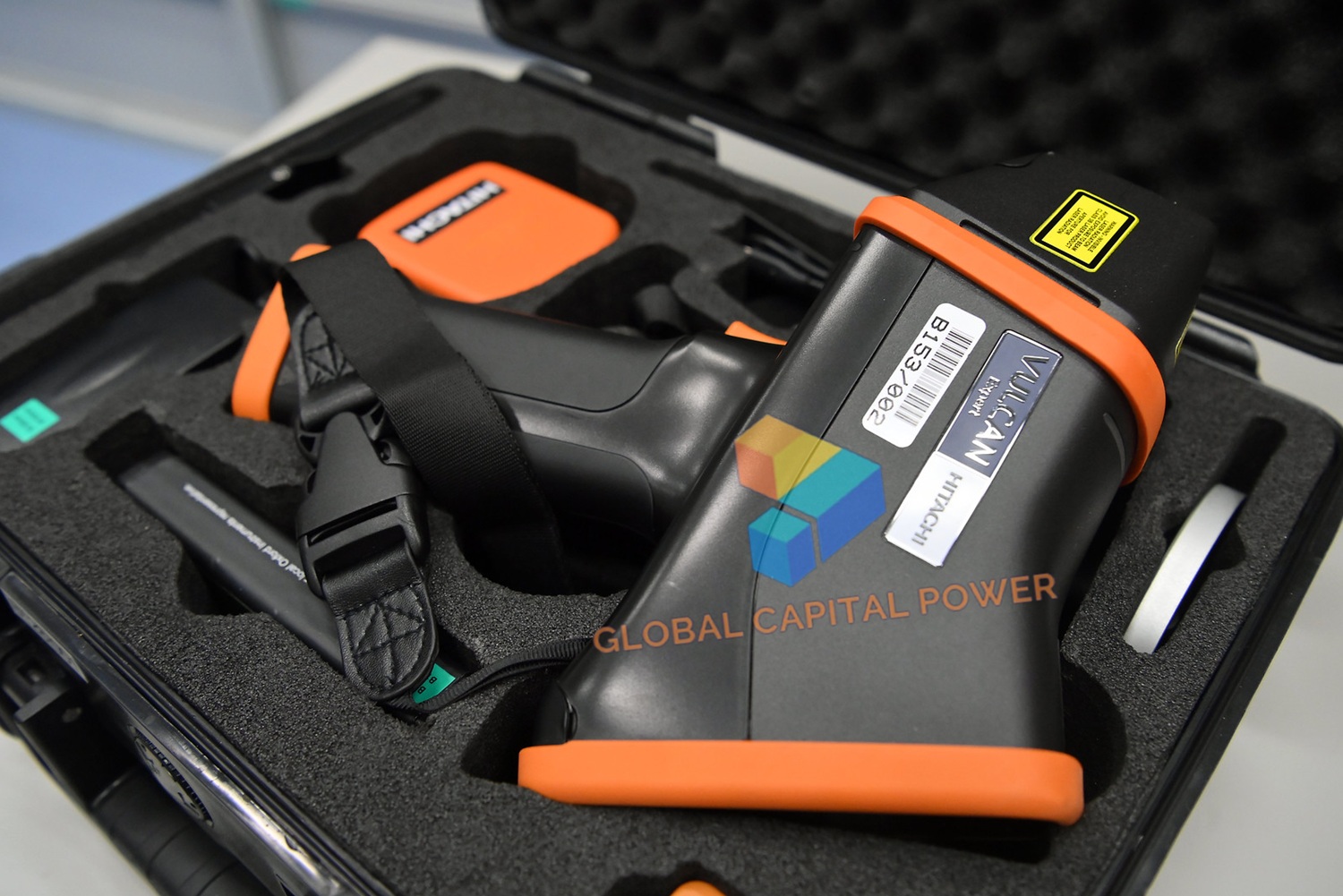

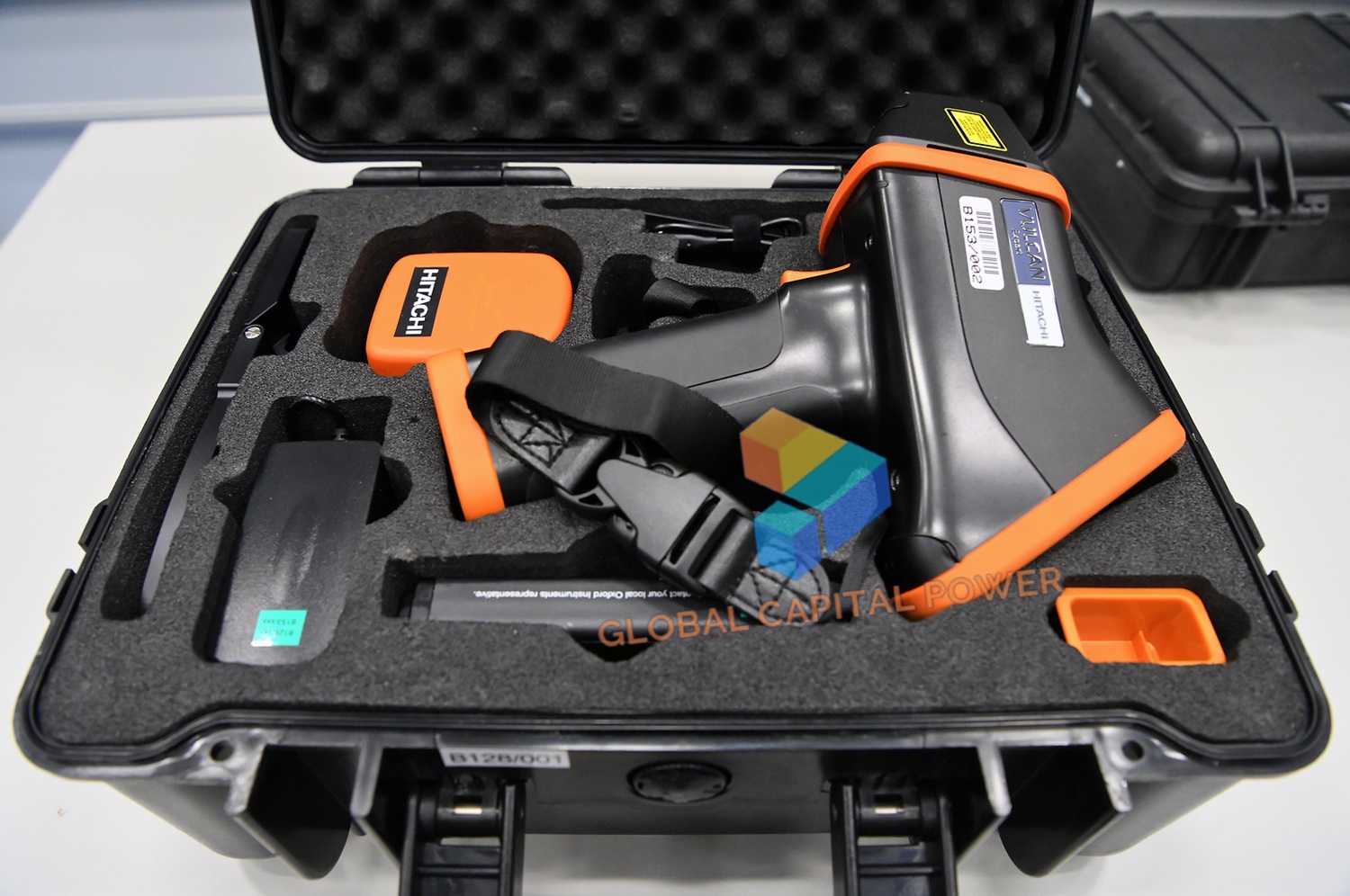

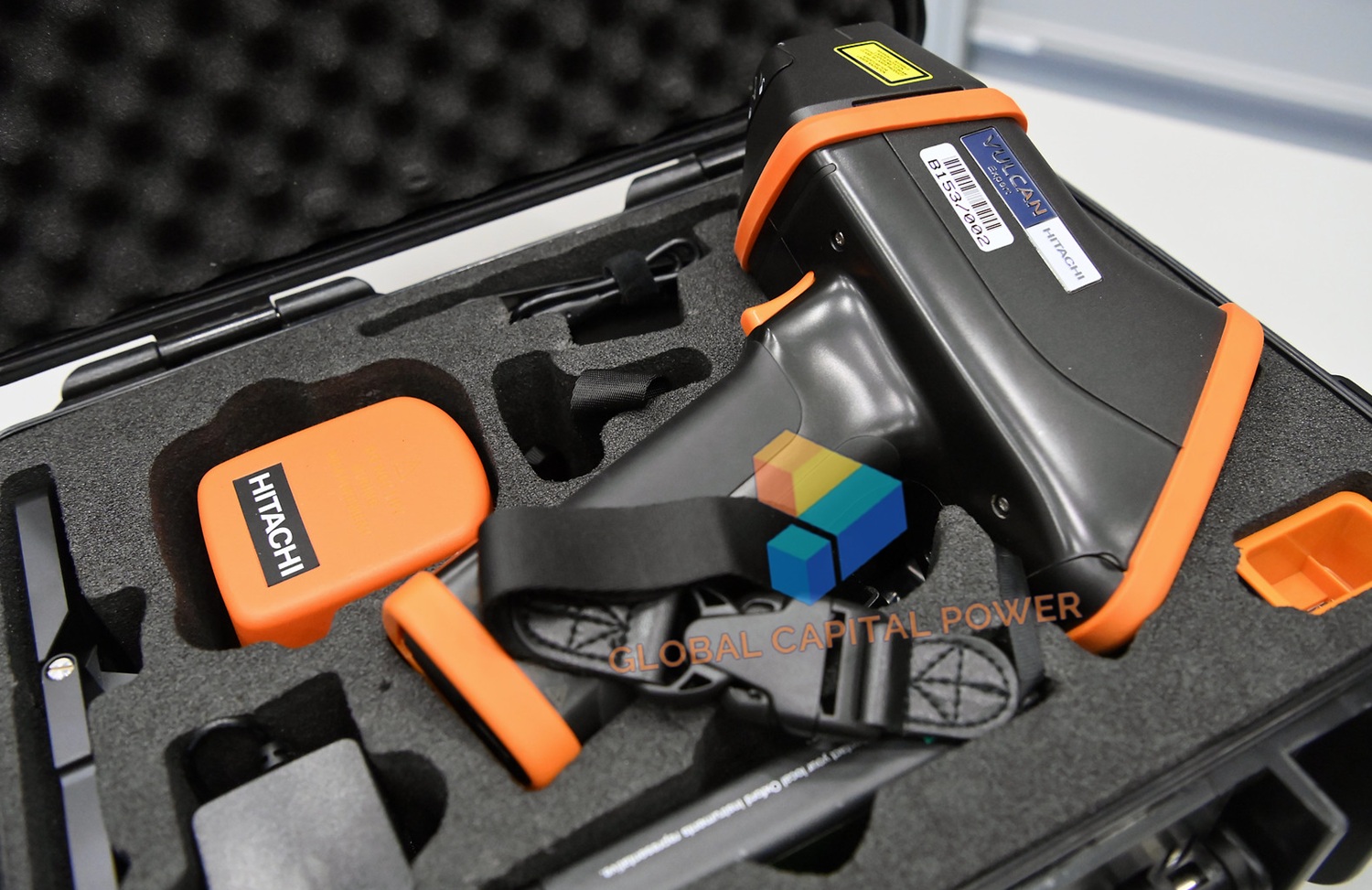

Hitachi Vulcan Expert Handheld LIBS Analyzers
Hitachi Vulcan Expert Handheld LIBS Analyzers portable metal analyzer using LIBS technology is increasingly used to quickly test of elements with a measurement time of only 1 second.
Leaving only a tiny burn mark on the sample, the Vulcan Expert spectrometer has proven to be the fastest, safest, non-destructive testing device on the market today.
The Vulcan allows you to identify and analyze a wide range of alloys including:
Aluminum
Magnesium
Titanium
Cobalt
Chromium
Nickel
Copper
Stainless steel
Tool steels
Low Alloy Steels
Other Information
With two different models, the Vulcan Smart and Vulcan Expert, you have a choice in cost-effective solutions to identify steel and nickel Alloys and receive results in a second. The Vulcan handheld laser analyzer come with up to 1500 per-installed grades. AISI, DIN, JIS and GIB libraries are included as standard. You can easily modify the existing libraries as well as add your own custom libraries.
Specifications
| Operating voltage | |
| Input voltage: | 12 – 15 VDC. |
| Working temperature: | 0º C – 40º C |
| Humidity: | 20% – 90% |
| Protection standards: | IP54 (NEMA 3) and MIL-STD-810G. |
| Laser Source | |
| Average power: | < 0.45W |
| Wavelength: | 1064 nm |
| Meets standards: | 21 CFR 1040. |
| Screen | |
| Screen: | DragontrailTM scratch-resistant, impact-resistant touch screen |
| Optical glass is protected by: | Sapphire glass |
| Connect | |
| Using wifi connection standard: | 802.11b/g |
| Data transmission: | USB port |
| Bluetooth: | 802.11n standard |
| Language used: | Includes 13 different languages. Safety instructions are saved directly on the device for use when needed. |
| Report: | saved in CSV or PDF format directly on the computer and Cloud Server and accessed from other computers via ExTOPEConnect software. |
| Calibration | |
| Analyze alloys such as: | Aluminium (Al), Titanium (Ti), Cobalt (Co), Copper (Cu), Lead (Pb), Magnesium (Mg), Nickel (Ni) and Tin (Sn), Stainless Steel, Tool Steel and Low Alloy Steel. |
| Detection limit: | 0.02 – 0.2% depending on element and material base. |
| Machine standard set | |
| Quick Guide to Vulcan Devices | |
| Battery charger | |
| High pin Li-ion | |
| USB (including User Manual and Quick Guide) | |
| Cleaning kit | |
| Fastener | |
| Wristband | |
| Al 7075 Standard for Vulcan Expert | |
| SS 316 standard for Vulcan Smart | |
| Computer case | |
| Size – Weight | |
| Size: | 97mm x 291mm x 274mm (WxLxH) |
| Weight: | 1.3 kg (excluding battery) |
