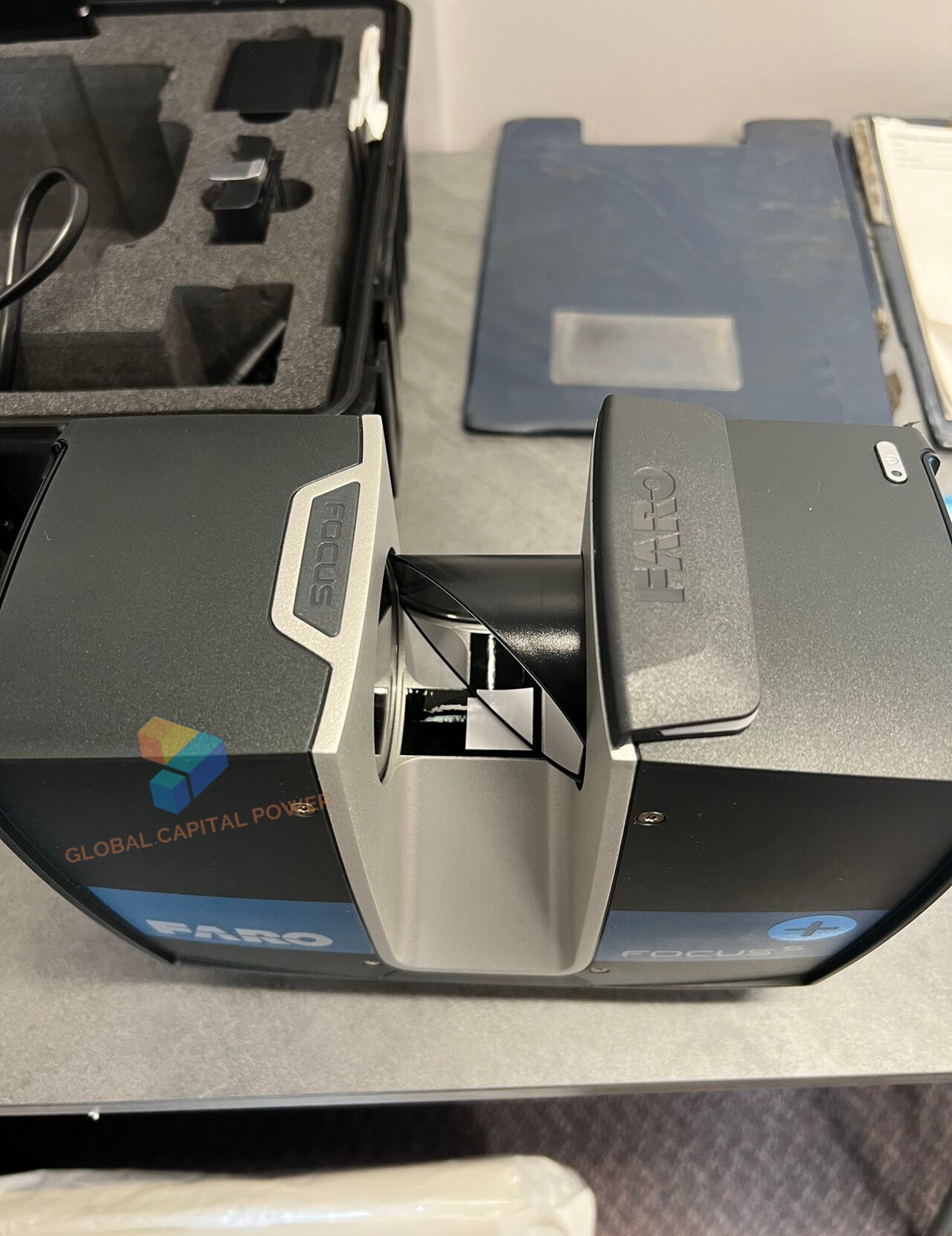

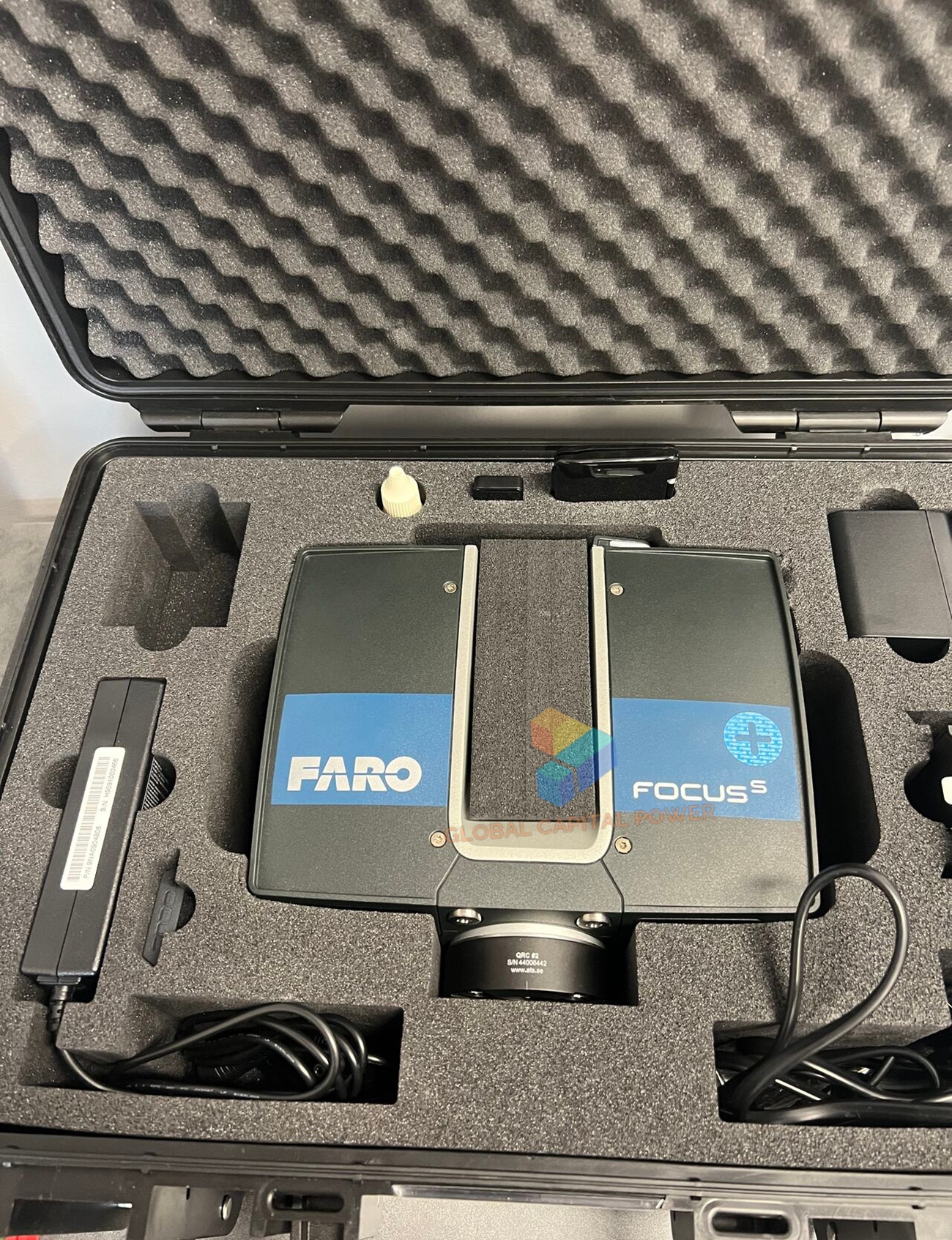

FARO Focus 350S Plus 3D Scanner

Description

FARO Focus 350S Plus 3D Scanner

FARO Focus 350S Plus 3D Scanner is specially designed for outdoor applications due to its small size, extra light weight and extended scanning range. The FocusS 350 provides scanning results even in challenging environments, narrow job-sites, dusty or humid areas, in rain or direct sunlight applications. An on-site compensation tool allows data quality optimization on-site. Integrated GPS & GLONASS receiver enable easy positioning. HDR imaging and HD photo resolution ensure true-to-detail scan results with high data quality.

Distance accuracy up to ±1mm
Range from 0.6m up to 350m
IP Class 54
On-Site Compensation
Accessory Bay
HD photo overlay up to 165 megapixel color

Features

Range: From 0.6 m to 350 m
Distance: Accuracy of +/- 1 mm
Measuring: Speed up to 2,000,000 points/sec
HDR photos: up to 165 megapixels
Laser class: 1
Dimensions: 230 x 183 x 103 mm
Weight: 4.2 kg
Extended operating: Temperature range from -10 °C to + 55 °C
Storage: On standard SD cards
Integrated sensors: GPS / Glonass, leveling, height sensor, compass
Scanner control: Via touch screen or mobile device (WLAN)
On-site compensation: Automatically improve the compensation
On-site registration: Automatic transfer processing on a laptop/tablet accessory interface

Key benefits of the new Focus S Plus series

More efficient scanning process thanks to faster and more reliable on-site registration
Display of the scan progress thanks to status indicator
Tolerance control of the results at the touch of a button
Reliable data thanks to reduced noise

HDR Laser Scanner

The HDR laser scanner models record HDR imagery. HDR means high dynamic range and is a technique to capture images with multiple exposure rates and merging them into a single HDR image layer. This HDR image provides additional details in dark or bright areas, which would have been lost in a standard image. These HDR images will be mapped onto the point cloud data generated by the laser scanner.

Main benefits:

Reliable life-like visualization, even under extreme lighting conditions and large distance
Safe and fast as-built data capturing with superior colour detail
Reduced complexity by integrated scanning and imaging workflow for all kinds of scanning tasks
