Everest Mentor Visual iQ+ HD VideoProbe

Description

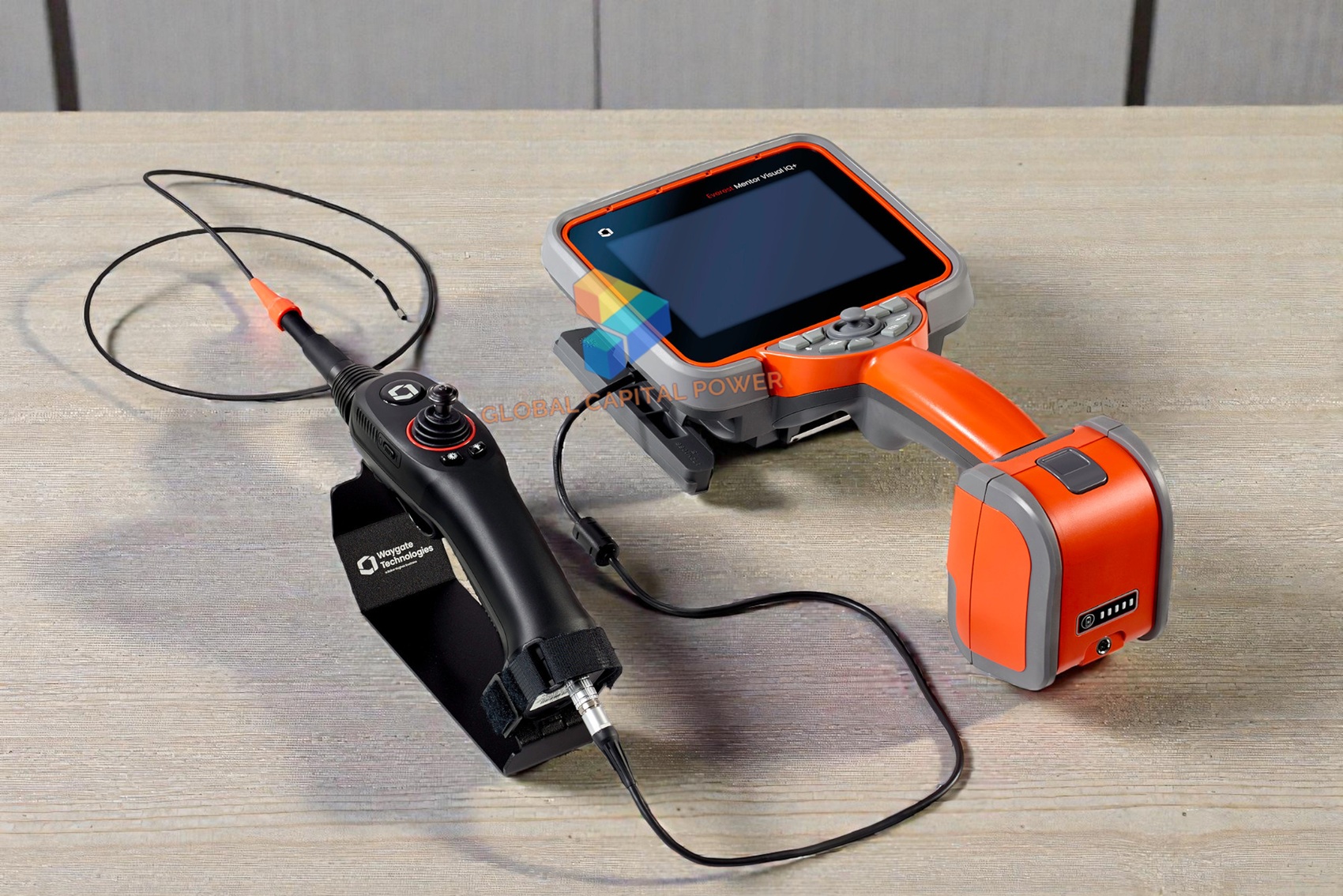

Everest Mentor Visual iQ+ HD VideoProbe

Everest Mentor Visual iQ+ HD VideoProbe is equipped with an upgraded central processing unit (CPU) that allows for simultaneous execution of advanced analytics, tools and features, coupled with a 10% extension in battery life.

Its functionalities encompass:
The redesigned housing provides a robust and adaptable functionality.

High-definition visual inspections
Simultaneous recording of HD video and
Images
Generating 3D asset representations with precise measurements
Stitching multiple 3D views
Blade counting
Object and defect recognition
Streaming video with control on iOS or Android devices
Wi-Fi and Bluetooth connectivity for local and cloud data transfer as well as hands-free use

A Closer Look at MViQ+

Designed with complex inspection applications in mind, the Everest Mentor Visual iQ+ video borescope meets the highest standards in image quality, 3D measurement capability, and and workflow automation.

Features

Available as a basic Start, Enhance, or Pro package
Voice control of device using any available audio input (internal microphone, USB audio, or Bluetooth)
User storage:
Start: 40gb
Enhance: 80gb
Pro: 160gb
6.5in active matrix XGA color LCD, daylight readable display
Dual-band Wi-Fi and Bluetooth 4.0 enabled
212°F (100°C) max operating temp

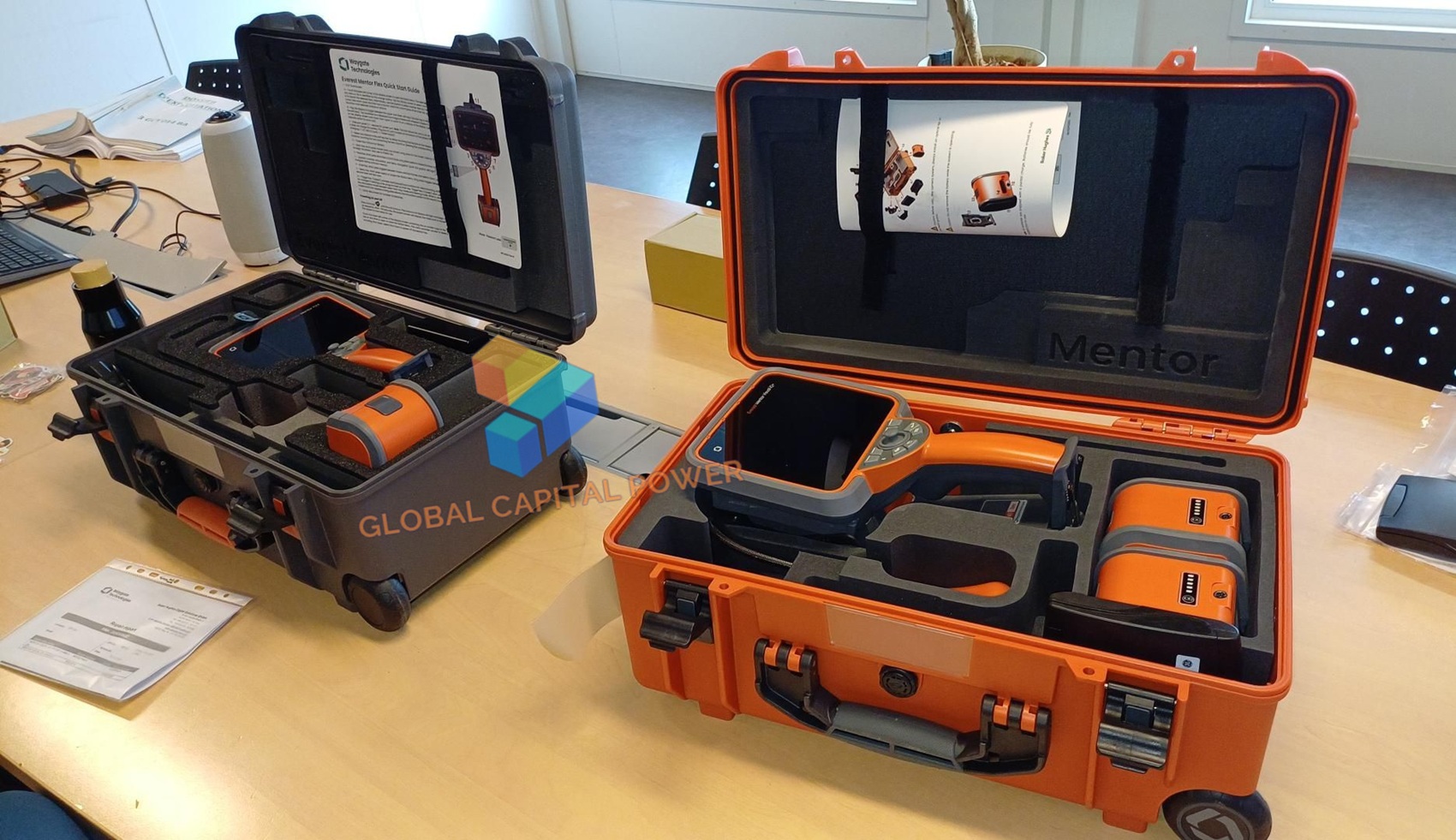

Rolling carry-on case or large work station model
IP65, MIL-STD-810H, and MIL-STD-461G standards

New with 3D Stitching

2X Faster: users can leverage the MViQ+’s increased processing power to run more features simultaneously.
Increased Image Limit to 10: the MViQ+ can now handle composite images consisting of up to 10 images where the original MViQ had a limit fo 5.
Optimized Algorithms for Improved Point Matching: we are constantly improving our stitching algorithms to give users even more increased performance.

Advanced 3D Inspection Software​

Real3D measurement combines fully surfaced point cloud visualization, advanced measurement algorithms and an insightful 3D Surface Mask to enable more accurate and repeatable measurement decisions. Choose from Real3D Stereo or 3D Phased Measurement which allows measurement on-demand without changing tips.​

​Each of these technologies is compatible with some or all measurement types to help get the measurement needed in every application. They include basics like length, depth point to line and area, but also specialty types including missing corner area, area depth profile, automatic blade tip clearance and radius gauge for boro-blending assessment.

Aside from measurement types, Real3D provides advanced tools such as depth assist and measurement plane to further increase accuracy of measurements.
