Easy-Laser XT660 Shaft Alignment System

Description

Easy-Laser XT660 Shaft Alignment System

Easy-Laser XT660 Shaft Alignment System allows you to display alignment data on different handheld devices such as tablets and smartphones, including Easy-Laser XT ergonomic and rugged, IP66/67-approved shockproof alignment computer, which includes a built-in 13MP camera for documentation and HDMI video output.

Features

Dual Beam, 1 axis dot laser system for longer spans and complex measurements
Machine Train with 3 machines/2 couplings
Measure Base twist
Multi-Point and Continuous Sweep measurement methods
Digital Belt Alignment Tool XT190 Integration
Vibrometer Tool, XT280, Integration
Built-in Thermal and Digital Camera on XT12 display
The free XT Alignment app runs on Android and iOS devices with all functions included.
Measurement Range up to 20m
Shaft Diameters up to 250mm and with extension chains up to 450mm.

Key strengths of XT660

Dot laser technology provides high accuracy.
Multiple measurement methods, including continuous sweep and multipoint.
Rugged design (IP66 and 67).
Automatic documentation of alignment results.
Cross-platform compatibility: Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.

Horizontal machines

The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.

Display Unit

Name:XT11
Type of display/size:VGA 8” colour screen, backlit LED, multitouch
Internal battery (fixed):Heavy duty Li Ion chargeable
Connections:USB A, USB B, Charger, AV
Operating temperature:-10–50 °C
Storage temperature:-20–50 °C
Communication:Wireless technology, WiFi
Relative humidity:10–95%
OLED display:96×96 pixels
Camera:13 Mp, with diode lamp
IR camera (optional):FLIR LEPTON® (0–450 °C, 32–842 °F)
Help functions:Built-in manual
Environmental protection:IP class 66 and 67
Housing material:PC/ABS + TPE
Dimensions:WxHxD: 274x190x44 mm [10.8×7.5×1.7”]
Weight (without batteries):1450 g [51.1 oz]
Operating time:Up to 16 h continuously

Measuring Units

Name:XT60-M / XT60-S
Communication:BT wireless technology
Type of detector:1 axis TruePSD 20×20 mm [0.79×0.79″]
Resolution:0.001 mm [0.05 mils]
Measurement accuracy:±1µm ±1%
Measurement range:Up to 20 m [66 feet]
Type of laser:Diode laser
Laser wavelength:635–670 nm
Laser class:Safety class 2
Laser output:<1 mW
Electronic inclinometer:0.1° resolution
Environmental protection:IP class 66 and 67
Operating temperature:-10–50 °C
Storage temperature:-20–50 °C
Relative humidity:10–95%
Housing material:Anodized aluminium + PC/ABS + TPE
Dimensions:WxHxD: 76×76.7×45.9 mm [3.0×3.0x1.8″]
Weight:272 g [9.6 oz]
OLED display:128×64 pixels
Operating time:Up to 24 h continuously

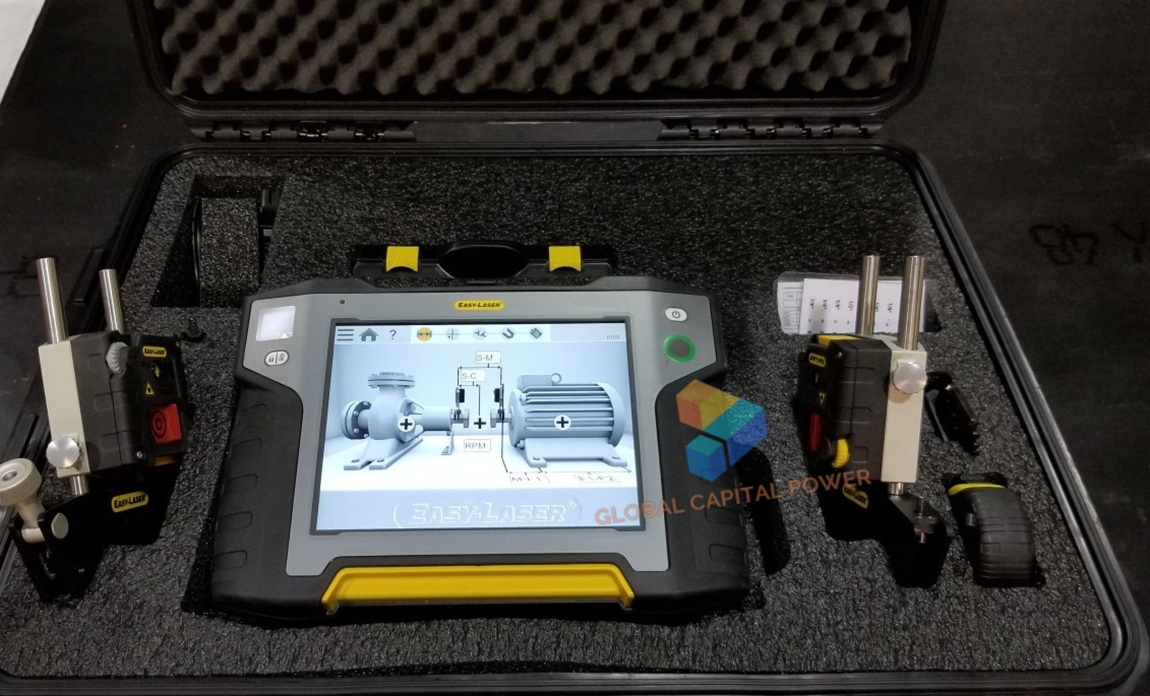

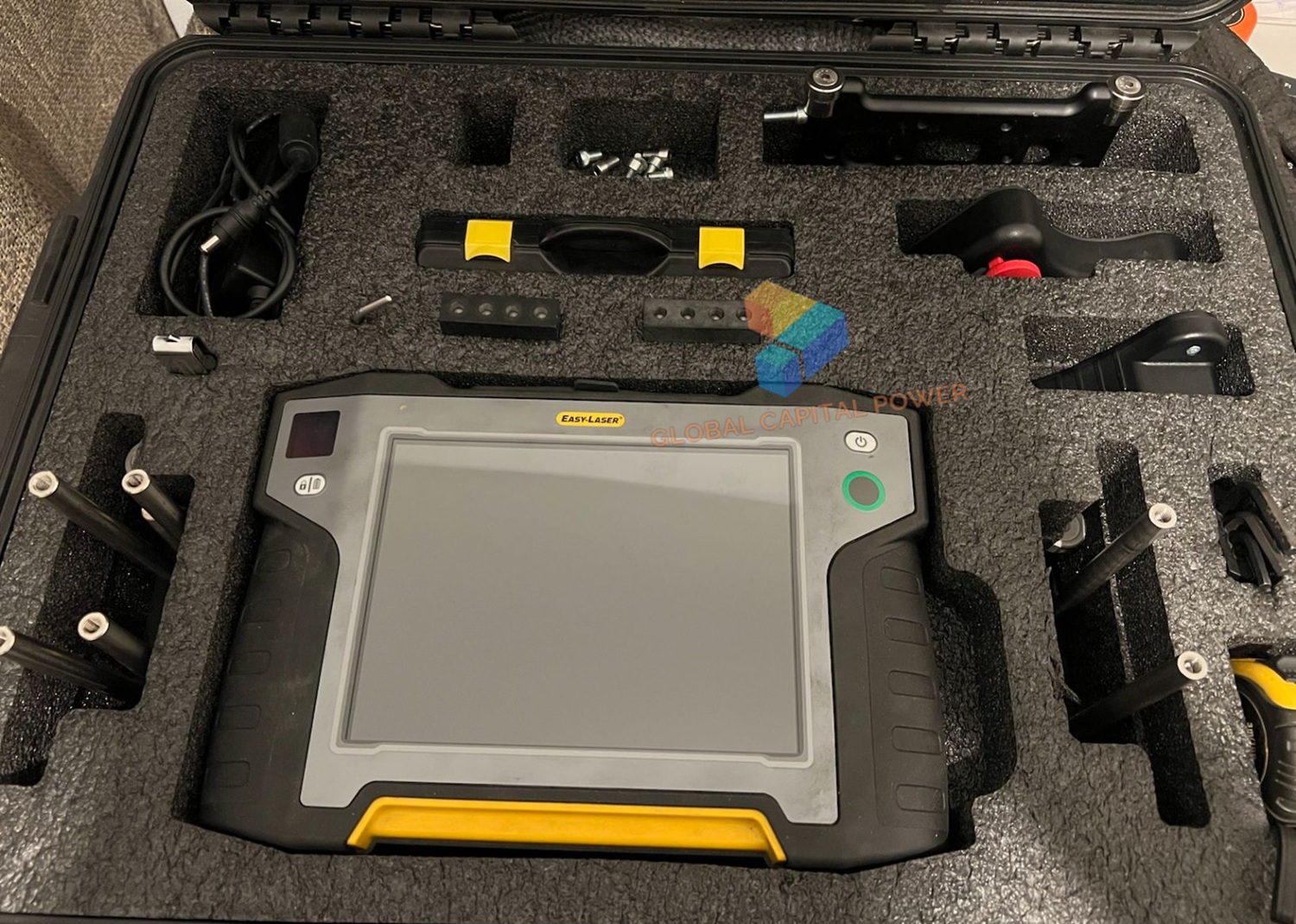

Purchased Included

1 x Measuring unit XT60-M
1 x Measuring unit XT60-S
2 x Shaft brackets with chains and rods
4 x Rods 60 mm
2 x Extension chains 900 mm long
1 x Measuring tape 3 m
1 x Hexagon wrench set
1 x Charger (100–240 V AC)
1 x DC split cable for charging
1 x DC to USB adapter for charging
1 x Quick reference manual
1 x Cleaning cloth for optics
1 x USB memory with manuals
1 x User documentation
