Dentsply Sirona DAC Universal S

Description

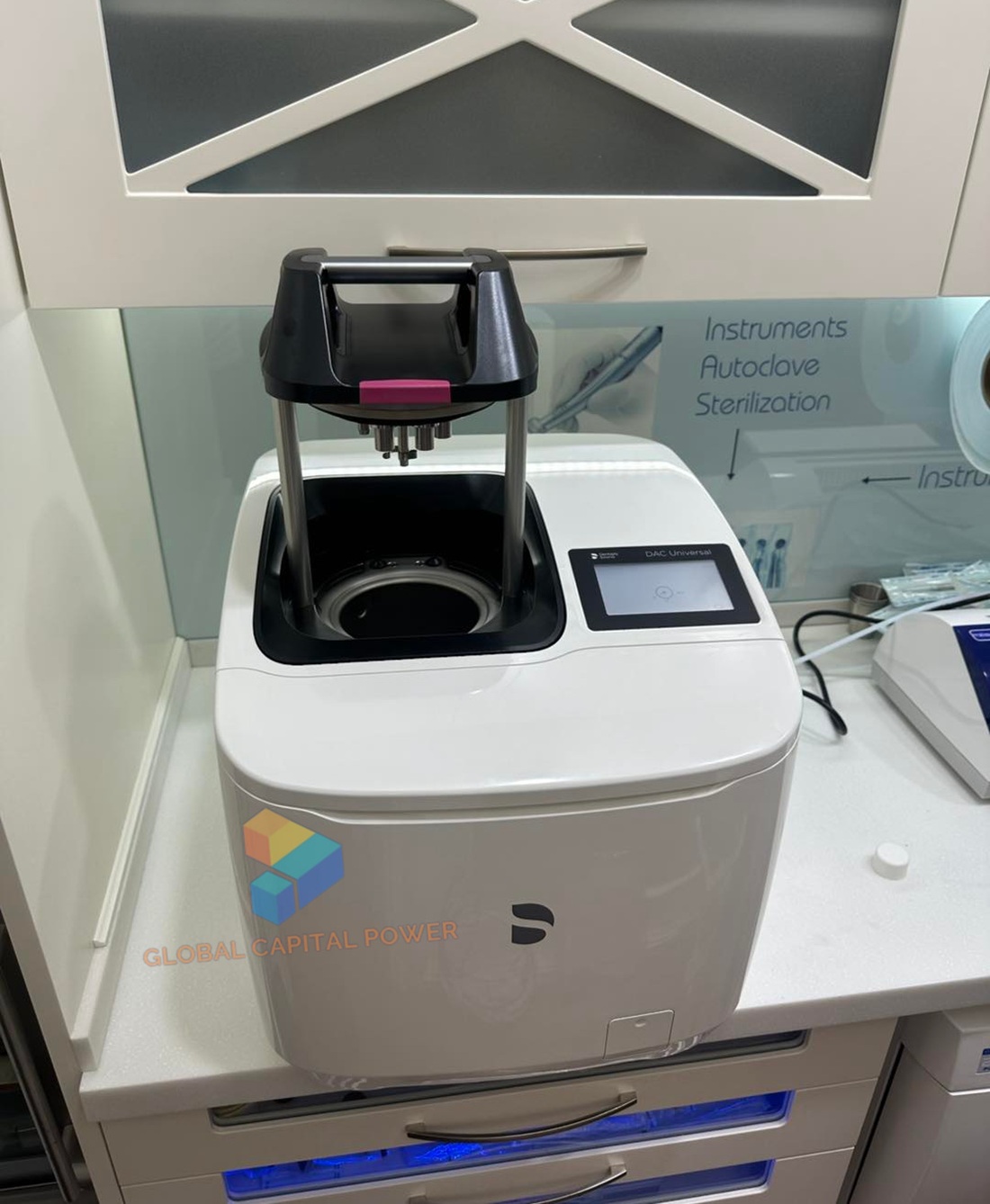

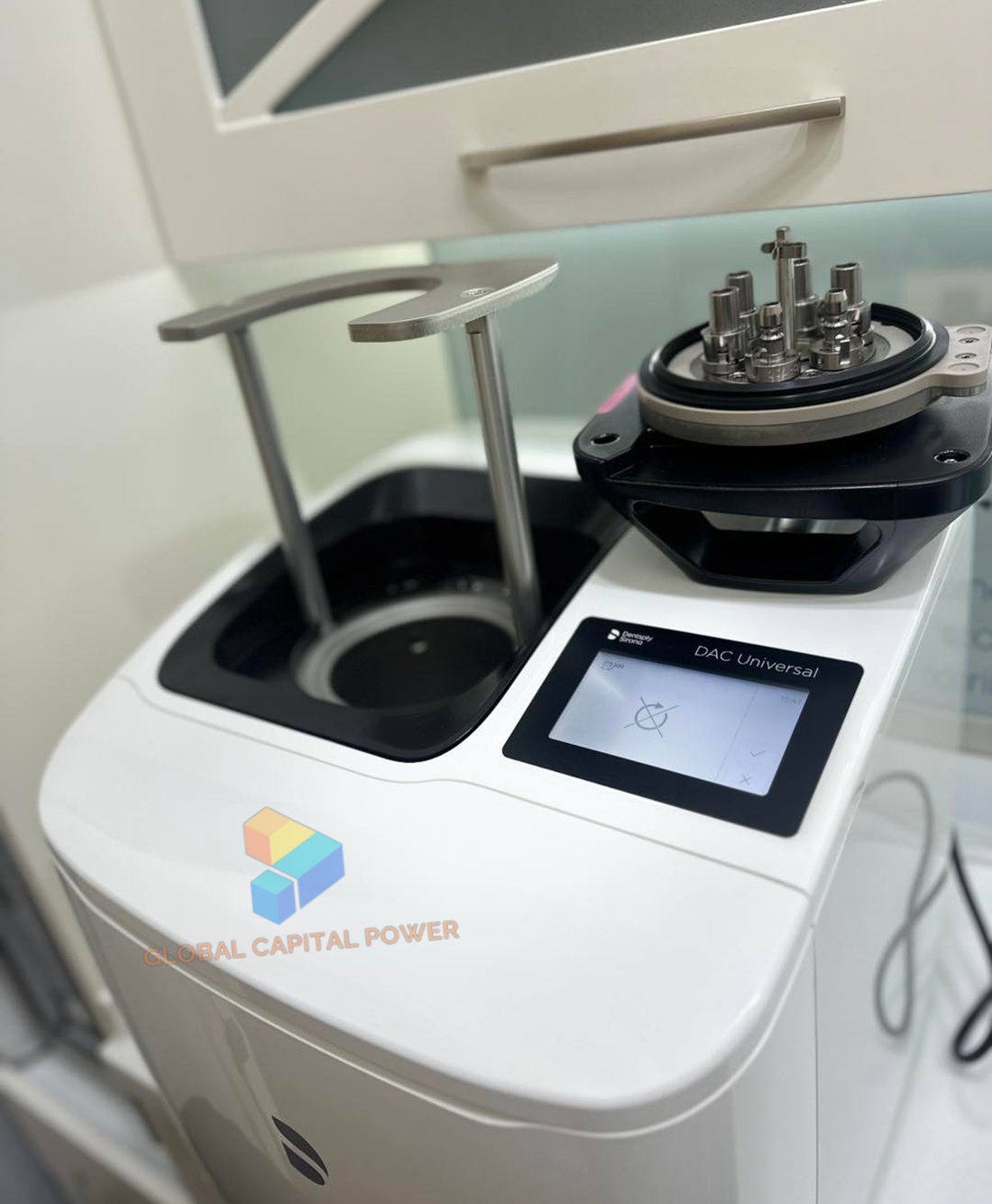

Dentsply Sirona DAC Universal S

Dentsply Sirona DAC Universal S system helps you to comply with stringent infection control standards at the touch of a button. Offering all-round protection for your patients and teams, this versatile decontamination solution will ensure you always have sterilised and reprocessed instruments that you can trust. From sonic handpieces and turbines to nozzles and tips, this DAC will have all of your most critical instruments sterilised and ready for use in just 21 minutes.

Features

Ease of use
New design, touch display with intuitive user interface, guided maintenance workflow Check & Clean.

Fully automatic reprocessing
Six instruments in approx. 21 minutes; internal and external cleaning, lubrication (if needed) and sterilization of straight and contra-angle handpieces, turbines, ultrasonic / sonic handpieces and tips, nozzles of multifunctional syringes and powder jet devices as well as powder jet handpieces.

Cost-effective and environmentally friendly reprocessing
Low operating and consumption costs – no use of cleaning and disinfection chemicals and only up to 900 ml water consumption per cycle. Low investment costs in instruments thanks to cooling at the end of the process and therefore quick return to service.

Legal certainty
Cleaning and sterilization process which can be validated. Cleaning process in accordance with EN ISO 15883-1 / -2*. Sterilization process in accordance with EN ISO 13060* and ISO 17665-1. Routine Control with chemical indicator class 5 and PCD (Process Challenge Device).

Technical Data

Power supply: 200 – 240V AC, 50/60Hz
Consumption: 1.3kW
Compressed air connection: inlet pressure 5.0 – 8.0 bar
Short-term air consumption: 60 NI/min. at 5 bar
Oil canister capacity: 0.2L
Water tank capacity: 2.3L
Water consumption: approximately 900ml/cycle (Pink Lid program)
Water quality: < 3 μS / cm
Dimensions with lid open (H x W x D): 59 x 40 x 42cm
Dimensions with lid closed (H x W x D): 40 x 40 x 42cm
Capacity: up to 6 instruments
Weight: 26kg
Minimum distance from the wall: 10cm
Minimum distance from the ceiling: 70cm
