Creaform HandySCAN MAX Elite 3D Scanner

Description

Creaform HandySCAN MAX Elite 3D Scanner

Creaform HandySCAN MAX Elite 3D Scanner allows obtaining digital models of objects with laboratory accuracy directly in production. The latest HandySCAN MAX series represents an evolution of the well-established HandySCAN 3D scanners, developed for high-precision measurement of large and complex objects typical for the aerospace, transportation, energy, mining, and heavy industries. This scanner combines uncompromising accuracy, versatility of application, and high mobility.

Fast 3D Scanning for Large Parts with Extended Range

Due to its 38 laser lines and large scanning area, the HandySCAN 3D|MAX Series is the 3D scanner for measuring large part sizes—up to 15 m (50 ft)—quickly and easily, providing metrology-grade results in mere minutes.

Its Flex Volume feature offers an adjustable, flexible working distance—from 0.3m (1 ft) to 2.5m (8.2 ft). This means that the user can scan smaller areas with remarkable quality at a short distance and measure large parts at very high speed from a longer distance.

Application :

Aerospace industry.
Transportation machinery manufacturing.
Energy.
Mining industry.
Heavy machinery manufacturing.
Medicine.
Scientific research and education.
Non-destructive testing.
Capital repair, maintenance, and repair (MRO).
Quality control and assurance.
Reverse engineering.
Product development and design.

Technical Specifications

38 blue laser lines
Accuracy: 0.075 mm.
Volumetric accuracy: 0.075 mm + 0.010 mm/m.
High data acquisition speed: 2,250,000 points/s.
High level of detail.
Device weight: 1.22 kg.
Self-positioning with dynamic referencing.
Fast setup and readiness for operation.
Possibility of scanning in motion, both indoors and outdoors.

Advantages

Smart Resolution: optimization of scanning resolution for various surfaces and parts.
Automatic Shutter: simplifies the scanning process and ensures stable results.
Live Mesh Visualization: real-time display of the scanning process for data quality control.
Artificial Intelligence-based Target Detection: increases positioning and tracking accuracy.
Real-time Feedback: instant information about the scanning process.
Mesh Improvement: automatic optimization of the 3D model.
High Measurement Accuracy: reaches 0.075 mm.

Fast Scanning of Large-Sized Objects: equipped with 38 blue laser lines and provides a large capture area, allowing efficient scanning of parts up to 15 meters in size with metrological accuracy in a short time.

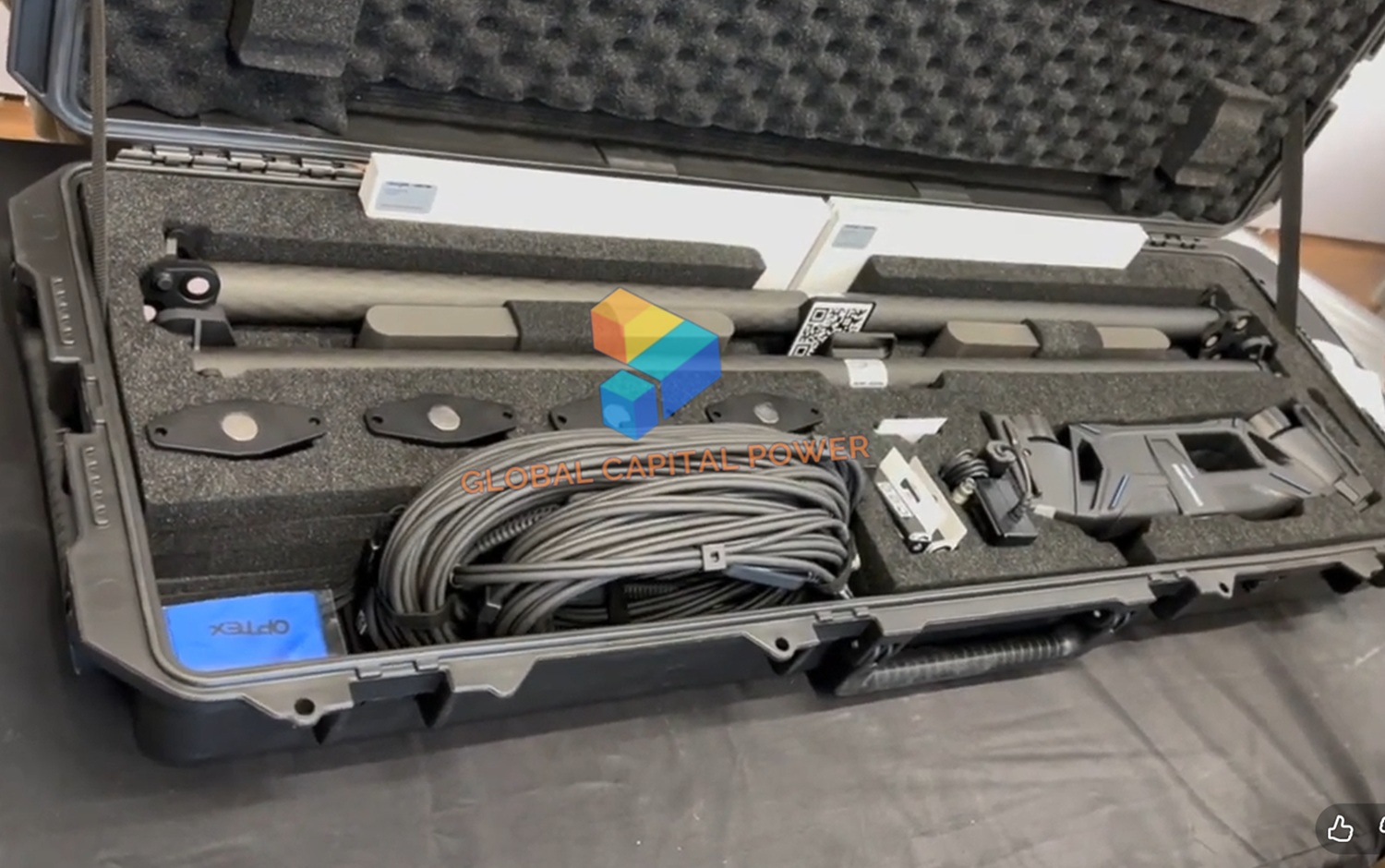

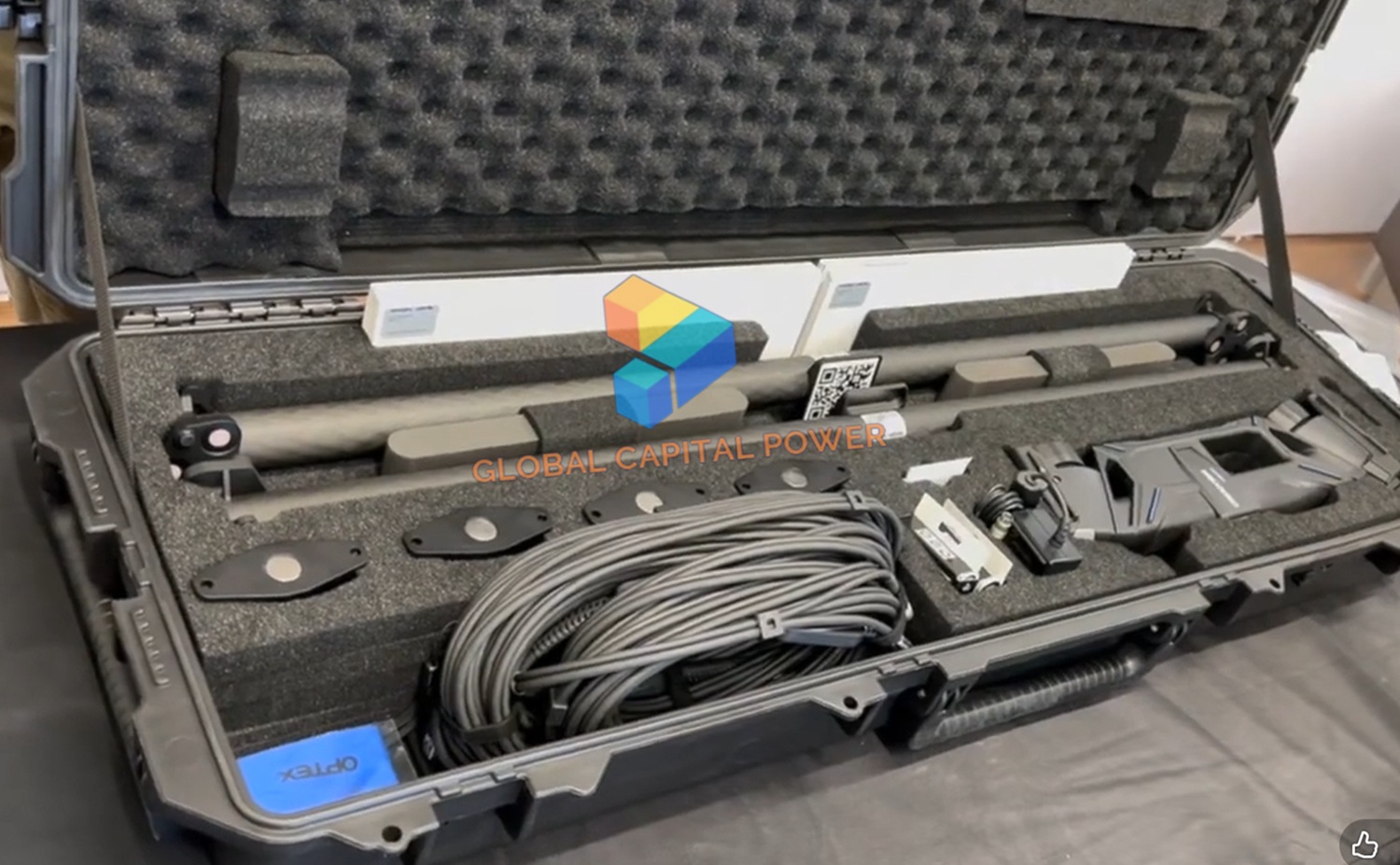

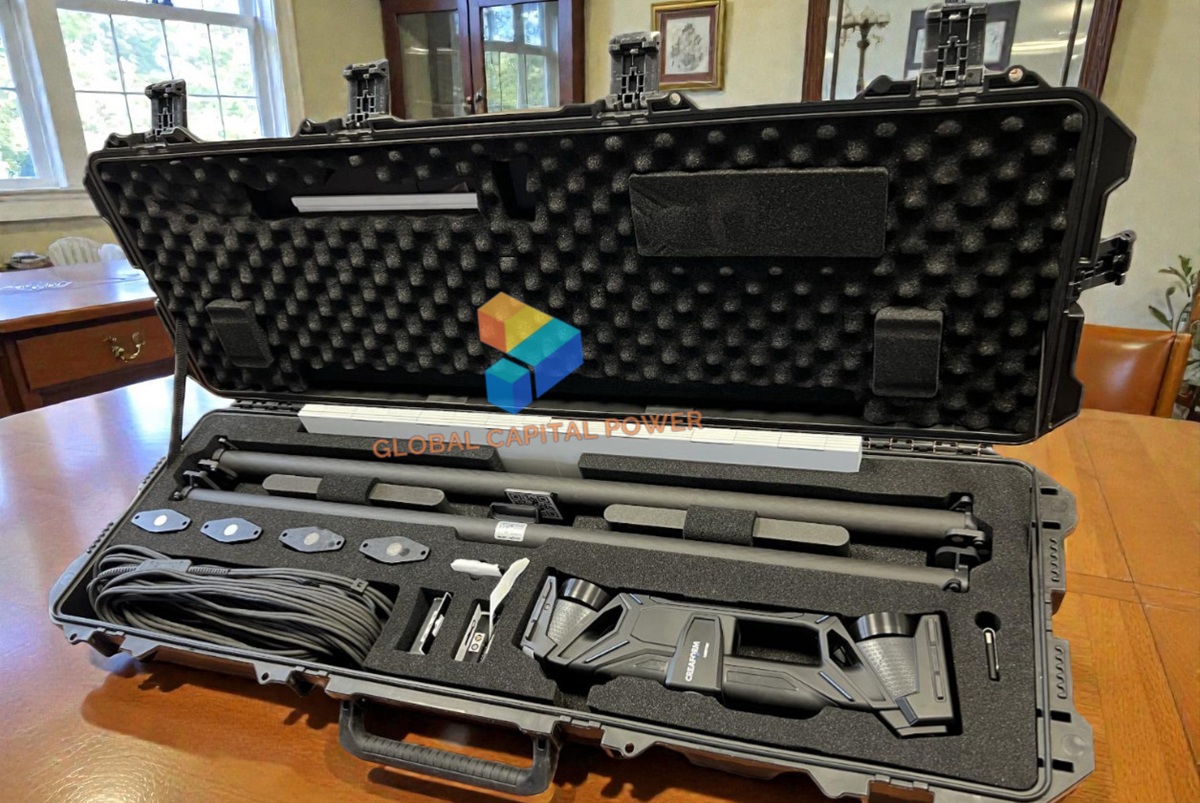

Included

HandySCAN Black Elite Limited Portable 3D Laser Scanner
VXelements data acquisition software
Carrying Case
8 Meter Custom USB Cable
Power Supply
2 Calibration Ball Bars
Reflective Adhesive Scanning Targets
Interactive E-learning Subscription
12-month Customer Care Program
