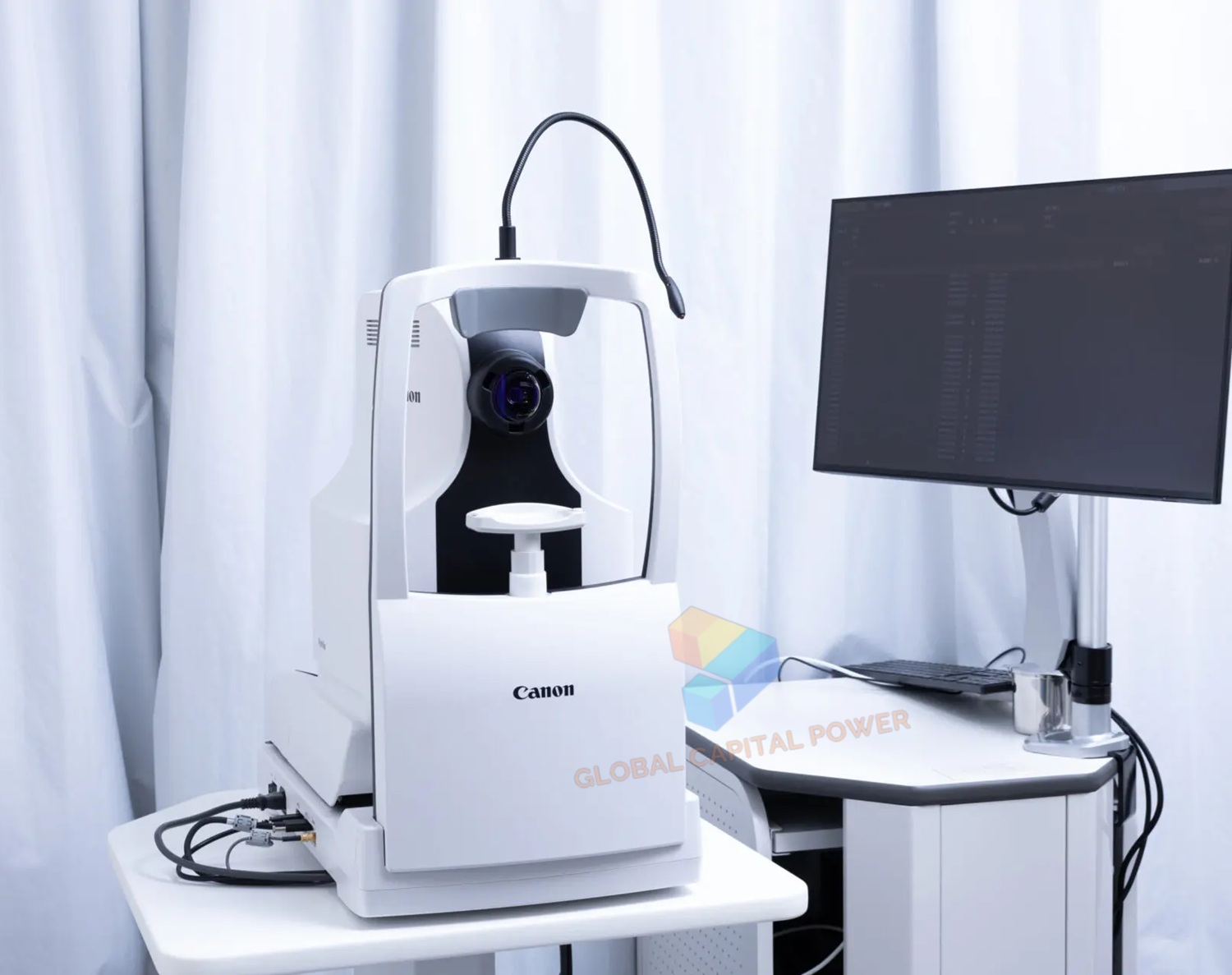

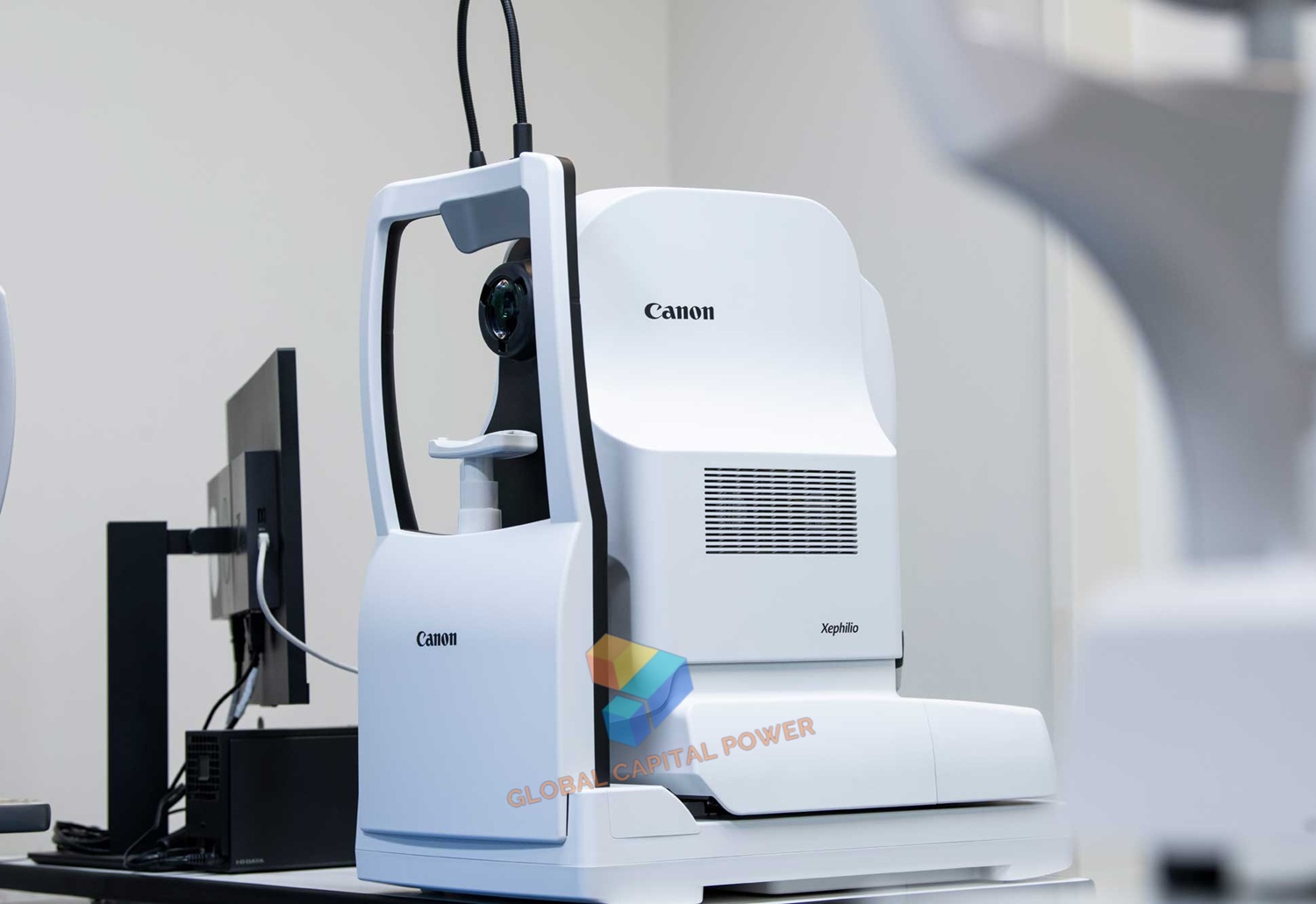

Canon Xephilio OCT-S1

Description

Canon Xephilio OCT-S1

Canon Xephilio OCT-S1 revolutionary swept source technology allowing you to capture wide-field images of up to 23 mm in a single scan. Xephilio OCT-S1 enables superior penetration of dense objects and provides outstanding tomographic images. Intelligent Denoise, the system’s Deep Learning AI technology, offers a new quality of OCTA images in a single scan with greatly reduced noise, increased detail and improved visibility within just seconds.

New AI Segmentation using Deep Learning

Thousands of tomograms, were manually segmented and used to generate the Training Data Set . The accuracy of determining the exact layer boundaries has been greatly improved and the number of detected layer boundaries is changed from 6 to 8.

Single Capture Wide Field OCT Angiography

The Canon RX Capture software for OCT-S1 includes OCT Angiography already as standard! Wide field OCTA images of 23 x 20 mm can be obtained with a single acquisition. Visualization of Non – Perfusion areas over a very large surface is possible.

Wide Field imaging

With Xephilio OCT-S1 wide-field images of up to 23 mm width can be acquired in just one single scan, equaling an incredible 80° viewing angle.

Visualise the Microvasculature of the Retina with Angio Expert

OCT-S1 Angio Expert does not require fluorescein injection or pupil dilation, and the examination takes only seconds. SLO-based real-time tracking minimises artefacts. Sophisticated image post-processing with 3D projection artefact removal enables excellent image quality in every scan. Even the smallest blood vessels can be observed in 2D and 3D. Angio Expert software provides a comprehensive set of manual and automated analyses to cater to every individual user’s need.

Spesification

Scan Speed	Max. 100,000 A scan/second
Horizontal Resolution	30μm
Axial Resolution	8μm
Light Source Wavelength	OCT: 1060nm, SLO: 780nm
Small Pupil Size	Φ3.0mm
Working Distance	20mm
Retina Observation Method	Flying spot SLO
SLO FOV (H x V)	23mm x 20mm
OCT Scan Width	3~23mm
OCT Scan Depth	5.3mm
Internal Fixation	“x” shape display on retina: green
External Fixation Light	EL-1 (option)
Dimension and Weight	Dimension (W x D x H)	510mm x 330mm x 590mm
	Weight	35kg (main unit only)
OCT Scan Parameters	Retina scan mode	Custom 3D	512 x 512 1024 x 128 1024 x 1024 2048 x 512 Vertical/Horizontal
		Multi-cross	1024 x 1024 2048 x 2048 4096 x 4096 Averaging: 1–50
		Cross	1024 x 1024 2048 x 2048 4096 x 4096 Averaging: 1–200
		Radial	1024 2048 4096 12 directions (15 degree intervals) Averaging: 1–50
		OCTA	Small: 232 x 232 (3 x 3 ~ 8 x 8mm) Medium: 464 x 464 (4 x 4 ~20 x 20mm) Large: 696 x 696 (6 x 6 ~ 20 x 20) Super Large: 928 x 807 (23 x 20mm)
