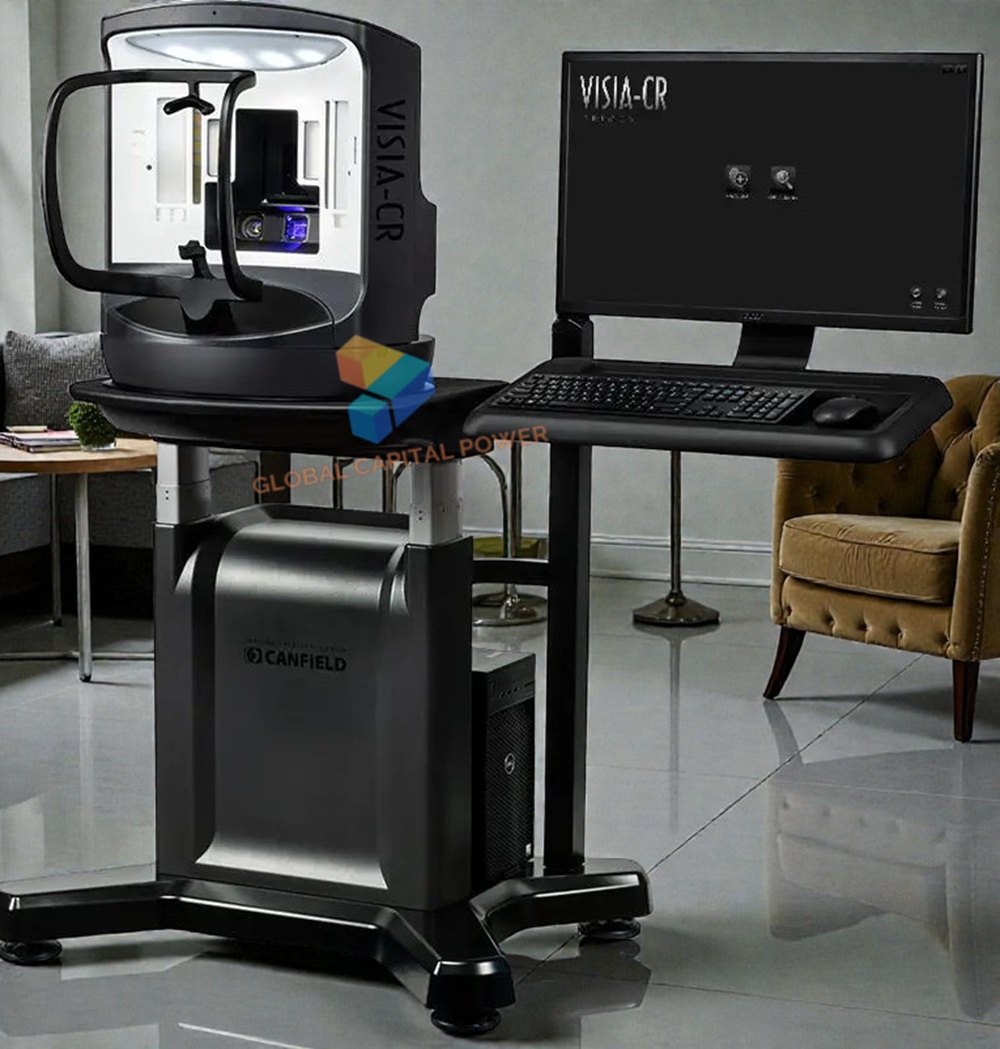

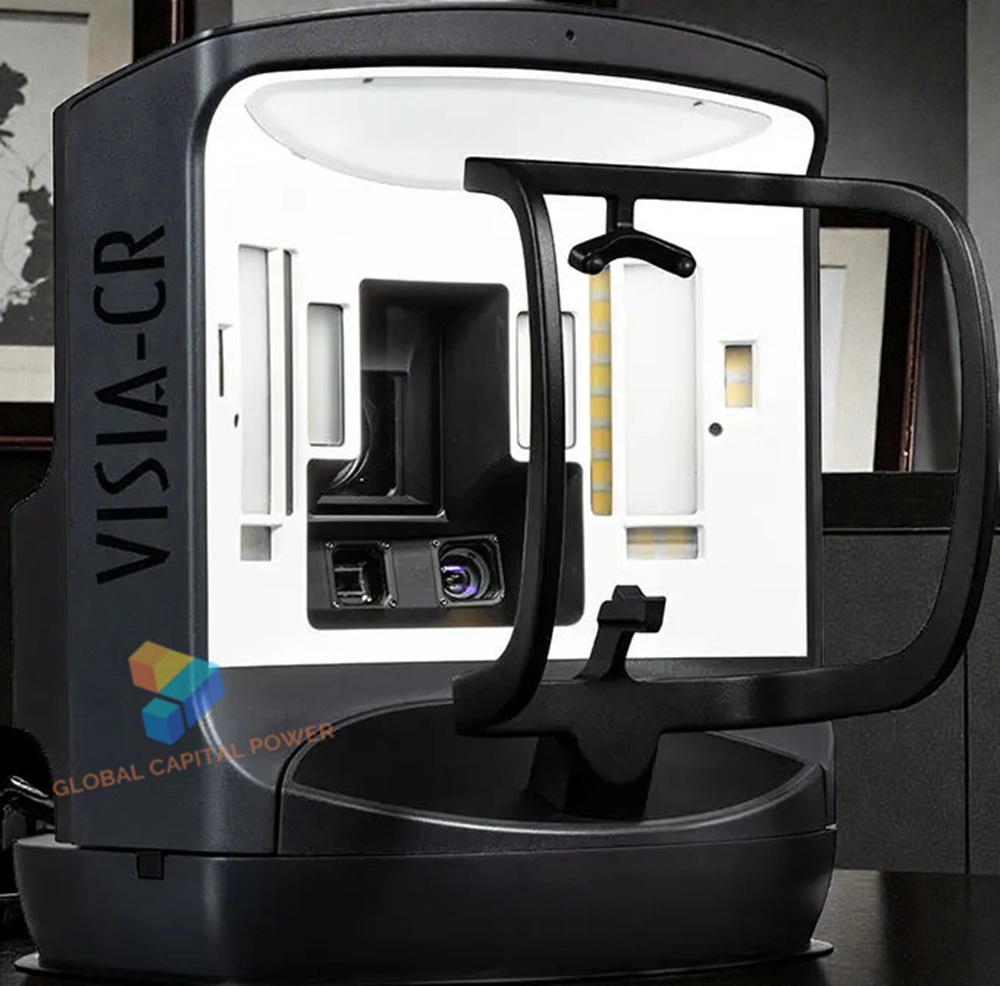

Canfield Visia-CR Skin Facial Imaging System

Description

Canfield Visia-CR Skin Facial Imaging System

Canfield Visia-CR Skin Facial Imaging System is a cutting-edge skin imaging system tailored for researchers and dermatologists seeking precise, repeatable results in clinical and laboratory settings. With multi-modal imaging—including polarized, UVA, and fluorescence capabilities—and high-resolution 3D texture analysis, VISIA CR delivers unparalleled insight into skin structure, pigmentation, and microbial activity. This advanced system supports clinical studies and product development with consistent, high-quality data, making it an indispensable tool for skincare, cosmetic, and pharmaceutical research.

Standard Light: Provides baseline, high-quality images ideal for general skin assessments.

Raked Light: Enhances visibility of surface texture and fine lines, revealing skin topography with greater clarity.

Cross Polarized: Minimizes glare from the skin surface, capturing sub-surface pigmentation and vascularity for a deeper view.

Parallel Polarized: Highlights fine texture and topographical details on the skin, excellent for examining surface conditions.

Blue Absorption: Targets pigmentation and vascular features, offering enhanced contrast for specific skin concerns.

Blue Fluorescence: Detects microbial activity and porphyrins, valuable for assessing acne and microbial-based skin conditions.

UVA Absorption: Penetrates deeper skin layers to assess pigmentation issues and UV-related damage.

Primos 3D: Captures volumetric and roughness data, ideal for evaluating skin texture and measuring changes over time.

Strengthen your claims with validated imaging tools.

Now includes PRIMOS 3D and integrated analysis.

7 lighting environments plus 3D PRIMOS in one fast capture sequence

Automatically capture Standard, Raked, Cross-Polarized, Parallel-Polarized, Narrow Band Blue Absorption, Narrow Band Blue Fluorescence, and UVA absorption lighting modes as well as 3D PRIMOS.

PRIMOS 3D fringe projection capture

By capturing the full face you are able to confirm standardization in both position and expression, providing greater confidence in your claims.

Clinical workstation equipped with motorized lift

Subjects may be photographed while standing or seated

More natural/repeatable posture and increased efficiency/throughput

Vibration-dampening pads for fixed installation

Pre-wired for a clean, professional, high-tech look

Includes mounted workstation-class imaging PC, 27-inch 4K display, and integrated keyboard tray
