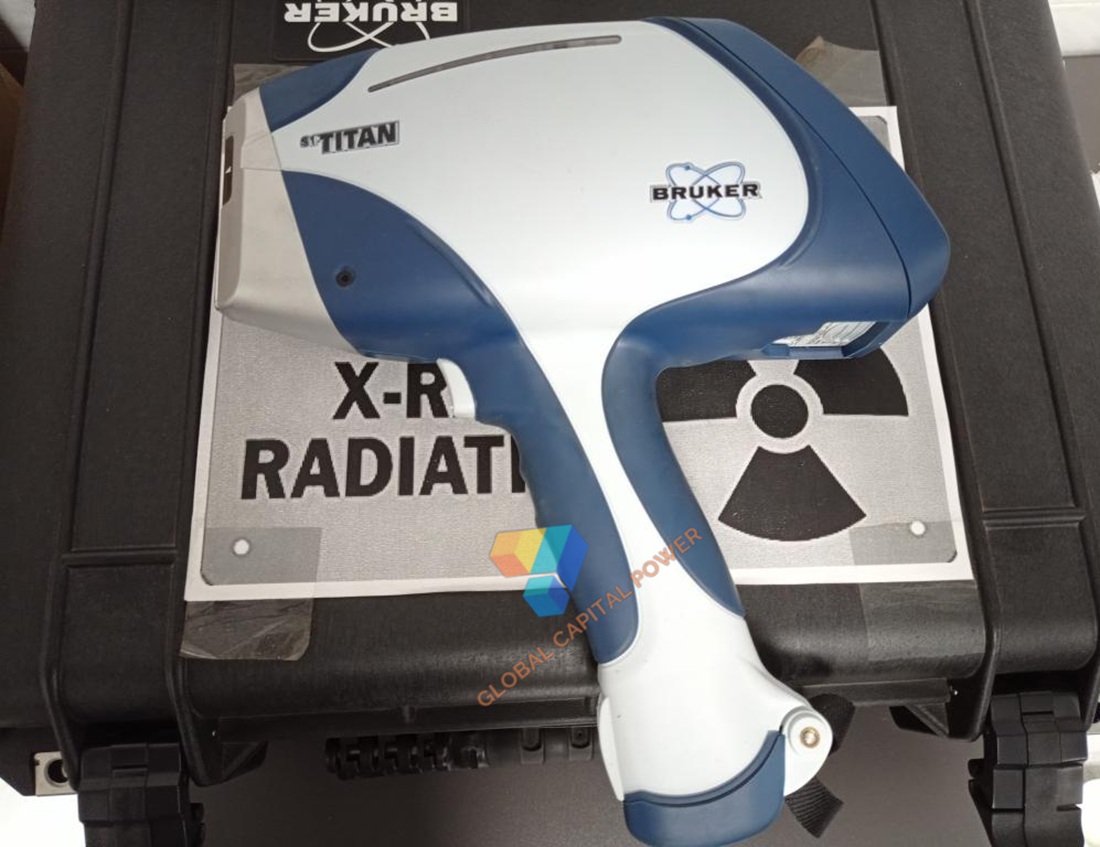

Bruker S1 Titan 800 XRF Analyzer

Description

Bruker S1 Titan 800 XRF Analyzer

Bruker S1 Titan 800 XRF Analyzer from Bruker stands out with its capacity to analyze light elements such as magnesium, aluminum, and silicon swiftly without requiring a vacuum or helium atmosphere a significant advantage for a device of its class. This not only saves time but also empowers users to make prompt decisions based on precise data.

Features:

Available calibrations include: alloy, gold, and precious metals, bulk material (E‐scrap and catalytic converters), soil, mining, restricted materials, and customer specific
Superior large area graphene window SDD detector technology
Superior count rates and resolution (compared to previous generation SiPIN instruments)
Faster than previous generations
Lower detection limits
Easy analysis of light elements, such as magnesium, aluminum, and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 600 only)

Technology

The S1 Titan 800 features an integrated touch-screen color display, 50 kV X-ray tube, SMART Grade timing (for fastest and safest alloy identification), SharpBeam technology, Silicon Drift Detector (SDD) with CUBE™ technology (operating at very high count rates and thus provides excellent precision with short measurement times), and an extremely tough housing that is sealed against humid and dusty environments (rated IP54). The graphene Window SDD provides fast and precise analysis with advanced detector technology.

Connectivity

The analyzer also comes with Bluetooth, Wi-Fi and USB connectivity. Data can be stored internally on the instrument or a USB flash drive.

Integrated Camera

The S1 Titan 800 is equipped with an integrated camera (640 x 480 pixels) to provide sample visualization and accurate location of the measurement spot. There is a small spot option for the S1 Titan 800 that provides a small measurement area for the isolation of small features being tested.

Software

Each S1 Titan 800 ships with Bruker’s Instrument Toolbox, the PC software suite for controlling and communicating with the analyzer. The unit can be remotely controlled via Wi-Fi or USB so you can communicate with the instrument and manipulate data. Included are a report generator, spectrum viewer, grade table editor and the ability to install software & calibration updates.

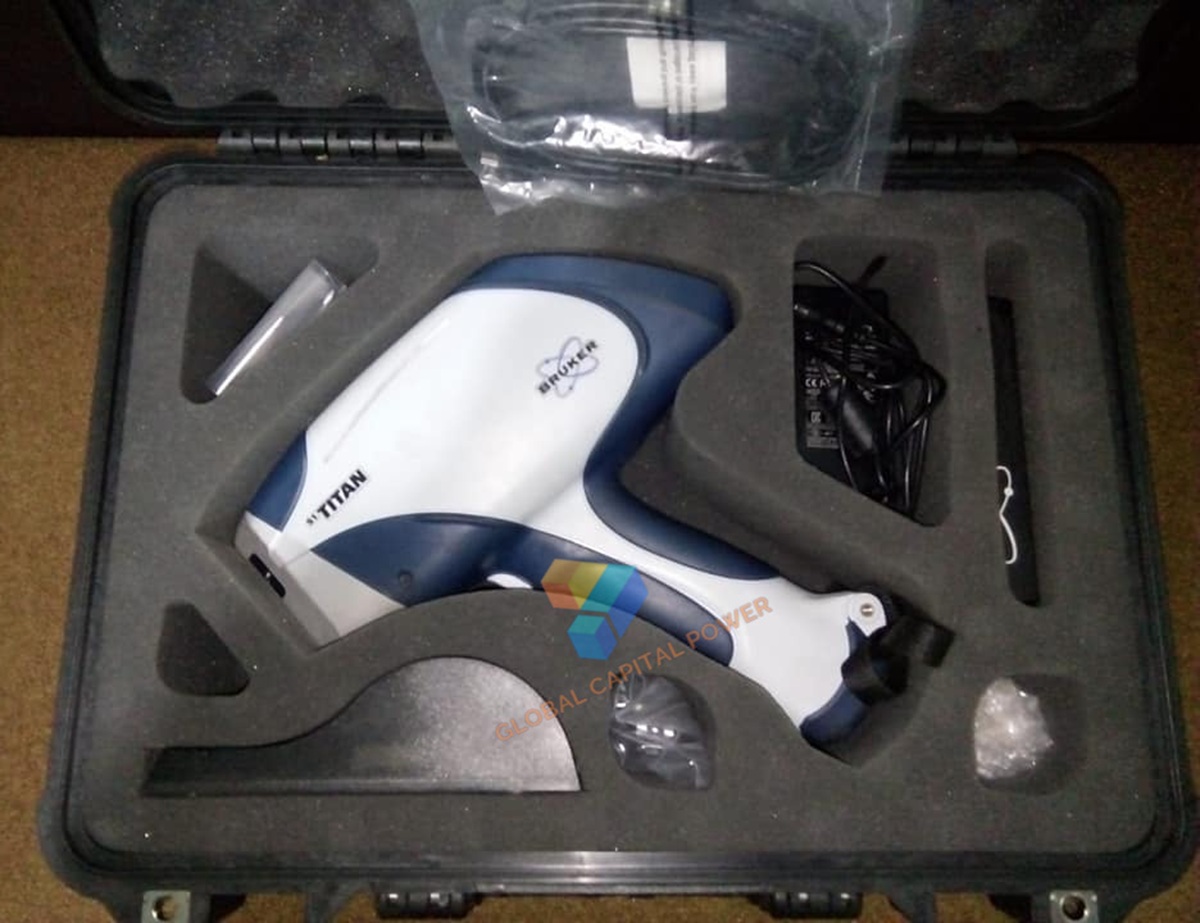

Package Includes:

S1 Titan 800 Handheld XRF Analyzer
Ultralene protective windows
7.2V Li-Ion instrument battery
Battery Charger
Power Cable
AC Adapter
USB Flash Drive & Remote Cable
Various Check Samples
Software
User Manual
Calibration Certificate
Portable desktop stand
Hard Case
